Ships by freight. This item is too large for parcel delivery. After you order, we'll contact you within 1 business day with the freight cost and delivery options (liftgate, residential). Your order ships only after you approve the quote.
Need installation or sizing help? Call (888) 831-0450 or ask an expert.
Secure checkout
- Tier 1 automotive-grade LFP cells, 314 Ah modules
- Multi-layer active fire suppression
- Built-in HVAC and module-level fans
- IP55 outdoor cabinet, C4-H corrosion resistance
- 192-241 kWh per cabinet
- Remote monitoring via Pytes Battery Cloud
- System 5-year, battery 10-year warranty
Ships by LTL freight. Too large for parcel delivery. Questions on freight? Call (888) 831-0450.
We accept

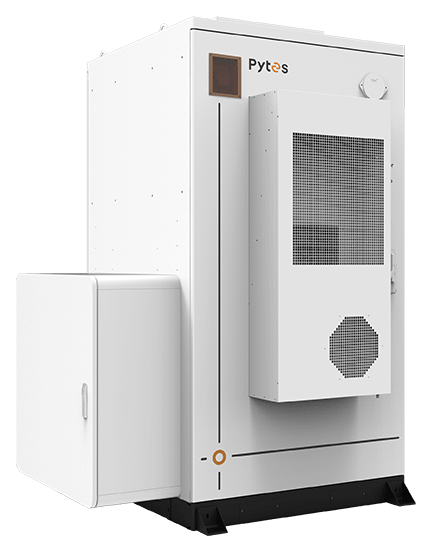

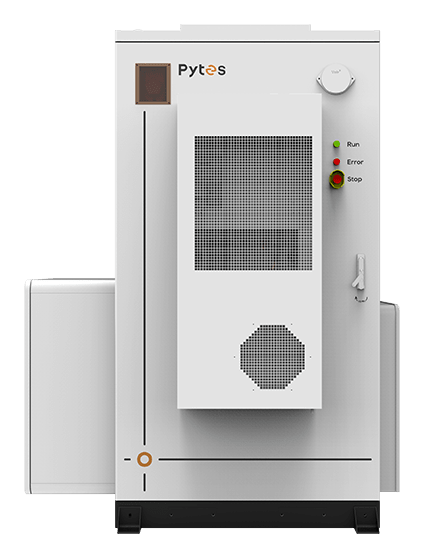

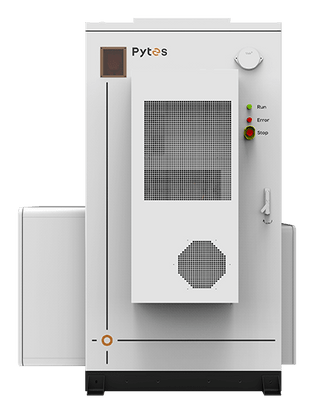

Pytes' top commercial and industrial storage system: an IP55 outdoor DC cabinet built on large 314Ah automotive-grade LFP modules, which means fewer connections and maximum density. It integrates multi-layer active fire suppression, HVAC thermal management and a combiner box with breaker, and any major inverter can mount directly on its side. It comes in three standard configurations to match inverter voltage windows and scales to MWh level for hotels, data centers, agriculture, utilities, C&I facilities and VPPs.
Highlights
- Safe: Tier-1 LFP cells, multi-level BMS, 4-level fire protection (gas detection and ventilation, aerosol suppression, pressure relief, fire hose port)
- All-weather: module-level fans plus 5kW HVAC cooling and 2.5kW heating, IP55, C4-L anti-corrosion
- Scalable to MWh-level capacity
- Smart: PYTES Battery Cloud remote monitoring
- Flexible: 3 configurations; universal inverter mounting structure
Configurations
| 15S1P | 241.152kWh, 120.57kW, 672–864V, 157A rec. / 205A peak, 5,454 lbs |
| 12S1P | 192.912kWh, 96.45kW, 537.6–691.2V, 157A / 205A, 4,667 lbs |
| 7S2P | 225.075kWh, 112.53kW, 313.6–403.2V, 157A×2 / 205A×2, 5,388 lbs |
Specifications
| Battery module | 51.2V, 314Ah, 16.076kWh, 262 lbs |
| Cabinet dimensions (W × D × H) | 69 × 57 × 93 in |
| Operating temperature | Charge 32–131°F; discharge -4–131°F |
| Cycle life | 6,000 cycles |
| Certifications | UL 9540 Ed.3 (2023), UL 9540A (2025), UL 1973, UN 38.3 |
| Code compliance | NFPA 68 / 69 / 855; CEC, SGIP, OGPe |
| Warranty | System 3 years (2-year extension available); battery modules 10 years or 6,000 cycles |
Contact us for a project-specific configuration and freight quote.
| Manufacturer | Pytes |
|---|---|
| Model Number | HV48300 Max SE outdoor C&I cabinet |
| BMU | LFP 51.2 V 314 Ah, 16.076 kWh, 262.11 lb (119.5 kg) each |
| Configurations | 12S1P 192.92 kWh / 14S1P 225.07 kWh / 7S2P 225.07 kWh / 15S1P 241.15 kWh |
| 12S1P | 96.46 kW, 558-681.6 V |
| Recommended / Peak Current | 157 A / 205 A (per string) |
| Cabinet Dimensions (W x D x H) | 69 x 57 x 93 in (1750 x 1450 x 2350 mm) |
| Weight | 4,667 lb (2,117 kg) at 12S1P |
| Ingress Protection | IP55; anti-corrosion C4-H |
| HVAC | 5000 W cooling / 2500 W heating |
| Fire Safety | gas detection + ventilation, aerosol suppression, pressure relief, fire hose connection |
| Communication | CAN / RS485 / RS232 / Dry Contact / WiFi |
| Cycle Life | 6,000 cycles |
| Certifications | UN 38.3, UL 1973, UL 9540A (2026); UL 9540 Ed.3 expected Q1 2027; NFPA 68/69; CEC, SGIP, OGPe |
| Warranty | System 5 years; battery 10 years or 6,000 cycles |
Specifications are from the manufacturer and may change. Questions? Call (888) 831-0450.
Pytes Battery 10 years or 6,000 cycles; system 5 years warranty
| System (cabinet, excl. BMU) | 5 years |
|---|---|
| BMU and BCU | 10 years or 6,000 cycles |
Download: Pytes HV48300 Max Series Warranty (US)
Manufacturer warranties are provided by the manufacturer. Keep your invoice as proof of purchase. Questions about a warranty claim? Call (888) 831-0450.
