- 18kW PV input, 12kW continuous AC output
- 3 MPPTs with 600 VDC max input
- Split-phase 120/240V or 120/208V output
- Parallel up to 10 units
- 200A grid bypass, generator input
- NEMA 4X outdoor-rated enclosure
- Built-in Wi-Fi monitoring via EG4 app
- 10-year limited warranty
Ships by parcel (UPS / FedEx).
We accept

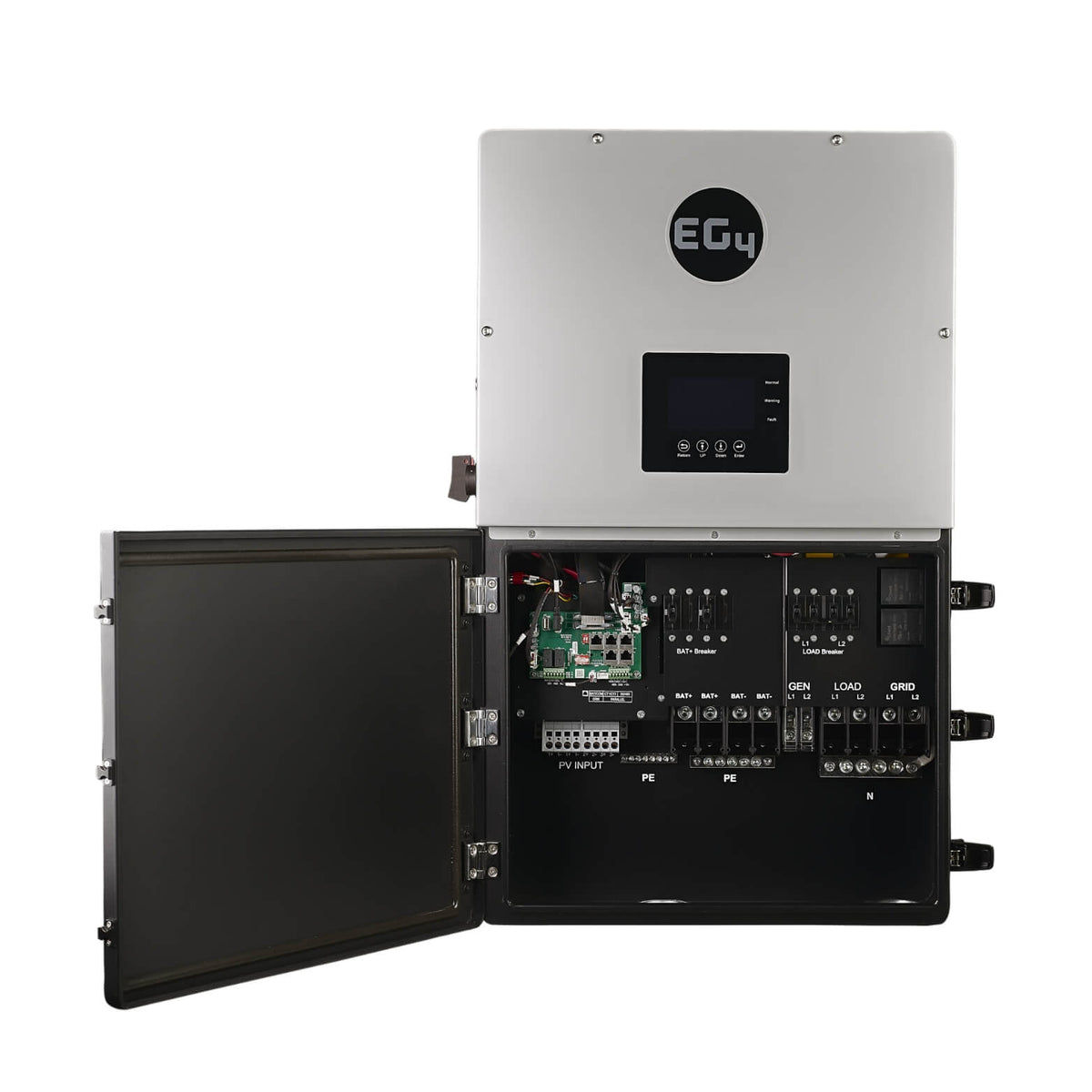

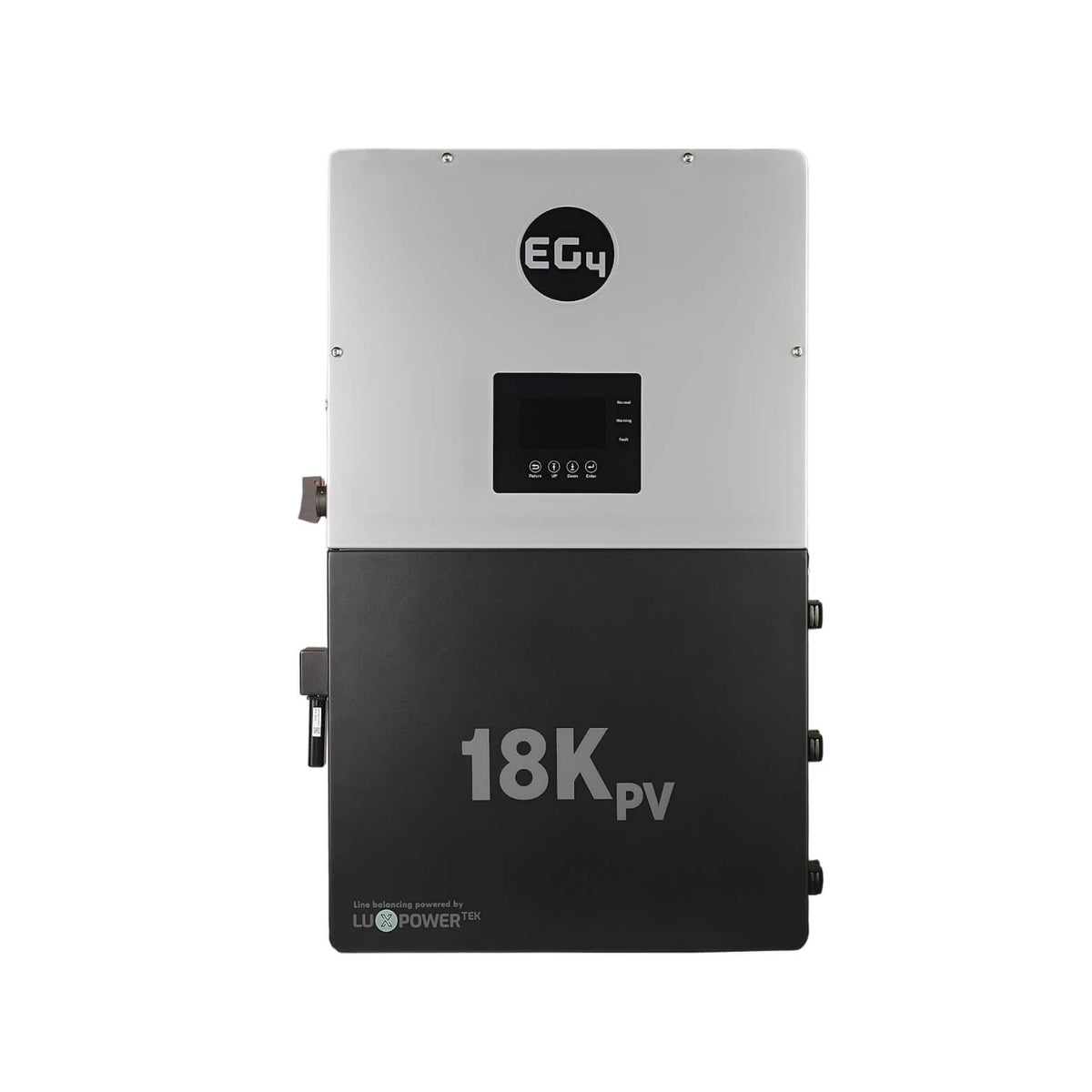

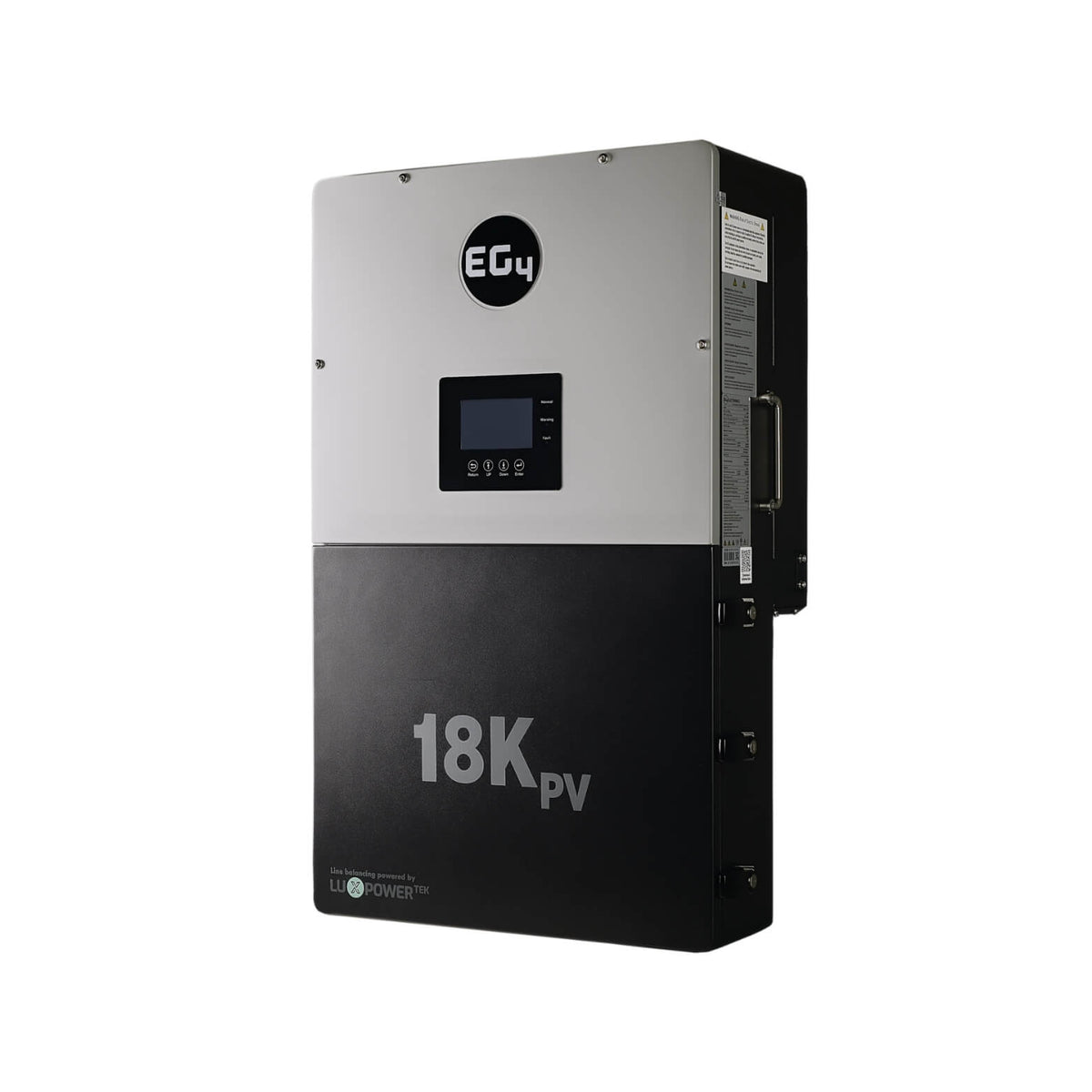

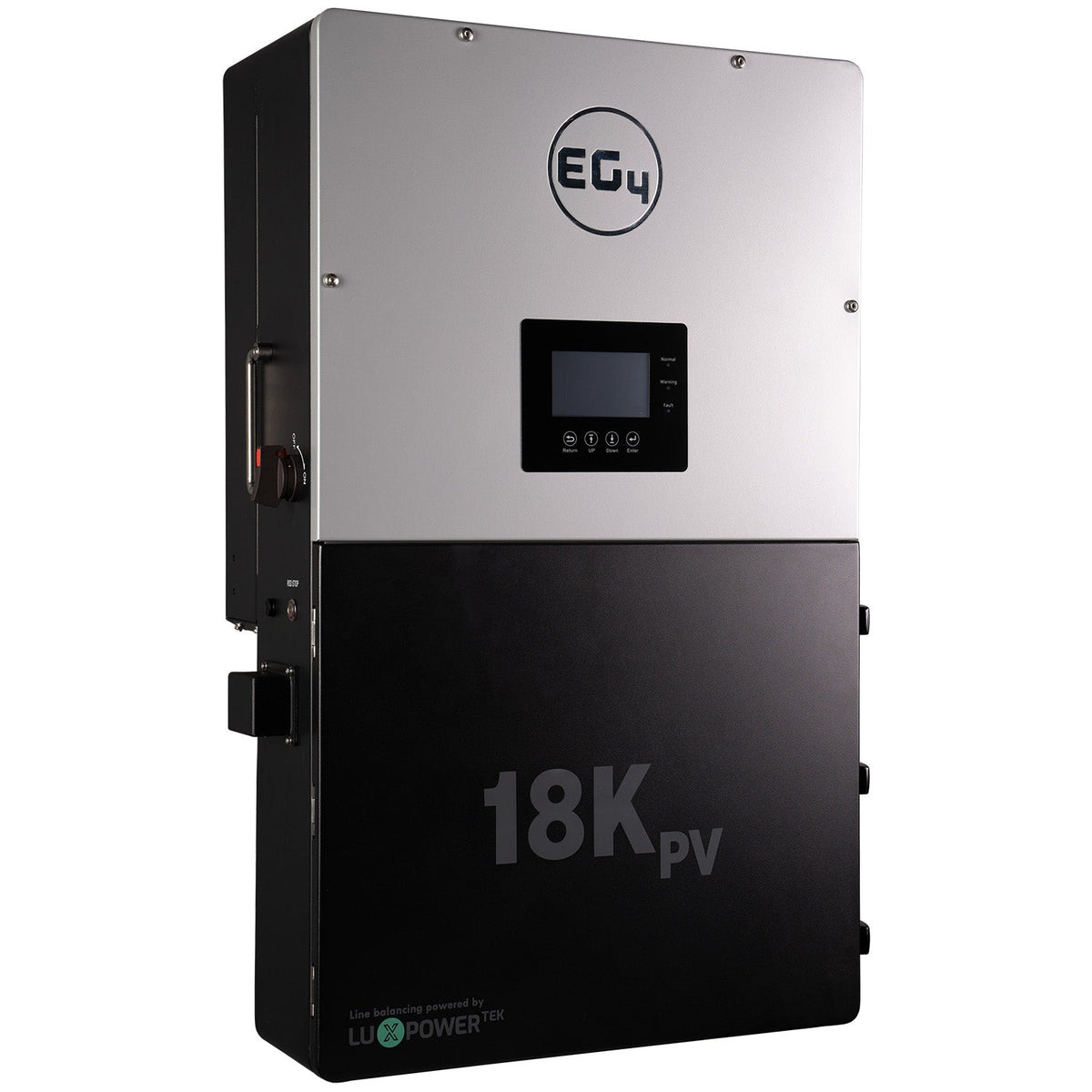

The EG4 18kPV (model EG4-18kPV-12LV) is EG4's proven 48V split-phase hybrid inverter. It combines solar charge control, battery charging and inverter output in one outdoor-rated box. It delivers 12kW of continuous 120/240V power, accepts up to 21kW of recommended solar across three MPPTs, and charges batteries at up to 250A. It can run grid-tied, grid-assisted or fully off-grid, and up to 10 units can be paralleled for larger homes and light commercial sites.
Highlights
- All-in-one: MPPT charge controllers, battery charger and inverter in a single unit, with no separate charge controller or transformer
- Whole-home output: 12kW continuous at 120/240V split phase for essential and larger household loads
- High solar capacity: 21kW recommended PV, 600VDC max, 3 MPPTs
- Flexible operation: grid-tied, grid-assist or off-grid; also works as battery backup without solar
- Expandable: parallel up to 10 units
- Smart energy management: balances solar, battery and utility power automatically
- Remote monitoring: view performance, change settings and update firmware from the EG4 app and monitoring portal
- Outdoor rated: NEMA 4X / IP65 enclosure for indoor or outdoor mounting (keep out of direct sun)
- Battery communication: closed-loop with EG4 48V batteries and select compatible 48V lithium brands
- Certified: ETL/cETL listed to UL, CSA, IEEE and NEC requirements
Ideal for
Whole-home backup, off-grid homes, cabins, workshops, RV properties, agricultural buildings, and homeowners who want to cut grid dependence.
Specifications
| Rated output | 12,000W |
| Recommended PV input | 21,000W |
| Max PV voltage | 600VDC |
| MPPTs | 3 |
| Battery voltage | 48VDC |
| Output voltage | 120/240V split phase |
| Max charging current | 250A |
| Parallel | Up to 10 units |
| Enclosure | NEMA 4X / IP65 |
| Communication | Wi-Fi, EG4 Monitor platform |
| Dimensions | 34.3 × 20.5 × 11.2 in |
| Weight | 121.25 lbs (55 kg) |
| Warranty | 10-year EG4 manufacturer warranty |
| Manufacturer | EG4 Electronics |
|---|---|
| Model Number | 18KPV-12LV (IV-12000-HYB-AW-00) |
| Rated AC Output | 12,000W @ 240VAC (10,400W @ 208VAC) |
| Max Utilized PV Power | 18,000W (21kW recommended max array) |
| PV Input Voltage Range | 100-600 VDC |
| MPPTs | 3 (140-500 VDC operating) |
| Battery | 48 VDC nominal (40-60 VDC), 250A max charge/discharge |
| AC Output | 120/240VAC or 120/208VAC split phase |
| AC Bypass | 200A max (90A generator) |
| CEC Efficiency | 96.9% |
| Enclosure | NEMA 4X |
| Operating Temp | -13 to 140°F (-25 to 60°C) |
| Dimensions (HxWxD) | 34.3 x 20.5 x 11.2 in (870 x 520 x 285 mm) |
| Weight | 121 lb (55 kg) |
| Certifications | UL 1741 SA/SB, PCS CRD, CSA C22.2, IEEE 1547, Rule 21, FCC Part 15 B |
| Warranty | 10 years |
Specifications are from the manufacturer and may change. Questions? Call (888) 831-0450.
EG4 10-year limited warranty
| Coverage | 10-year full parts or full product replacement from original purchase date |
|---|---|
| Registration | register within first year of purchase, or keep proof of purchase from an EG4 authorized distributor |
| Transfer | original purchaser; transferable once if unit stays at original installation site |
| Residential vs commercial | no separate terms stated |
| How to claim | contact original place of purchase (Sky Solar USA) / EG4 support |
Download: EG4 18kPV Hybrid Inverter 10-Year Limited Warranty Document (v1.1.0)
Manufacturer warranties are provided by the manufacturer. Keep your invoice as proof of purchase. Questions about a warranty claim? Call (888) 831-0450.
