- 500 VDC max PV input, 5.5kW array
- 100A charging for 48V battery banks

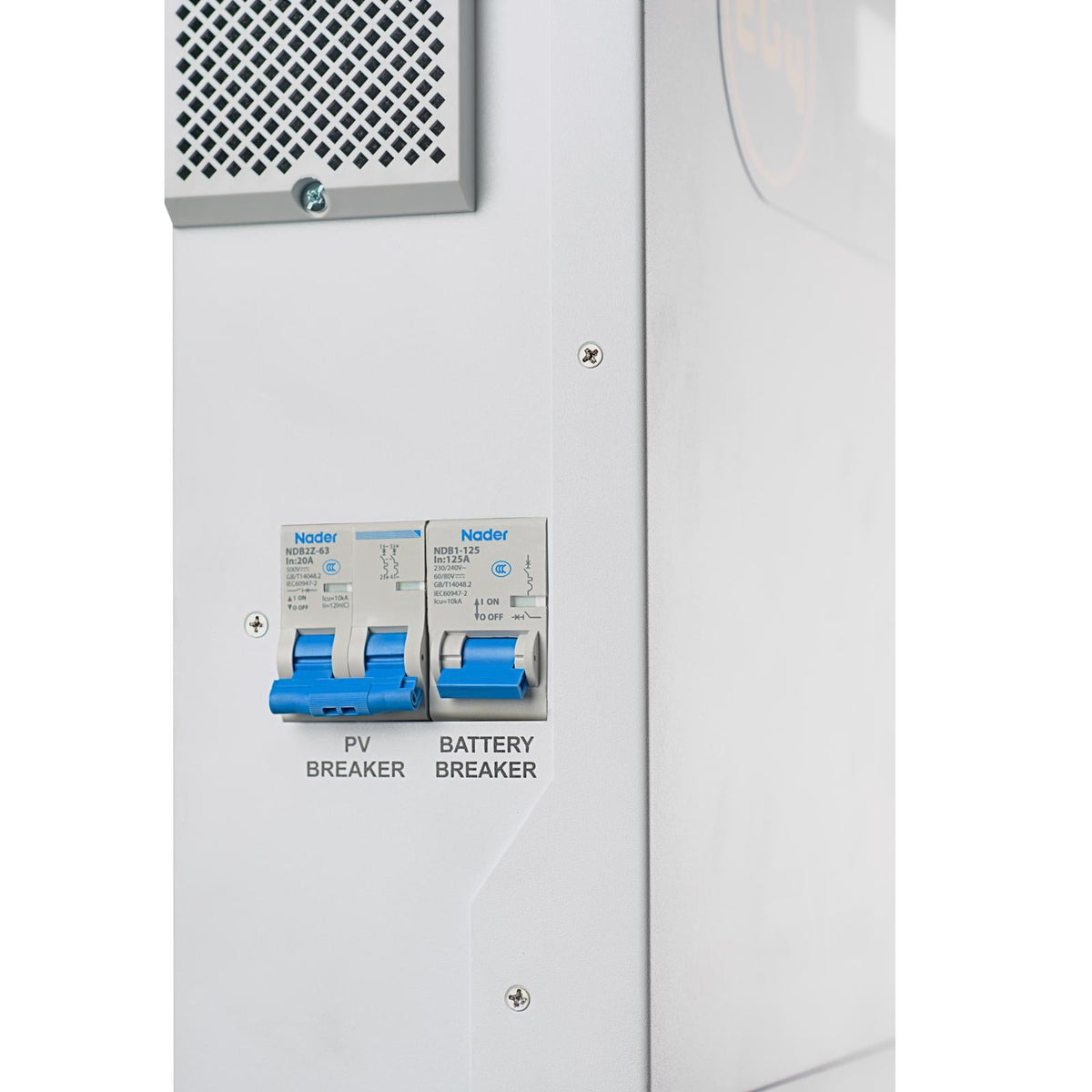

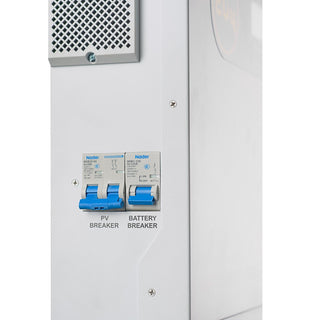

- Built-in PV and battery breakers
- No combiner box required

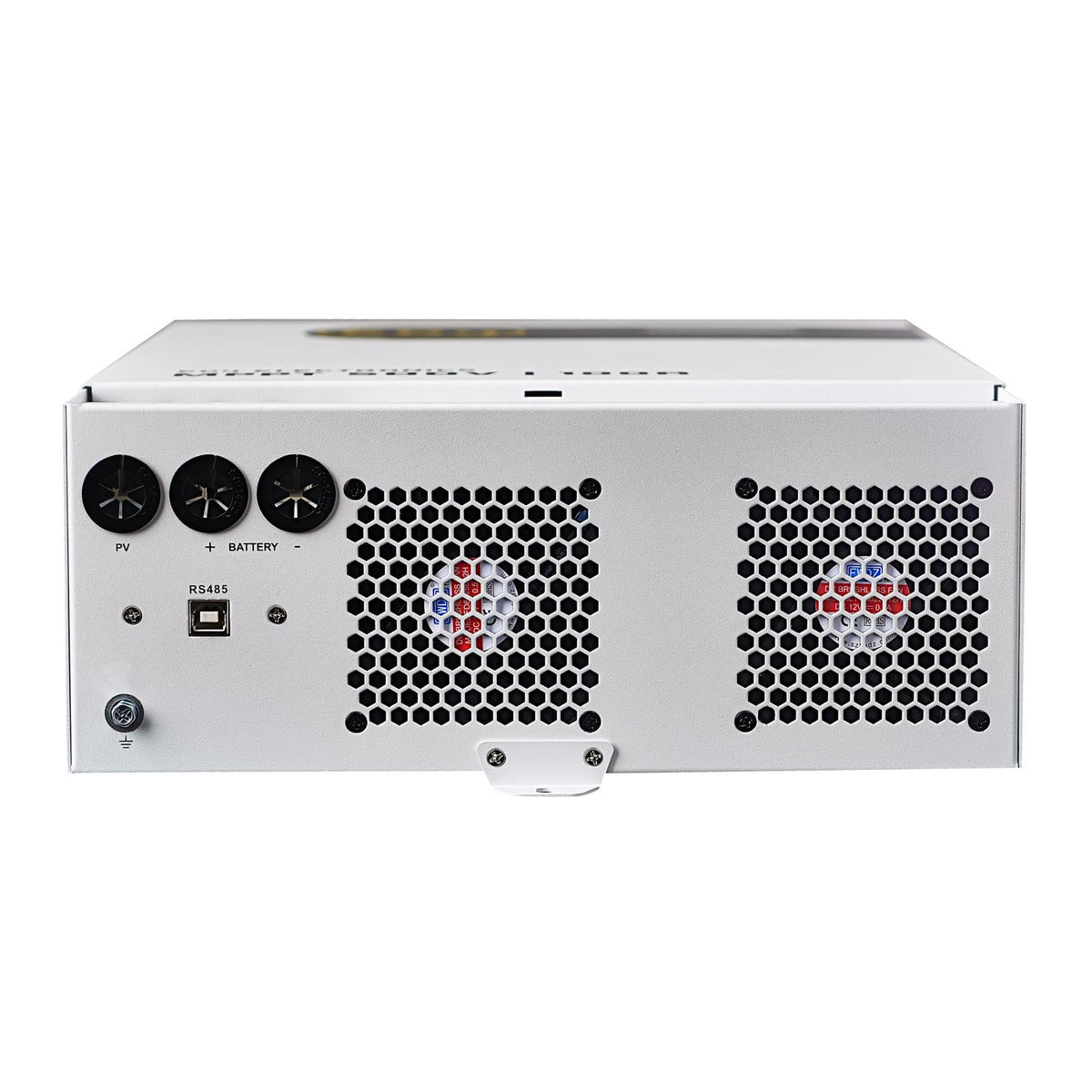

- BMS communication via RS485
- 3-year limited warranty
Ships by parcel (UPS / FedEx).
We accept

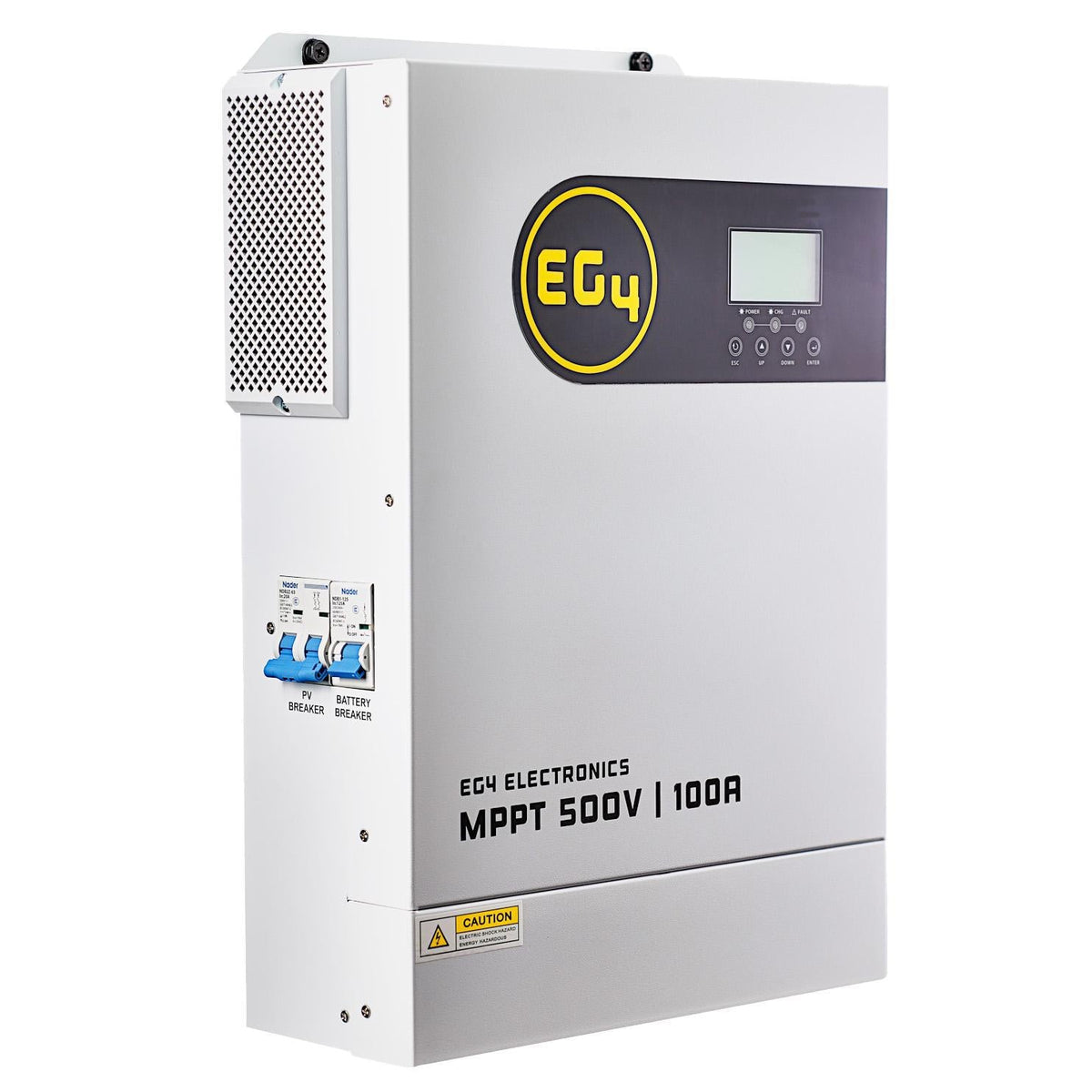

The EG4 MPPT100-48HV is a high-voltage MPPT solar charge controller for 48V battery banks. It accepts PV strings up to 500VDC, so you can wire long series strings with smaller conductors, and charges at up to 100A for fast recharge. An RS485 BMS port communicates with EG4 batteries, and a built-in PV disconnect and battery breaker protect the system. It's a strong way to add solar to an existing 48V system or to DC-couple more array capacity.
Highlights
- Maximizes harvest with MPPT tracking
- High-voltage PV input: up to 500VDC
- Fast charging: up to 100A
- Designed for 48V battery systems
- Built-in protection: PV disconnect and battery breaker
- EG4 battery communication over RS485
Specifications
| Model | MPPT100-48HV |
| Max PV input voltage | 500VDC |
| Max PV string current | 22A |
| Max charge current | 100A |
| Battery voltage | 48V nominal |
| Charging voltage range | 48–62VDC |
| Communication | RS485 BMS port |
| Protection | Built-in PV disconnect and battery breaker |
| Warranty | 3-year EG4 warranty |
| Manufacturer | EG4 Electronics |
|---|---|
| Model Number | MPPT100-48HV |
| Battery Voltage | 48 VDC nominal (charge 48-62 VDC) |
| Max PV Open Circuit Voltage | 500 VDC |
| MPPT Range | 120-450 VDC |
| Max Usable PV Power | 5,500W |
| Max PV String Current | 22A |
| Charge Current | 5-100A (default 80A) |
| Max Efficiency | 94% |
| Communication | RS485 BMS port |
| Enclosure | IP21 (indoor) |
| Operating Temp | 14 to 131°F (-10 to 55°C) |
| Dimensions (HxWxD) | 17.2 x 11.6 x 4.7 in (438 x 295 x 120 mm) |
| Weight | 17.8 lb (8.1 kg) |
| Warranty | 3 years |
Specifications are from the manufacturer and may change. Questions? Call (888) 831-0450.
EG4 3-year limited warranty
| Coverage | 3-year full parts or full product replacement from original purchase date |
|---|---|
| Registration | register within first year of purchase, or keep proof of purchase from an EG4 authorized distributor |
| Transfer | original purchaser; transferable once if unit stays at original installation site |
| Residential vs commercial | no separate terms stated |
| How to claim | contact original place of purchase (Sky Solar USA) / EG4 support |
Download: EG4 MPPT100-48HV Charger Warranty Document (v1.1.0)
Manufacturer warranties are provided by the manufacturer. Keep your invoice as proof of purchase. Questions about a warranty claim? Call (888) 831-0450.
