- Integrated PV Point basic backup power (1,560 VA)
- Battery-ready via Fronius UP.storage upgrade
- Dynamic Peak Manager integrated shade management
- Active Cooling Technology for long service life
- SuperFlex Design with 2 MPPTs
- Commissioning via Fronius Solar.start app
- NEMA 4X indoor/outdoor enclosure
- Fronius 10-year limited warranty (extendable)
Ships by parcel (UPS / FedEx).
We accept
Product Documents

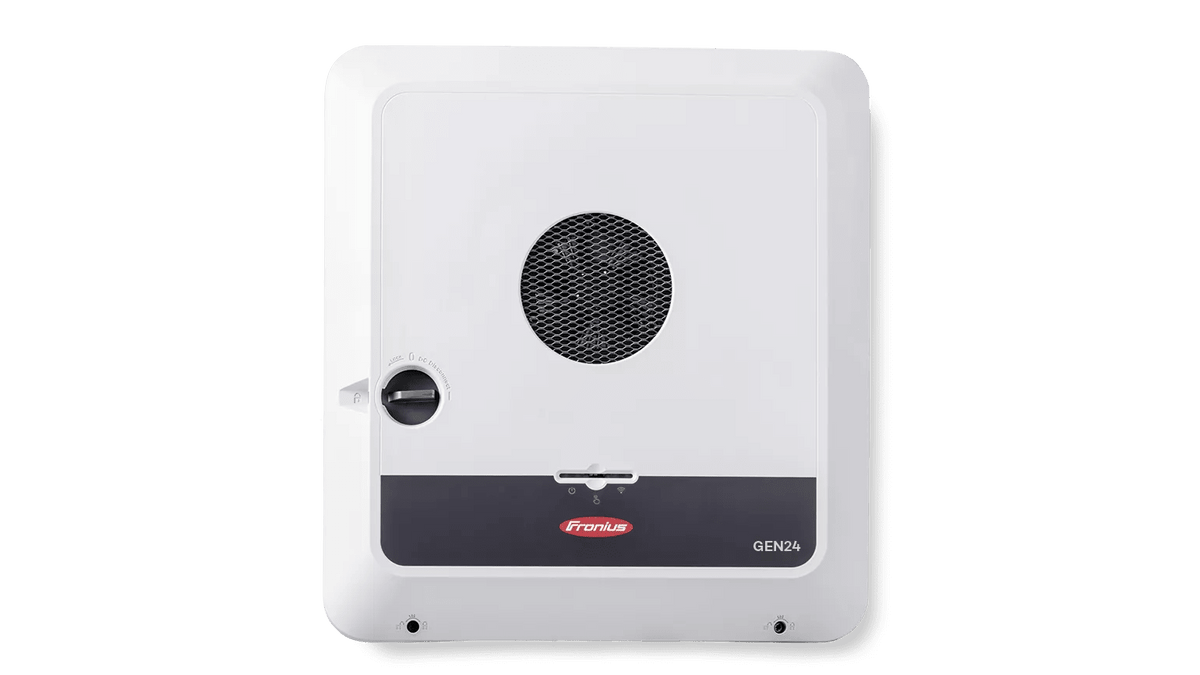

The Fronius Primo GEN24 10.0 is a two-tracker single-phase string inverter for 208/240 V residential systems. It brings Fronius' GEN24 platform to PV-only installs today: the Dynamic Peak Manager handles shading at string level, SuperFlex Design accepts strings from as few as three modules, and PV Point provides a backup outlet that runs from solar during a grid outage. When the homeowner is ready for storage, a Fronius UP.storage software upgrade converts it into a GEN24 Plus hybrid with battery support.
Highlights
- Upgradeable to hybrid via Fronius UP.storage software (external switching hardware needed for Full Backup)
- PV Point sunlight-only backup outlet, no battery required
- Active Cooling and Type 4X enclosure for indoor or outdoor mounting
- Integrated Arc Guard AFCI, DC disconnect and insulation monitoring
- Built-in WLAN + 2× Ethernet, Fronius Solar.web, Modbus TCP SunSpec and Solar API
Specifications
| Part number | 4210144800 |
| AC rated power | 9,450 W @ 208 V / 10,000 W @ 240 V |
| Grid connection | 1-phase 208 / 220 / 240 V, 60 Hz |
| MPP trackers | 2 |
| Max. PV array | 15,000 Wp |
| MPP voltage range (rated power) | 260–480 V |
| DC input voltage range | 65–600 V |
| Dimensions (H × W × D) | 23.0 × 20.8 × 7.1 in |
| Weight | 45.97 lb |
| Enclosure | Type 4X, −40 to +140 °F |
| Made in | Austria |
| Manufacturer | Fronius |
|---|---|
| Model Number | Fronius Primo GEN24 10.0 208-240 (4,210,144,800) |
| Type | Single-phase grid-tie inverter, 2 MPPT (battery-ready via Fronius UP.storage software upgrade) |
| Nominal AC Output Power | 10,000 VA @ 240 V / 9,450 VA @ 208 V |
| Max Continuous Output Current | 41.7 A @ 240 V / 45.45 A @ 208 V |
| Max PV Input Power | 10,250 W |
| Max Usable Input Current (MPPT1 / MPPT2) | 22 A / 22 A |
| Max Input Voltage | 600 V |
| MPP Voltage Range at Rated Power | 260-480 V |
| Max Efficiency | 97.5% @ 240 V |
| CEC Efficiency | 97.0% @ 240 V / 96.5% @ 208 V |
| Backup Power | PV Point 1,560 VA (basic, sun-dependent) |
| Enclosure | NEMA 4X, indoor/outdoor, active cooling |
| Operating Temperature | -40 to +140 F (-40 to +60 C) |
| Certifications | UL 1741 3rd Ed. (incl. SA/SB), UL 1998, UL 1699B, IEEE 1547-2018, UL 9540, UL 3141, CSA C22.2, FCC Part 15 |
| Dimensions (H x W x D) | 23.0 x 20.8 x 7.1 in (583 x 529 x 180 mm) |
| Weight | 45.97 lb (Fronius tech data; datasheet lists 49.05 lb) |
| Warranty | 10 years standard (extensions available) |
Specifications are from the manufacturer and may change. Questions? Call (888) 831-0450.
Fronius 10-Year Limited Warranty (extendable)
| Coverage | replacement parts/device; Warranty Plus also pays approved labor and national shipping |
|---|---|
| Start | from Fronius shipment, or from installation date if registered on solarweb.com within 30 months |
| Residential vs commercial | terms do not distinguish |
| How to claim | contact your installer, who files the claim with Fronius (invoice, serial no., commissioning report) |
Download: Fronius USA Limited Warranty Terms and Conditions
Manufacturer warranties are provided by the manufacturer. Keep your invoice as proof of purchase. Questions about a warranty claim? Call (888) 831-0450.
