- 5.12 kWh LFP module for HV48100 SE C&I cabinet
- Tier 1 automotive-grade LFP cells
- BMS multi-level monitoring and protection
- Configurable 3-15 modules per BCU (142.5-864 V)
- Integrated heating for low-temperature operation
- 10-year / 6,000-cycle battery warranty
Ships by parcel (UPS / FedEx).
We accept

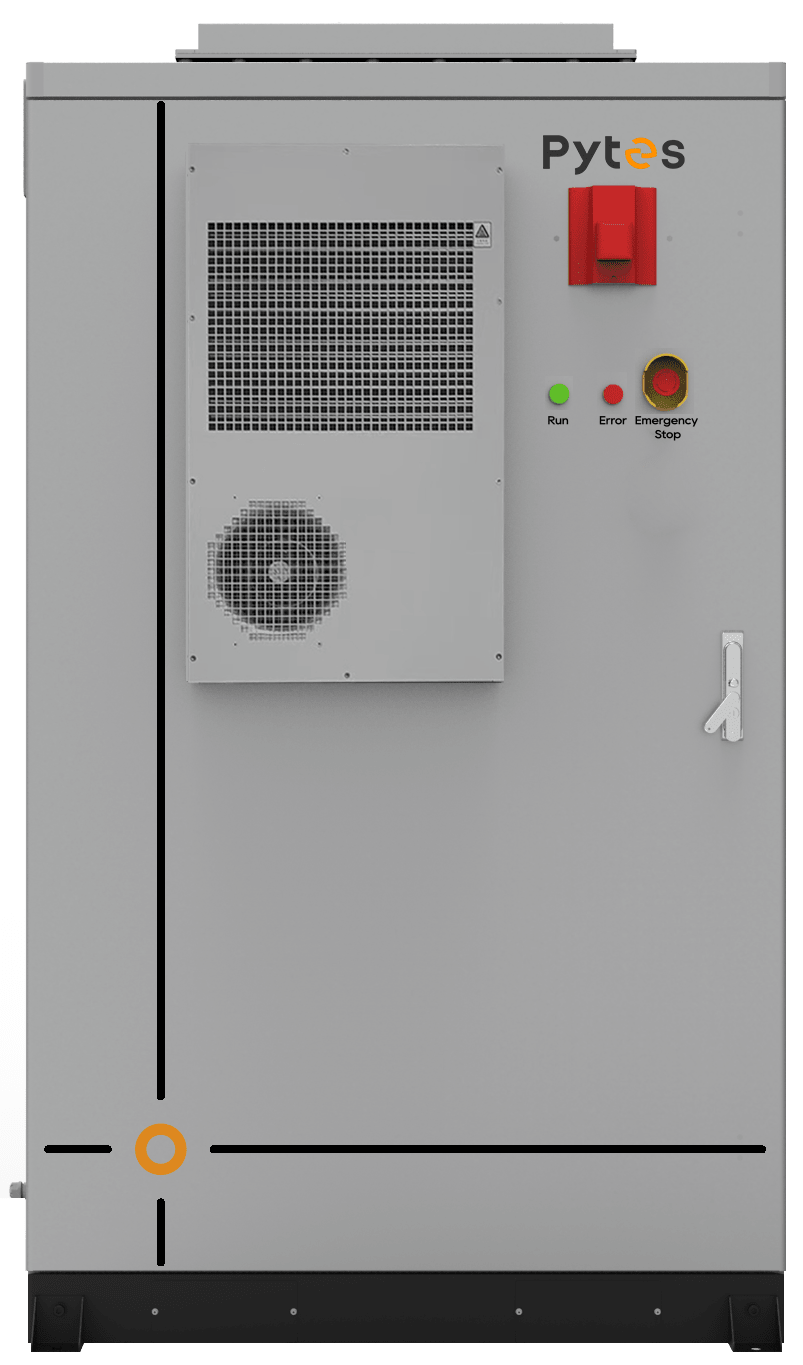

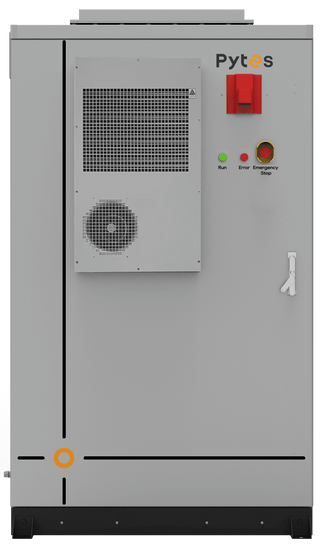

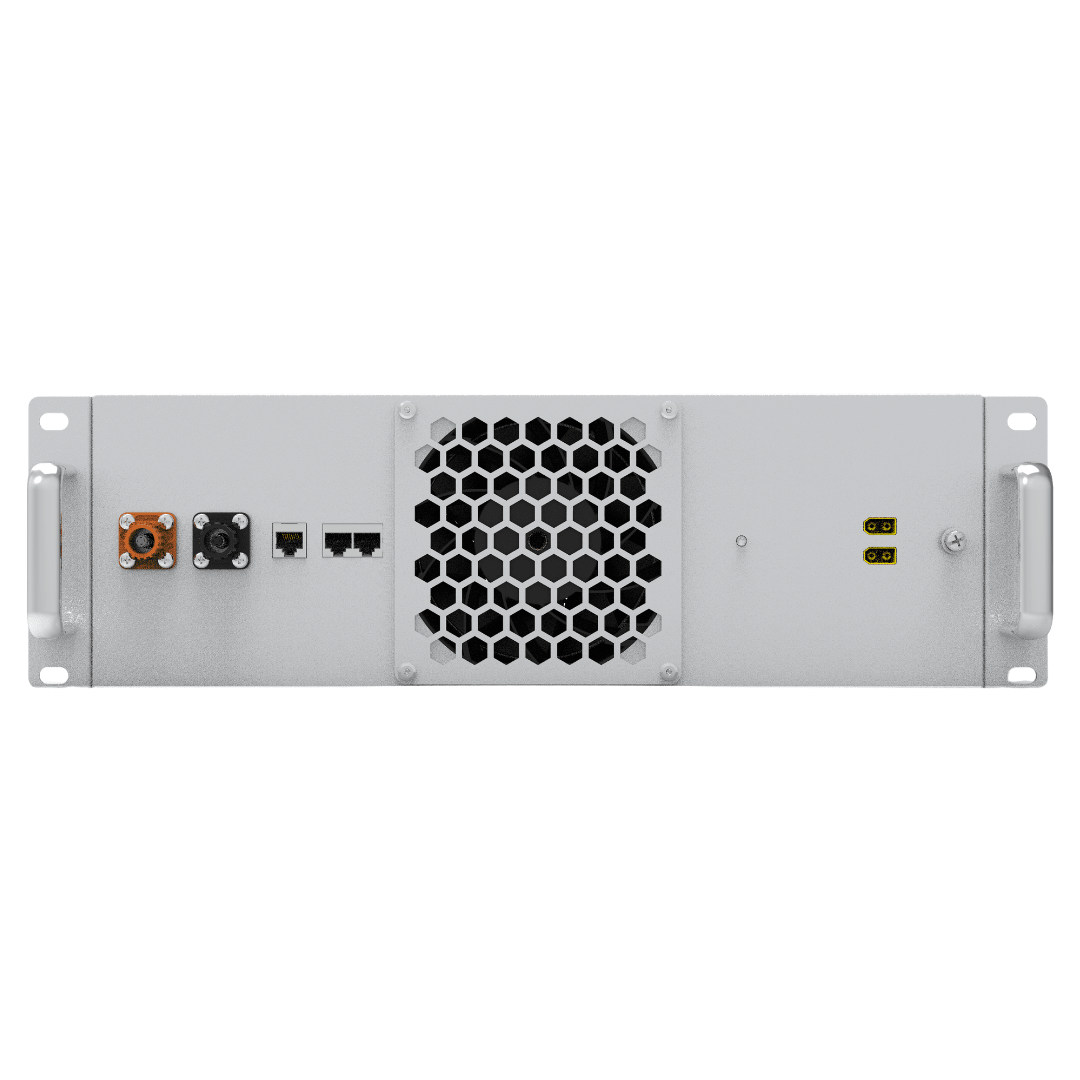

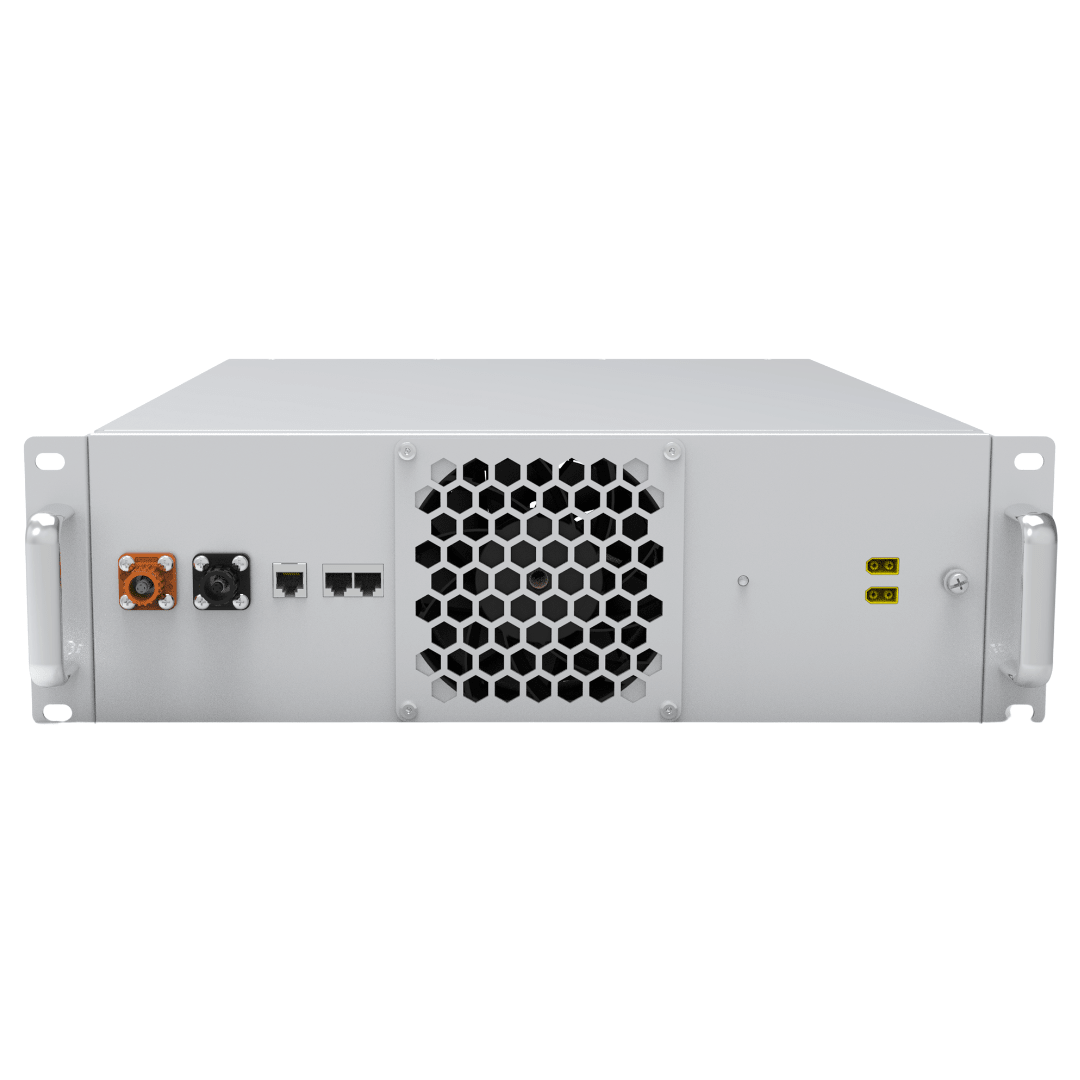

The building block of the Pytes HV48100 SE outdoor commercial storage platform. Each 5.12kWh module adds capacity to an IP55 cabinet system that runs from -4°F to 131°F. That system is built for hospitals, schools, farms and critical infrastructure, with integrated aerosol fire suppression, pressure relief and breaker protection. Size a system for today's needs and add modules as demand grows, up to MWh scale.
Highlights
- Tier-1 automotive-grade LFP cells for thermal stability and long life
- Integrated BMS: monitors voltage, current and temperature; protects against over-charge, over-discharge, over-current and temperature extremes
- Flexible high-voltage stacks of 3 to 15 modules
- All-weather system: air cooling for heat, heating film for cold, module-level fans for even temperatures, IP55 cabinet
- Multi-layer active fire protection: detection and ventilation, aerosol suppression, pressure relief, fire hose port
- Code-compliant: NFPA 68/69/855, UL 9540/9540A/1973
- Easy service and future upgrades
Ideal for
Businesses, agriculture, data centers, manufacturing, schools and hospitals that need backup power, solar storage or demand-charge reduction.
Specifications
| Nominal voltage | 51.2V per module |
| Nominal capacity / energy | 100Ah / 5.12kWh |
| Rated charge/discharge current | 50A |
| Operating temperature | -4°F to 131°F (-20°C to 55°C) |
| System size | 3–15 modules |
| Installation | Outdoor, in the HV48100 SE battery cabinet |
| Warranty | 10-year Pytes warranty |
Requires the HV48100 SE Battery Control Unit and cabinet. Ask us for a project quote on complete systems.
| Manufacturer | Pytes |
|---|---|
| Model Number | HV48100 SE BMU |
| Chemistry | LFP (Tier 1 automotive-grade cells) |
| Nominal Voltage | 51.2 V |
| Operating Voltage Range | 47.5-57.6 V |
| Nominal Capacity | 100 Ah |
| Nominal Energy | 5.12 kWh |
| Weight | 99 lb (45 kg) |
| Communication | CAN / RS485 / RS232 / Dry Contact / WiFi |
| Cycle Life | 6,000 cycles |
| Configuration | 3-15 BMUs per BCU (142.5-864 V); max 15S1P / 7S2P per cabinet |
| Certifications (system) | UL 9540 Ed.3, UL 9540A, UL 1973, UN 38.3 |
| Warranty | 10 years or 6,000 cycles |
Specifications are from the manufacturer and may change. Questions? Call (888) 831-0450.
Pytes Battery (BMU/BCU) 10 years or 6,000 cycles; cabinet 5 years warranty
| HV48100 SE outdoor BMU and BCU | 10 years |
|---|---|
| SE cabinet unit (excl. BMU/BCU) | 5 years |
Download: Pytes HV48100 SE Series Warranty (US)
Manufacturer warranties are provided by the manufacturer. Keep your invoice as proof of purchase. Questions about a warranty claim? Call (888) 831-0450.
