- 200A service-entrance rated MID
- Connects up to three 90A hybrid inverters
- 4 configurable smart load ports
- 125A generator input
- 8-circuit energy monitoring
- NEMA 3R outdoor enclosure
- Breakers sold separately
- 10-year limited warranty
Ships by parcel (UPS / FedEx).
We accept

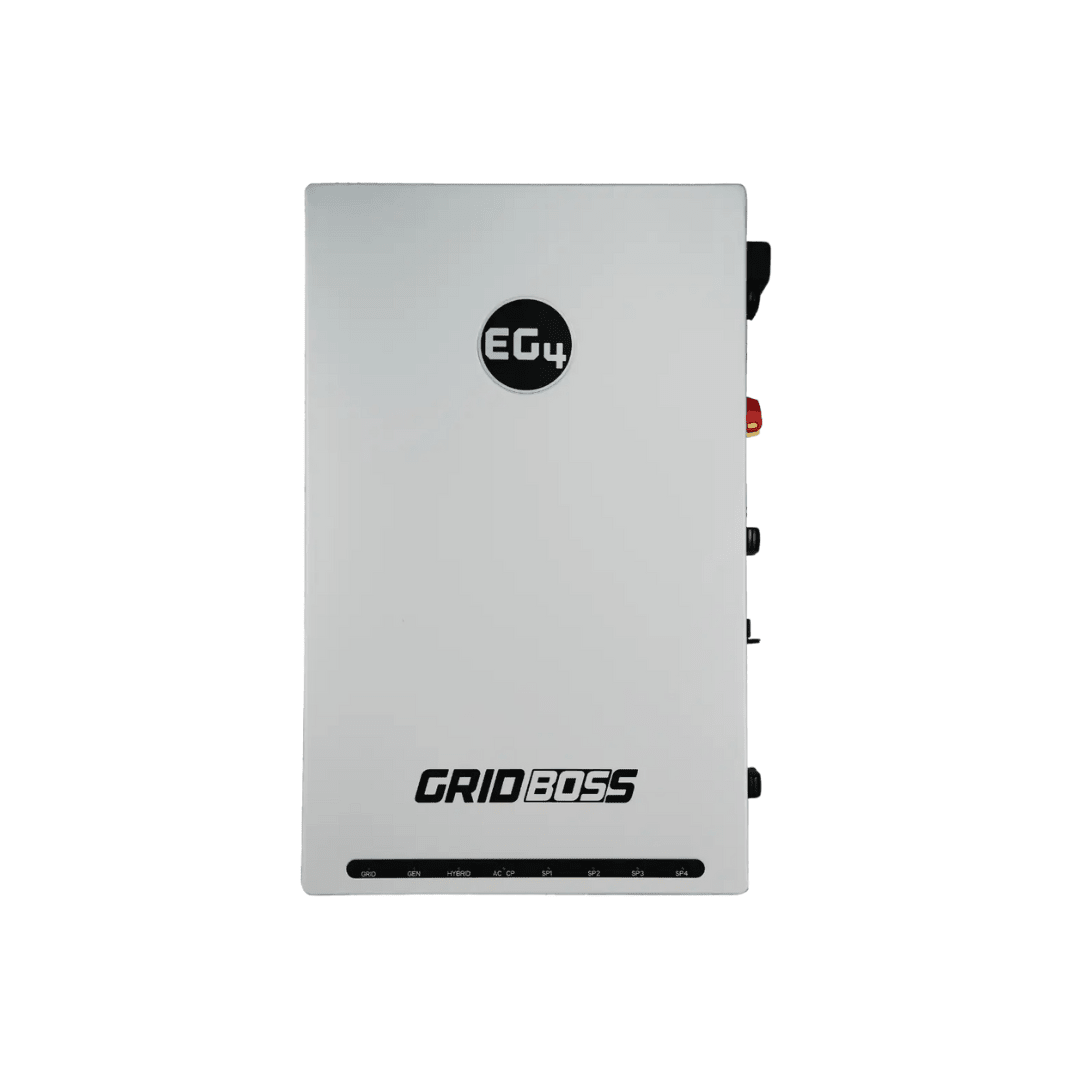

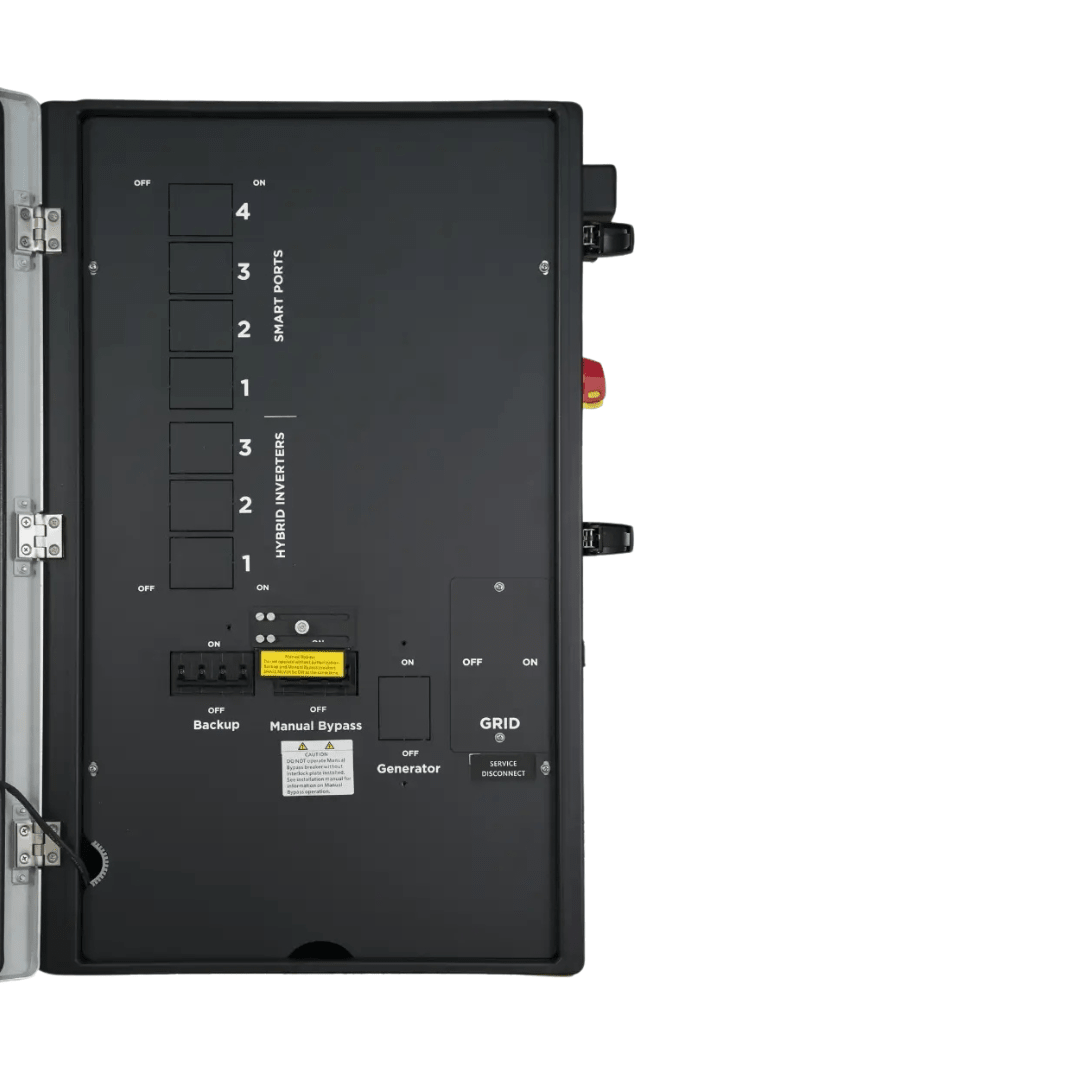

The EG4 GridBOSS MID (microgrid interconnect device), v3.1, is a single, intelligent hub for complex solar and backup installs. It brings utility power, up to three hybrid inverters, a generator, smart loads, and essential and non-essential circuits together in one 200A service-entrance-rated enclosure. It replaces the separate transfer switches, combiner panels and breakers a typical system needs, which can save up to about $7,500 in equipment and labor on a typical installation.
Highlights
- Single connection point for utility, inverters, generator, smart loads and backed-up and non-backed-up circuits
- 200A service entrance rating for whole- or partial-home backup
- Four configurable smart ports (125A, 80A, 60A, 60A) for smart loads or AC coupling
- Five programmable drivers for load management
- Inputs: up to three 90A hybrid inverters plus a 125A generator
- Eight energy-monitoring circuits
- Optimized for EG4: pairs with FlexBOSS21 and FlexBOSS18 (also supports 12kPV and 18kPV)
Specifications
| Service rating | 200A |
| Max grid bypass current | 200A |
| Inverter inputs | Up to 3 × 90A hybrid inverters |
| Generator input | 125A |
| Smart ports | 4 (125A / 80A / 60A / 60A) |
| Monitoring circuits | 8 |
| Transfer time | ~25ms |
| Enclosure | NEMA 3R |
| Max altitude | 6,561 ft (2,000 m) |
| Dimensions | 31.5 × 19.7 × 7.0 in |
| Weight | 60 lbs |
| Warranty | 10-year EG4 manufacturer warranty |

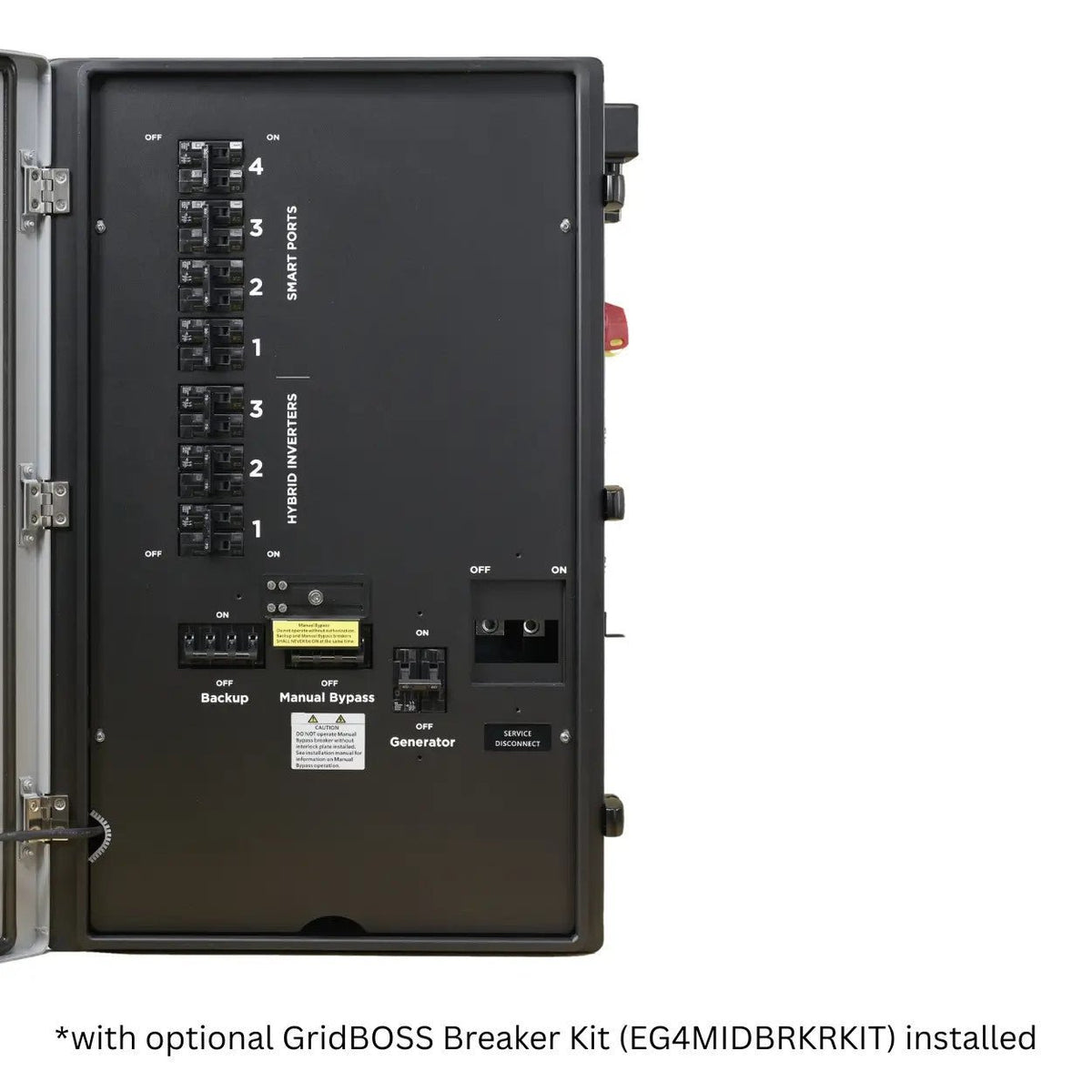

Note: Breakers for the smart ports, hybrid inverter inputs and generator input are sold separately.
| Manufacturer | EG4 Electronics |
|---|---|
| Model Number | MI-200-2P-HYB-AW-0X (v3.1 = AW-03) |
| Type | Microgrid Interconnect Device (MID) |
| Service Rating | 200A service entrance (350A bus, software limited to 200A) |
| Hybrid Inverter Ports | 3 x 90A (12kPV, 18kPV, FlexBOSS18, FlexBOSS21) |
| Smart Load Ports | 4 (125A / 80A / 60A / 60A) |
| Generator Input | 120/240VAC, 125A max |
| Circuit Monitoring | 8 circuits |
| Communication | RS485 / Wi-Fi / CAN |
| Enclosure | NEMA 3R |
| Operating Temp | -40 to 113°F (-40 to 45°C) |
| Dimensions | 31.5 x 19.7 x 7 in (800 x 500 x 178 mm) |
| Weight | 55 lb (25 kg) |
| Certifications | UL 1741, UL 67, UL 869A (with Eaton CSR2200N), CSA C22.2, FCC Part 15 B |
| Warranty | 10 years |
Specifications are from the manufacturer and may change. Questions? Call (888) 831-0450.
EG4 10-year limited warranty
| Coverage | 10-year full parts or full product replacement from original purchase date |
|---|---|
| Registration | register within first year of purchase, or keep proof of purchase from an EG4 authorized distributor |
| Transfer | original purchaser; transferable once if unit stays at original installation site |
| Residential vs commercial | no separate terms stated |
| How to claim | contact original place of purchase (Sky Solar USA) / EG4 support |
Download: EG4 GridBOSS Warranty Document
Manufacturer warranties are provided by the manufacturer. Keep your invoice as proof of purchase. Questions about a warranty claim? Call (888) 831-0450.
