- 11.4 kW continuous AC with PV (10 kW battery-only)
- 3 MPPTs, 15 kW PV, 600 V max input
- 100 A grid pass-through, <10 ms transfer
- Programmable load-shed outputs and generator input
- Arc-fault, ground-fault and rapid shutdown built in
- UL 1741SB grid-tie, self-consumption or off-grid
- Stackable up to 9 units
- 10-year limited warranty
Ships by parcel (UPS / FedEx).
We accept
Sol-Max's flagship hybrid inverter, formerly the MidNite MN15-12KW-AIO "The One", handles off-grid, backup and advanced grid-tie systems. It's a true 5-in-1 unit: inverter, charger, 3-MPPT solar controller, smart panel and sub panel in one outdoor-rated enclosure. It delivers 11.4kW continuous with PV and 10kW on battery alone, with a 20kW one-second surge and full 100% imbalanced-load support, so 120V motor loads start without drama.
Highlights
- High surge: 20kW (84A) for 1 s at 240V; 13kW (108A) on a 120V leg
- 5-in-1 design: inverter, charger, MPPT, Smart Panel and Sub Panel
- 3 MPPT trackers: 15kW PV, 600VDC max, integrated PV disconnect
- Three SmartLoad outputs (60A, 50A, 30A) for load shedding and opportunity loads
- CBI hydraulic-magnetic breakers on every input and output for easier code compliance
- Off-grid ready: built-in auto generator start (two-wire)
- Stackable: up to 9 units at 240V (90kW), or 3 units for 208V three-phase (30kW)
- Plug-and-play with Sol-Max PowerFlo batteries: no DIP switches or firmware fiddling
- Arc fault, ground fault and rapid shutdown built in, plus surge suppression
Specifications
| Continuous output | 11.4kW (47.5A) with PV / 10.0kW (42A) battery only |
| Surge | 20kW (84A) 1 s @ 240V; 13kW (108A) 1 s @ 120V |
| Output | 120/240V split phase, or 208V 3-phase (3 units) |
| PV input | 15,000W max; 3 MPPTs, 90–600VDC (70–540V window); 30A / 22A / 22A |
| AC coupling input | 50A |
| Grid pass-through | 100A; <10ms transfer |
| SmartLoad outputs | 60A, 50A, 30A (120/240VAC, programmable) |
| Battery | 40–64VDC; Li-ion closed loop (Sol-Max, Pylontech) or open loop; lead-acid |
| Battery current | 210A max charge/discharge; 250A hydraulic-magnetic breaker |
| Efficiency | 98% PV-to-AC; 94.5% battery-to-AC; 96.6% CEC |
| Parallel | Up to 9 units (90kW) |
| Enclosure | IP65 / NEMA 3R outdoor |
| Operating range | -13°F to 140°F; full power to 113°F and 6,500 ft |
| Dimensions | 38.3 × 16.5 × 10.7 in |
| Weight | 108 lbs (49 kg) |
| Certifications | UL 1741SB, UL 1741 PCS, IEEE 1547, HECO SRD 2.0 |

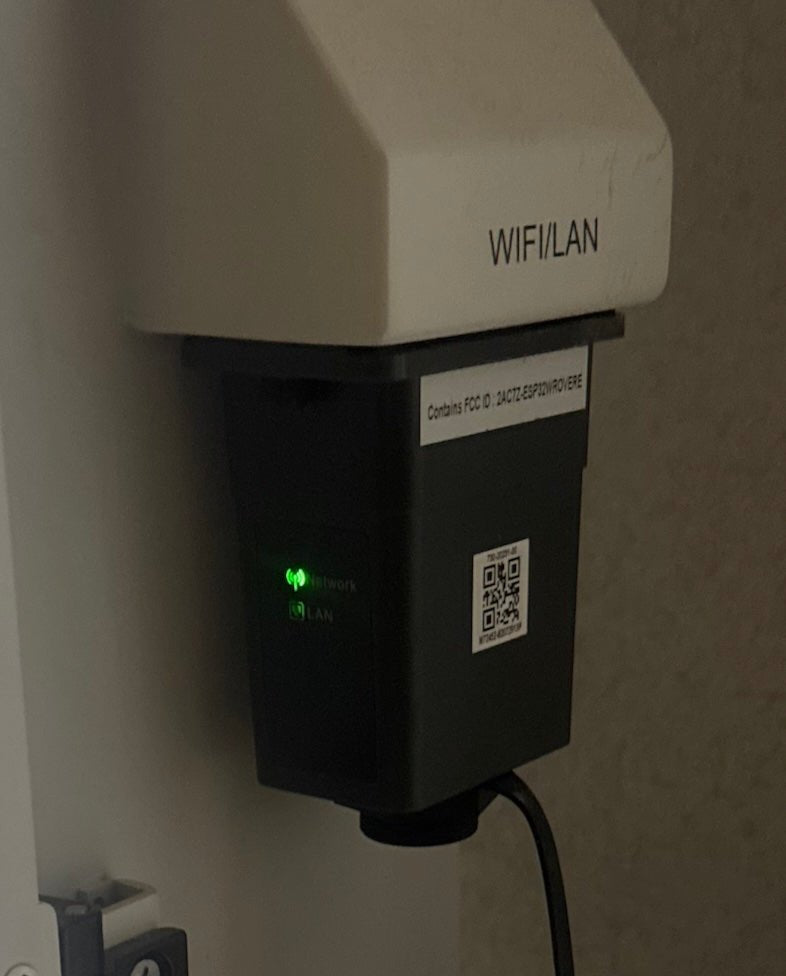

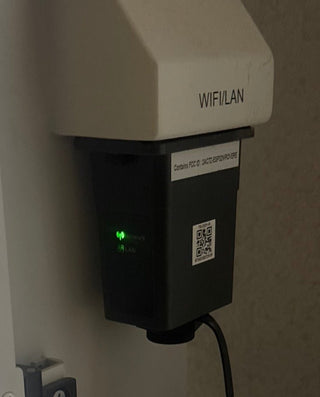

| Included | Wi-Fi/Ethernet monitoring dongle |
| Manufacturer | Sol-Max (formerly MidNite Solar) |
|---|---|
| Model Number | MN15-12KW-AIO |
| AC Output | 11,400 W continuous with PV; 10,000 W battery only |
| AC Output Voltage | 120/240 V split-phase or 120/208 V, 50/60 Hz |
| Peak Output | 14,000 VA for 60 s (off-grid) |
| Grid Pass-through | 100 A |
| PV Input | 15,000 W max; 600 V max; 70-550 V MPPT range |
| MPPTs | 3 (2 strings each); 30 A / 22 A / 22 A |
| Battery | 48 V nominal, 40-64 V range, 210 A max charge/discharge |
| Transfer Time | 10 ms typical |
| Enclosure | NEMA 3R |
| Operating Temperature | -13 to 140°F (-25 to 60°C), derating above 113°F |
| Dimensions | 37.40 x 16.54 x 9.52 in (950 x 420 x 241.8 mm) |
| Weight | 101.85 lb (46.2 kg) net; 118.83 lb (53.9 kg) packaged |
| Certifications | UL 1741 3rd Ed., UL 1741SB, IEEE 1547a, UL 1699B, CA Rule 21, HECO SRD 2.0, FCC Part 15 B |
| Warranty | 10 years |
Specifications are from the manufacturer and may change. Questions? Call (888) 831-0450.
Sol-Max 10-year limited warranty
| Coverage | MN15-12KW-AIO inverter, materials and workmanship |
|---|---|
| How to claim | call (360) 403-7207 for an RA number; ship prepaid with proof of purchase |
Manufacturer warranties are provided by the manufacturer. Keep your invoice as proof of purchase. Questions about a warranty claim? Call (888) 831-0450.
