- 2X military-grade EMP hardening option
- 9 kW continuous AC from batteries
- 50A grid pass-through
- 185A 48V battery charger
- Built-in transfer switch and dedicated GEN port
- Generator AutoStart capable
- 10-year limited warranty
Ships by parcel (UPS / FedEx).
We accept

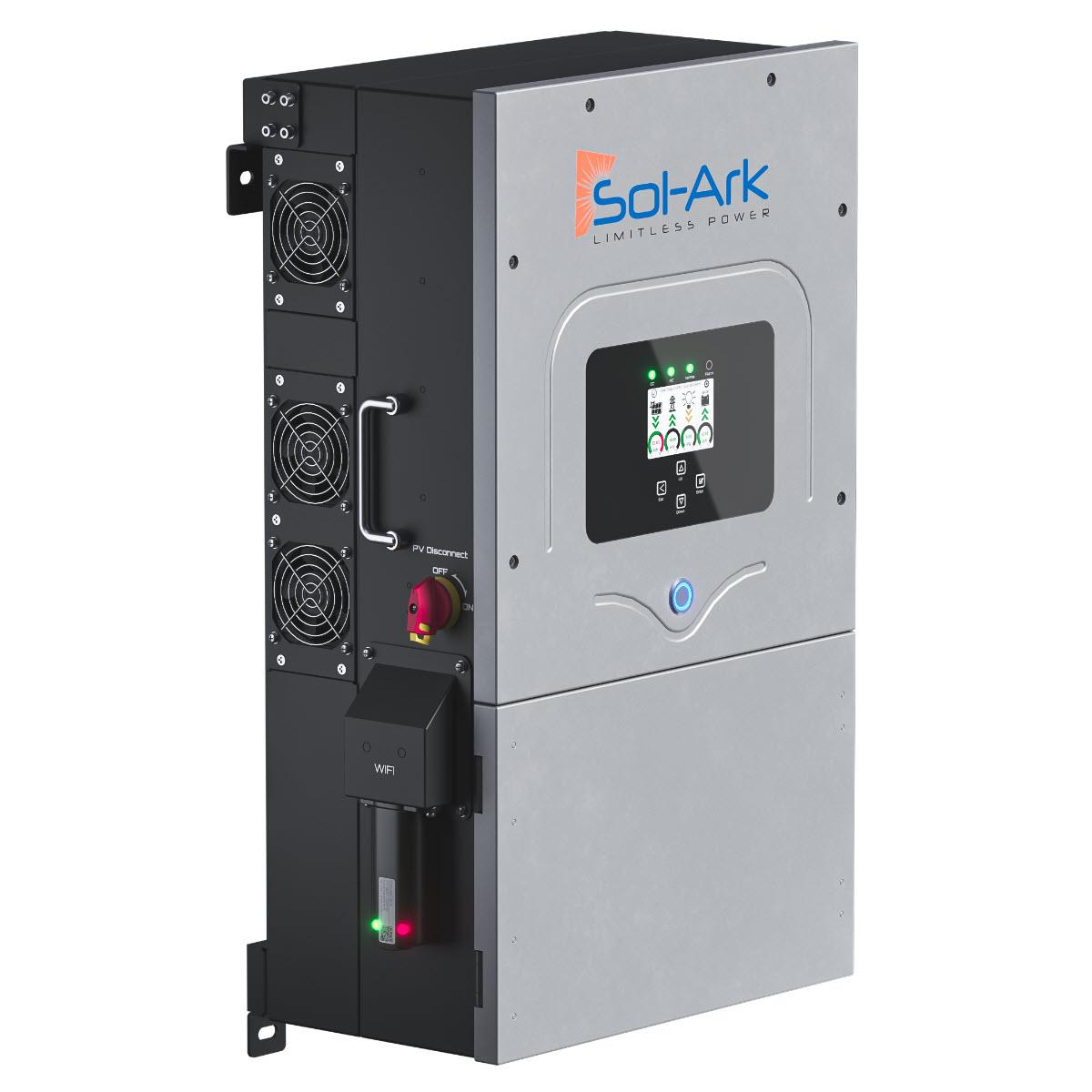

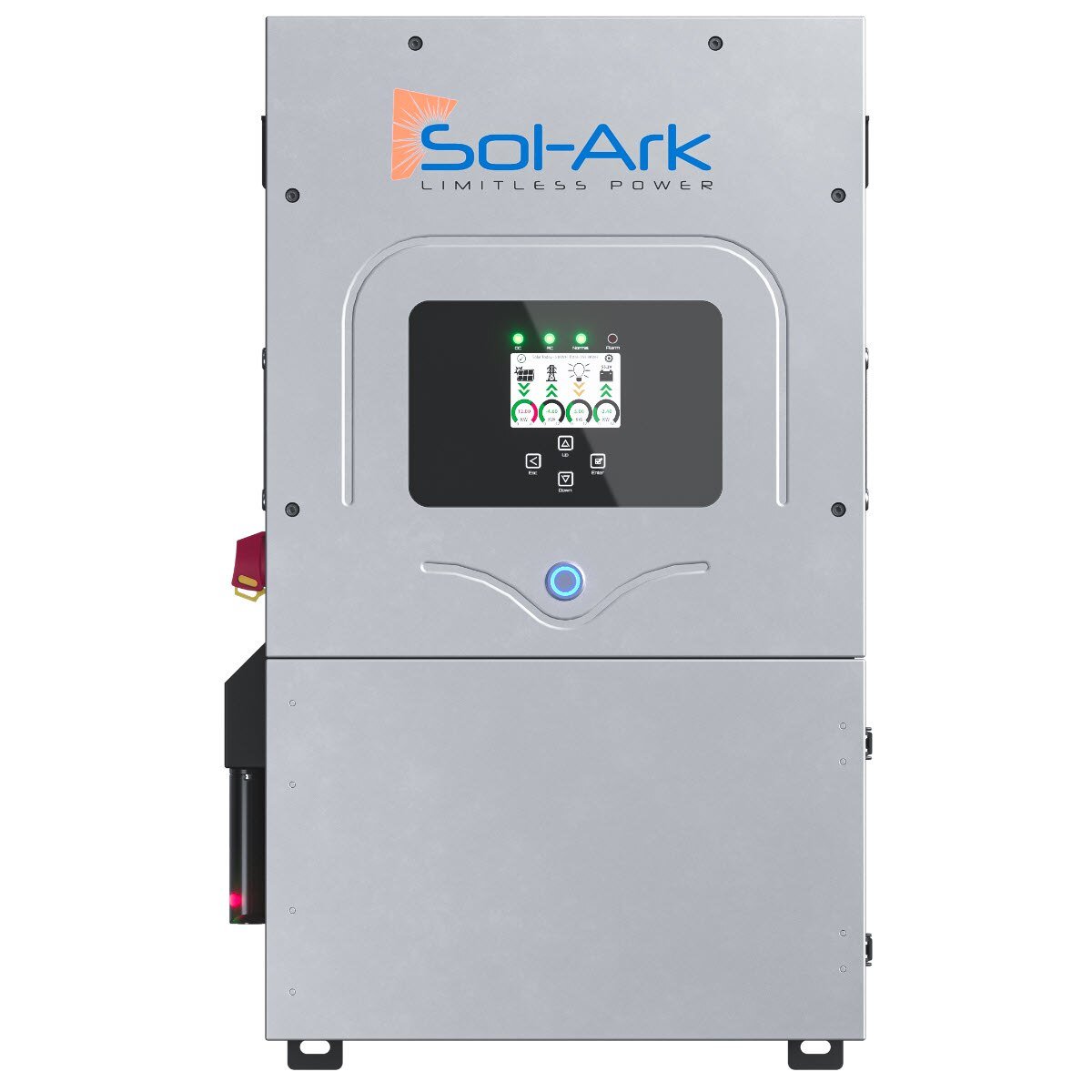

The Essentials 12K with enhanced EMP hardening, EMI-tested to military electrical-substation standards for critical infrastructure and preparedness. It provides 9kW of continuous output with a 16kVA surge, 13kW of PV, a 63A passthrough and 4ms transfer.
Highlights
- EMP-hardened
- 9kW continuous, 16kVA surge
- 2 MPPTs, 13kW PV
- 4ms transfer; stack up to 9

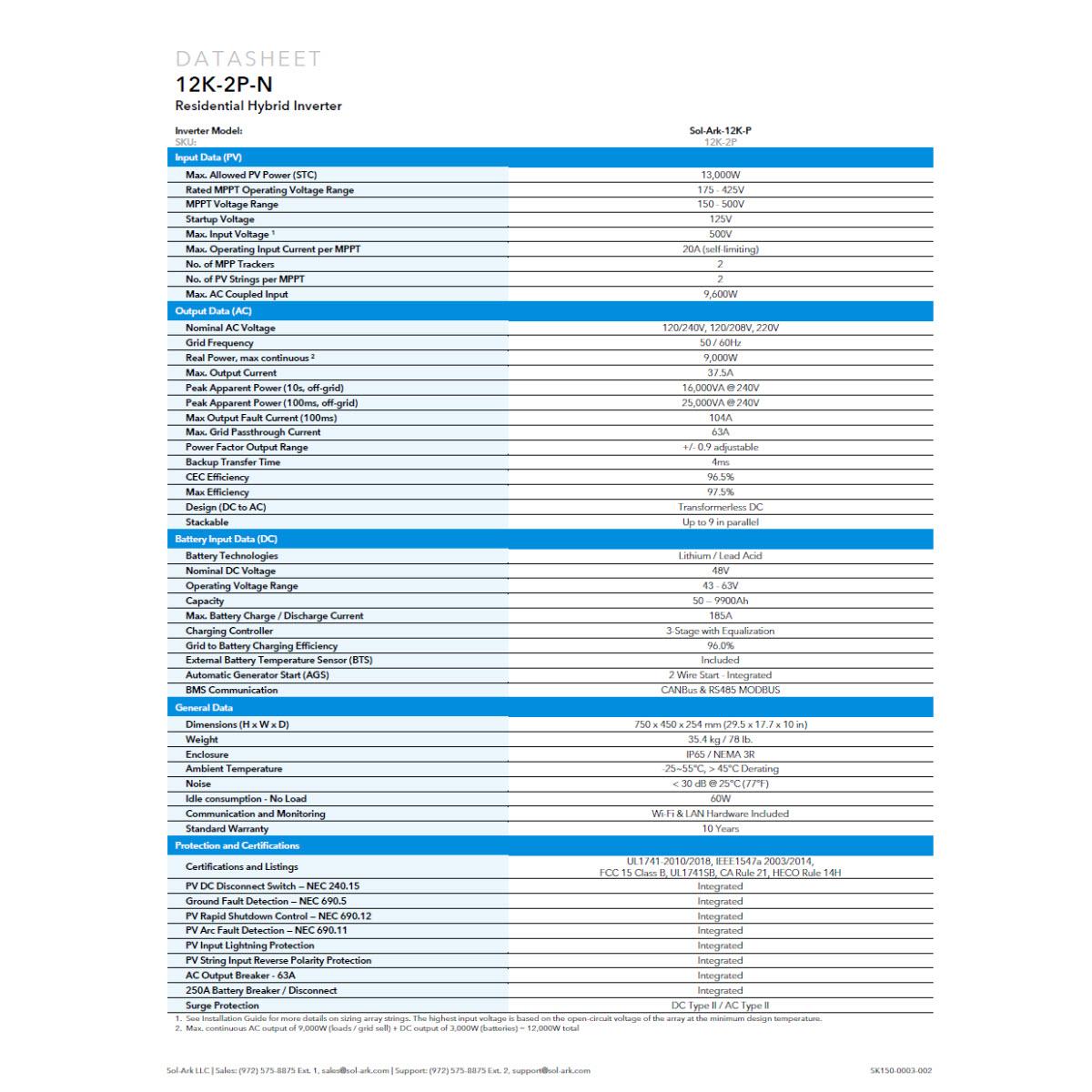

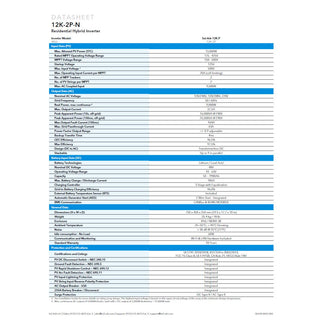

Key specifications
| AC output | 9,000W; 120/240V, 120/208V, 220V |
| Peak (10 s / 100ms) | 16,000VA / 25,000VA |
| PV | 13,000W max; 150–500V MPPT; 2 × 20A |
| Grid passthrough | 63A |
| Battery | 48V lithium, 185A |
| Efficiency | 96.5% CEC / 97.5% max |
| Dimensions (H × W × D) | 29.5 × 17.7 × 10 in |
| Weight | 78 lbs (35.4 kg) |
| Enclosure | IP65 / NEMA 3R |
| Warranty | 10 years |
| Manufacturer | Sol-Ark |
|---|---|
| Model Number | 12K-2P-N EMP option (12K-2P-LV EMP-hardened) |
| Max Continuous AC Power | 9,000 W |
| Peak Power Off-Grid | 16,000 VA 10 s; 25,000 VA 100 ms @ 240V |
| PV Input | 12,000 W usable (13,000 W max allowed) |
| MPPTs | 2 |
| MPPT Range | 175-425 V rated (150-500 V full) |
| Battery | 48 V nominal, 43-63 V operating |
| Max Battery Charge/Discharge Current | 185 A |
| Efficiency | 96.5% CEC, 97.5% max |
| Enclosure | IP65 / NEMA 3R |
| Operating Temp | -25 to 55 C (derating above 45 C) |
| Certifications | UL 1741 SB, UL 1741 SA, UL 1741 CRD-PCS, IEEE 1547.1-2020, UL 1699B, UL 1998, FCC |
| Dimensions | 29.5 x 17.7 x 10 in (750 x 450 x 254 mm) |
| Weight | 78 lb (35.4 kg) |
| Warranty | 10 years |
Specifications are from the manufacturer and may change. Questions? Call (888) 831-0450.
Sol-Ark 10-Year Limited Warranty (LCD screen and fans 5 years)
| Coverage | defects in materials and workmanship, from later of purchase or receipt date |
|---|---|
| How to claim | support@sol-ark.com or +1-972-575-8875 ext. 2; RMA required |
Download: Sol-Ark 12K-2P-N Limited Warranty (SK150-0046-002)
Manufacturer warranties are provided by the manufacturer. Keep your invoice as proof of purchase. Questions about a warranty claim? Call (888) 831-0450.
