- High-voltage modular LFP battery, 5.12 kWh per module
- Grade A cells with built-in modular BMS
- Scalable 5-15 modules (25.6-76.8 kWh) per stack
- Residential, commercial and industrial use
- UL 9540 Ed.3, UL 9540A, UL 1973 certified
- 10-year / 6,000-cycle warranty
Ships by parcel (UPS / FedEx).
We accept

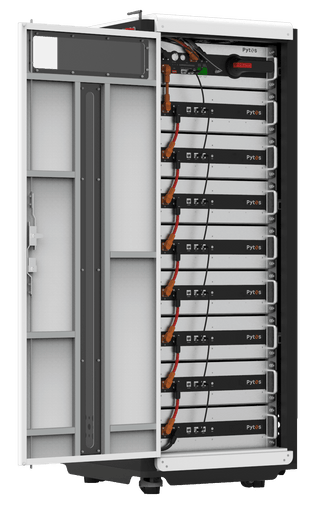

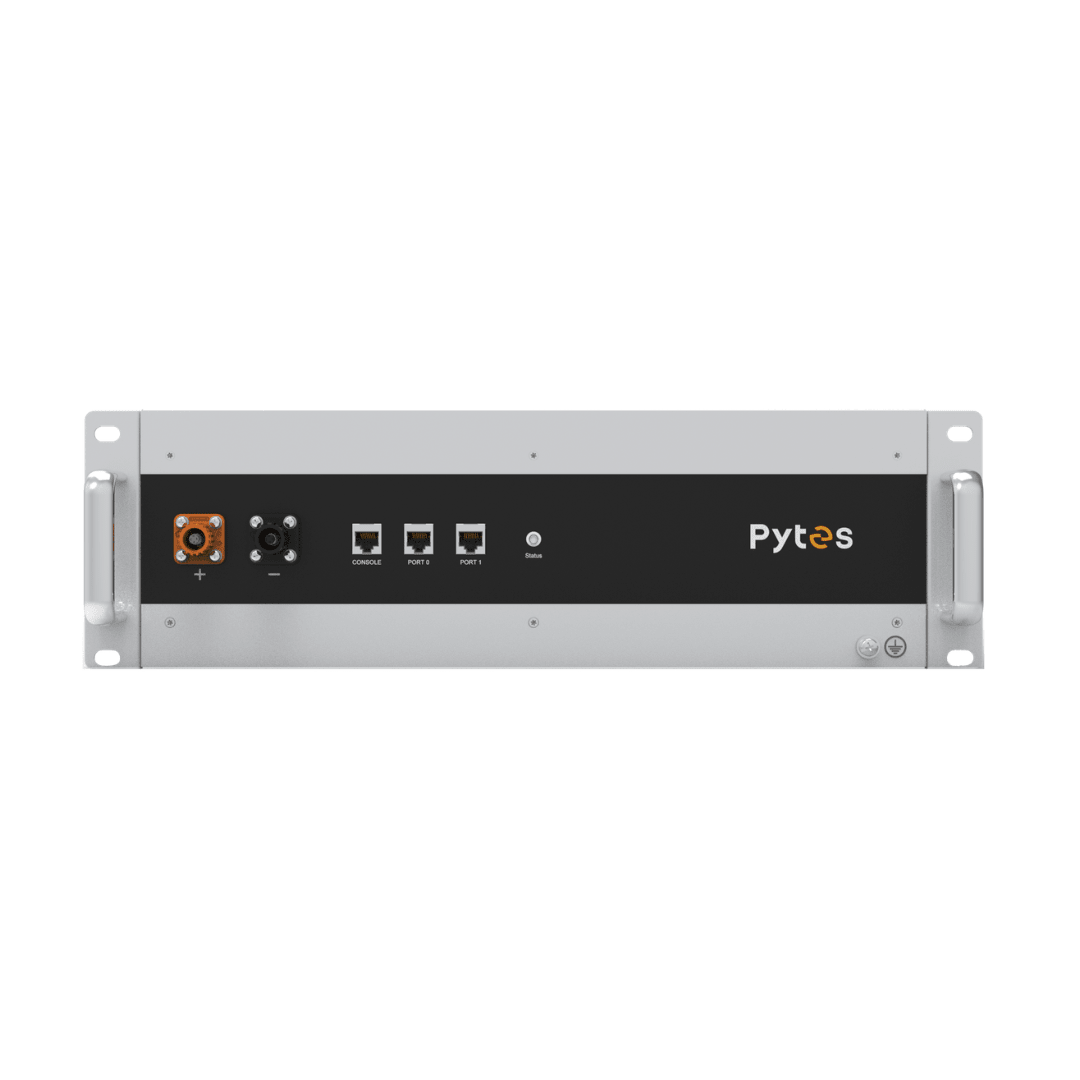

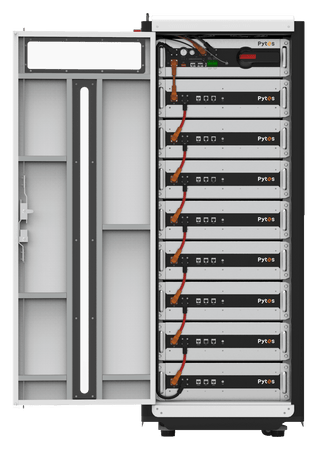

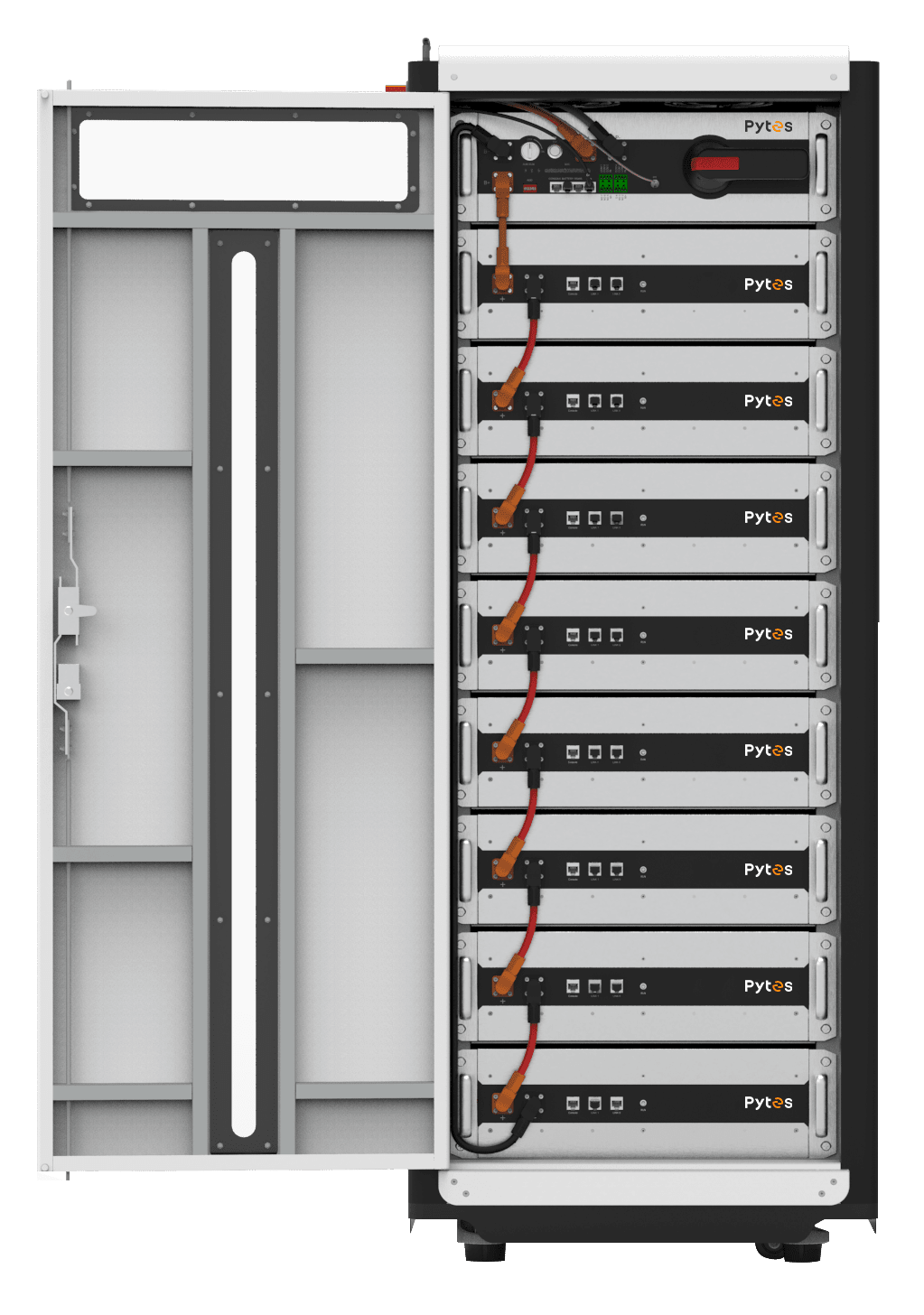

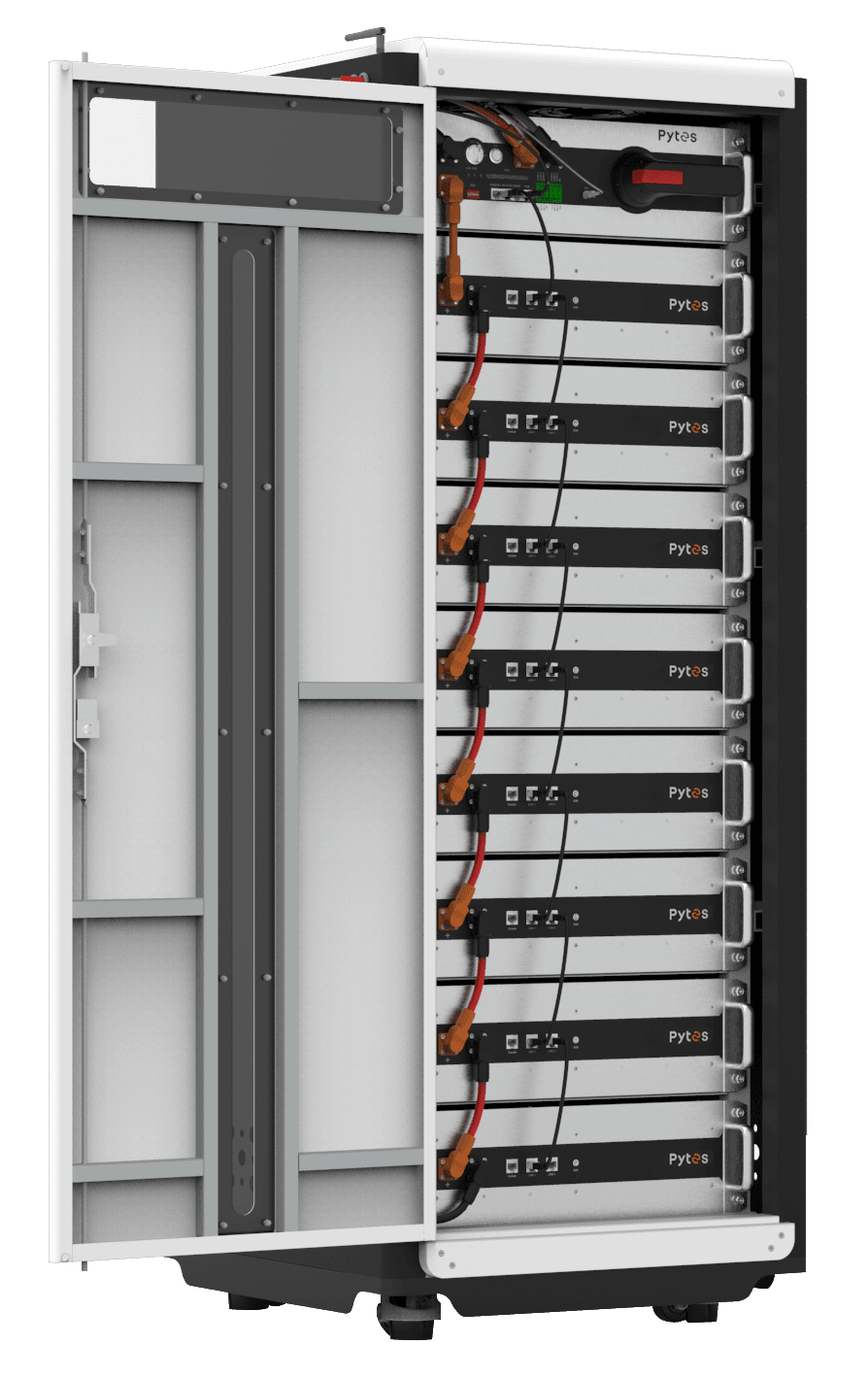

The Pytes HV48100 is a high-voltage LFP battery module for indoor installations. Pytes has deployed thousands of these modules worldwide. Paired with the HV48100 Battery Control Unit in an IP20 cabinet, it forms a complete high-voltage storage system built on Tier-1 automotive-grade cells and Pytes' own field-proven BMS. Systems scale from 25.6kWh to 76.8kWh per stack and on to MWh-level capacity. Common uses are commercial buildings, light industry, agriculture, EV charging and off-grid sites.
Highlights
- High efficiency: the high-voltage design greatly reduces current, which cuts heat losses and boosts round-trip efficiency
- Modular and scalable from residential to large C&I installations
- Wide voltage operating range, compatible with all major high-voltage inverter brands
- Business value: reduces demand charges, enables peak shaving and solar self-consumption, and provides commercial backup
- Remote monitoring and firmware upgrades over Wi-Fi
- Communication: CAN, RS485 and dry contact
Specifications
| Chemistry | LFP (LiFePO4) |
| Nominal voltage | 51.2V per module |
| Nominal capacity / energy | 100Ah / 5.12kWh |
| System capacity | 25.6–76.8kWh per stack |
| Recommended DoD | 80% |
| Cycle life | ≥6,000 cycles |
| Communication | CAN, RS485, dry contact, Wi-Fi |
| IP rating | IP20 (indoor) |
| Dimensions | 19.06 × 20.87 × 5.51 in |
| Weight | 94.8 lbs (43 kg) |
| Warranty | 10-year Pytes warranty |
Requires the Pytes HV48100 Battery Control Unit (sold separately).
| Manufacturer | Pytes |
|---|---|
| Model Number | HV48100 BMU (Battery Module Unit) |
| Chemistry | LFP |
| Nominal Voltage | 51.2 V |
| Voltage Range | 47.5-57.6 V |
| Nominal Capacity | 100 Ah |
| Nominal Energy | 5.12 kWh |
| Continuous Charge/Discharge Current | 50 Adc |
| Communication | CAN, RS485 |
| Dimensions (W x D x H) | 19.06 x 20.87 x 5.51 in (484 x 530 x 140 mm) |
| Weight | 94.8 lb (43 kg) |
| System | 5-15 BMUs per BCU, 256-768 V, 25.6-76.8 kWh |
| Certifications | UL 9540 Ed.3, UL 9540A, UL 1973, CEC, SGIP |
| Cycle Life | 6,000 cycles |
| Warranty | 10 years or 6,000 cycles |
Specifications are from the manufacturer and may change. Questions? Call (888) 831-0450.
Pytes 10 years or 6,000 cycles (BMU and BCU) warranty
| HV48100 8S/12S/15S indoor | BMU and BCU 10 years |
|---|
Download: Pytes HV48100 SE Series Warranty (US)
Manufacturer warranties are provided by the manufacturer. Keep your invoice as proof of purchase. Questions about a warranty claim? Call (888) 831-0450.
