- 20.48 kWh outdoor LFP battery bank
- 4 x Pytes V5° 5.12 kWh batteries
- IP55 V-BOX-OC outdoor cabinet
- Integrated busbar and DC circuit breaker
- Battery heating film for cold-weather charging
- Batteries: 10-year / 6,000-cycle warranty
Ships by LTL freight. Too large for parcel delivery. Questions on freight? Call (888) 831-0450.
We accept

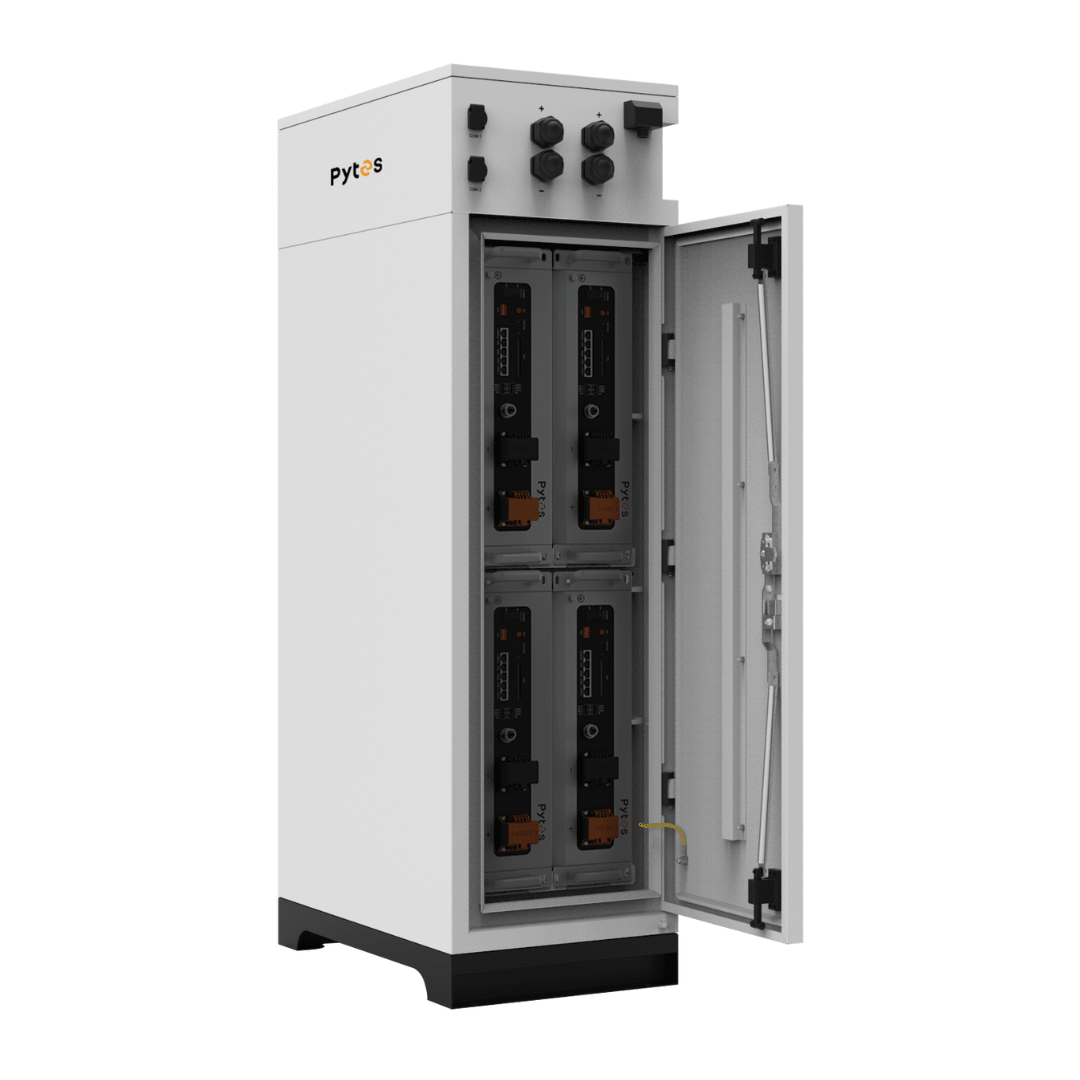

Four Pytes V5 lithium batteries come pre-matched with the V-BOX-OC enclosure for a clean, weather-resistant 20.48kWh battery bank. The cabinet organizes the batteries and wiring with an integrated busbar and DC breaker, and works indoors or out. It gives homeowners dependable backup for essential loads, more value from daily solar, and room to grow.
Highlights
- 20.48kWh of usable LiFePO4 storage
- Long-term reliability: V5 batteries rated for 6,000+ cycles
- Clean installation: integrated busbars and DC breaker in one cabinet
- Indoor or outdoor: IP55 enclosure
- Expandable: add batteries and cabinets in parallel for longer runtimes
- Optional remote monitoring with the Pytes V5 WiFi Stick
What's included

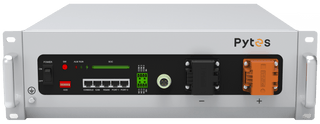

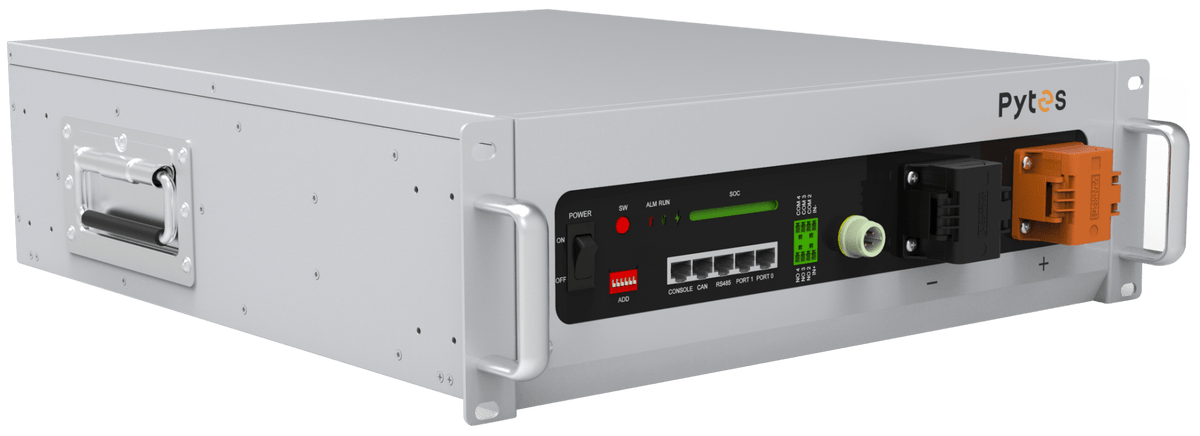

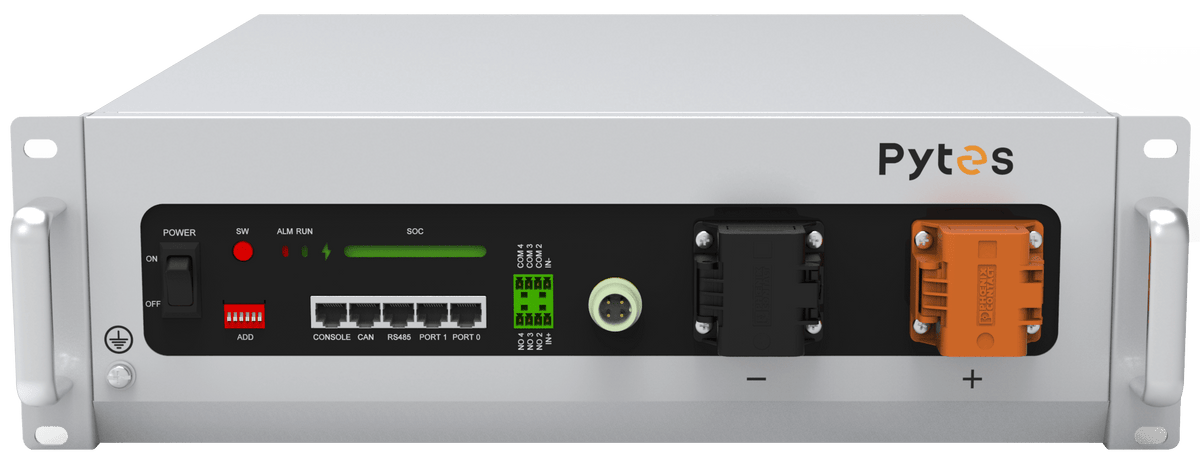

- 4× Pytes V5 LiFePO4 battery (5.12kWh each)

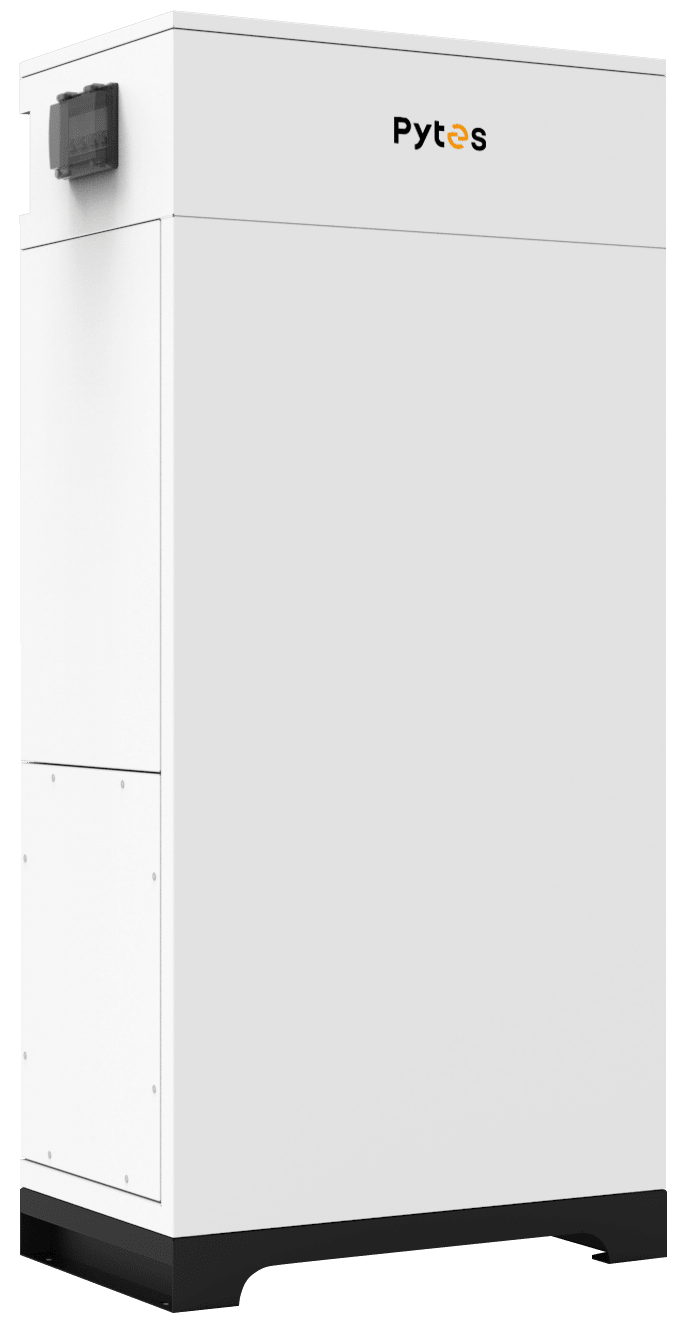

- 1× Pytes V-BOX-OC outdoor cabinet
Specifications
| Total storage | 20.48kWh |
| Nominal voltage | 51.2V |
| Chemistry | LiFePO4 |
| Communication | CAN / RS485 |
| Enclosure rating | IP55 |
| Combined weight | ~582 lbs |
| Warranty | 10-year Pytes warranty on V5 batteries |
Ideal for backup power, solar storage and energy independence. Ships by freight. Professional installation recommended.
| Manufacturer | Pytes |
|---|---|
| Included | 4 x Pytes V5° battery (SKU 1650001) + 1 x V-BOX-OC outdoor cabinet |
| Total Energy | 20.48 kWh (4 x 5.12 kWh) |
| Battery | 51.2 V 100 Ah LFP, 100 A max charge/discharge each |
| Cabinet | IP55, integrated busbar and DC breaker, floor mount |
| Cabinet Dimensions (L x W x H) | 25.4 x 15.6 x 54.9 in |
| Battery Certifications | UL 9540, UL 9540A, UL 1973, CEC, SGIP |
| Approximate Total Weight | 582 lb (4 x 97 lb + 194 lb) |
| Battery Warranty | 10 years or 6,000 cycles |
Specifications are from the manufacturer and may change. Questions? Call (888) 831-0450.
Pytes 10 years or 6,000 cycles (whichever first) warranty
| Coverage | V5/V5α/V5α Plus, 70% capacity retained at end of term |
|---|---|
| Start | earlier of invoice date or manufacture date + 6 months |
| How to claim | contact the seller with proof of purchase, defect description, serial number and install date |
Download: Pytes V5° / V5°α / V5°α Plus Terms of Warranty (Americas)
Manufacturer warranties are provided by the manufacturer. Keep your invoice as proof of purchase. Questions about a warranty claim? Call (888) 831-0450.
