- Indoor freestanding rack battery
- LFP chemistry, 5.12 kWh modules
- Built-in aerosol fire suppression
- UL9540 / UL9540A certified
- Pairs with Sol-Ark commercial hybrid inverters
- Scalable to 9.6 MWh
- 10-year product warranty
Ships by LTL freight. Too large for parcel delivery. Questions on freight? Call (888) 831-0450.
We accept

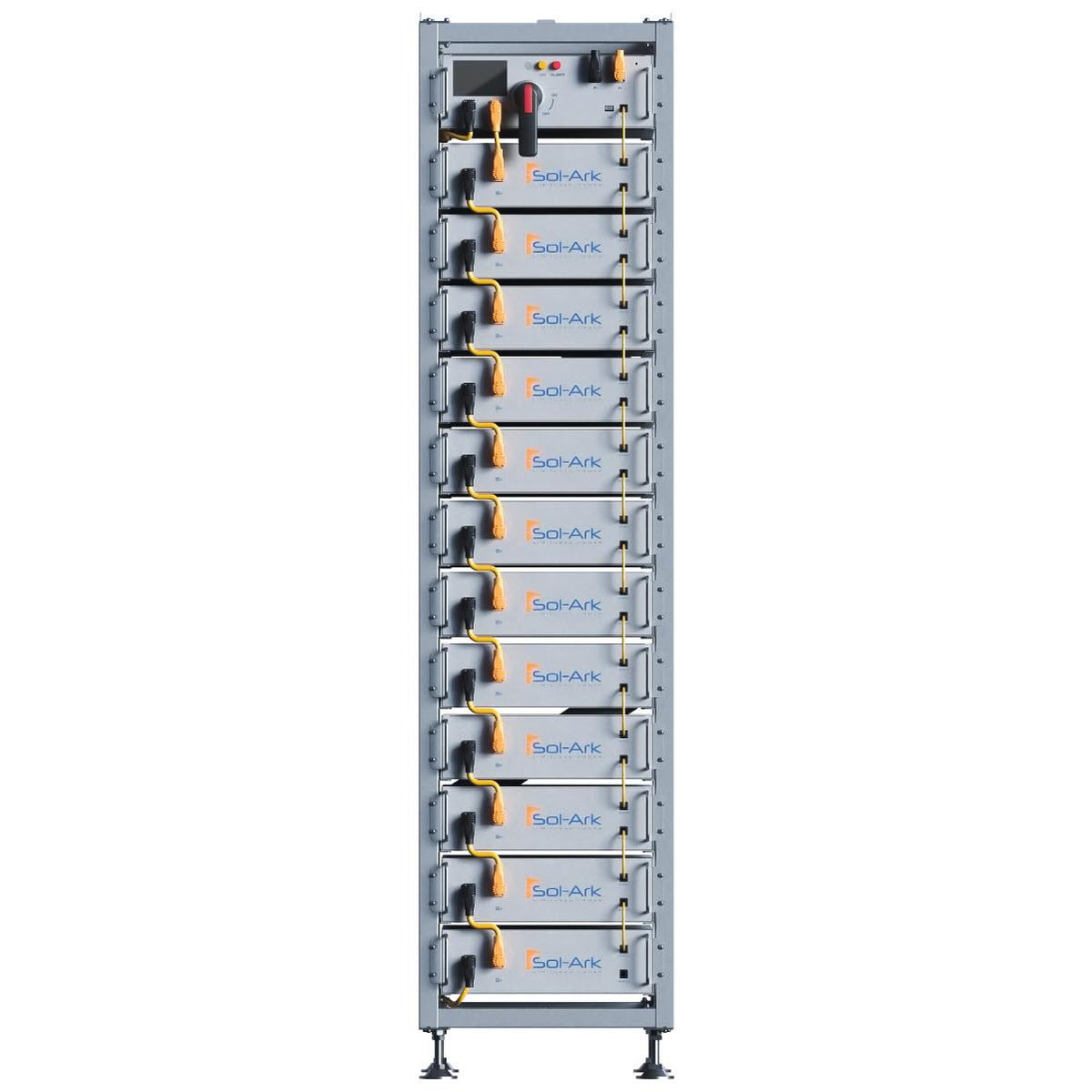

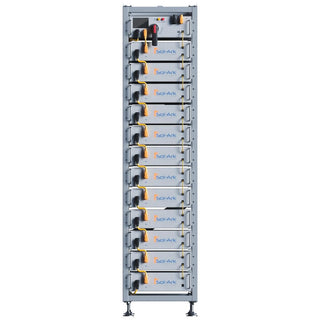

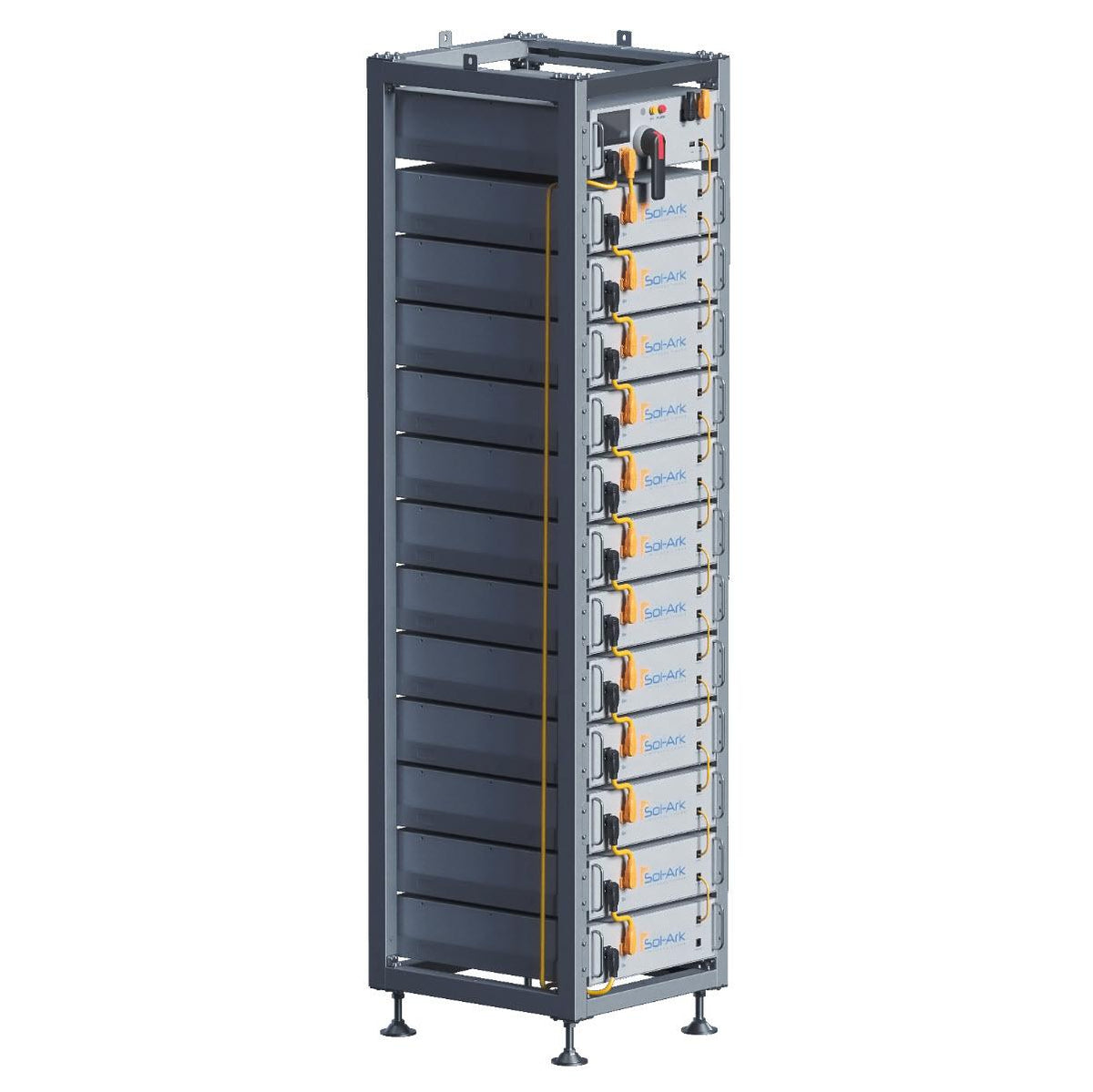

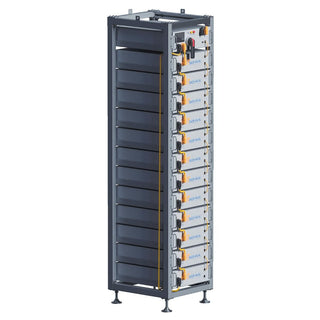

The indoor 480V version of Sol-Ark's L3 Series battery. The HV-60 stacks 61.44kWh of LFP modules in a powder-coated freestanding rack with module- and cabinet-level aerosol fire suppression. Pair it with the 60K-3P-480V and scale to 16 batteries per inverter and 10 inverters, for up to 600kWac and 9.6MWh.
Highlights
- 61.44kWh nameplate, 55.30kWh usable
- Indoor IP20, under 40 dBA
- Built-in fire suppression
- Up to 9.6MWh per system
Specifications
| Compatible inverter | Sol-Ark 60K-3P-480V |
| Chemistry | LFP; 12 × 5.12kWh modules (12s1p) |
| Nominal / operating voltage | 614.4V / 588–672V |
| Charge/discharge current | 50A recommended; 100A max; 125A peak (60 s) |
| Max DC power | 61.44kW |
| Round-trip efficiency | 94% |
| Dimensions (W × D × H) | 23 × 23 × 86 in |
| Net weight | 1,705 lbs (773 kg) |
| Operating temperature | 40 to 110°F |
| Certifications | UL 1973, UL 9540, UL 9540A, UN38.3, FCC |
| Warranty | 10-year product; 10 years or 196MWh throughput |
Ships by freight.
| Manufacturer | Sol-Ark |
|---|---|
| Model Number | L3 HV-60 (L3-HV-60KWH) |
| Chemistry | Lithium Iron Phosphate (LFP) |
| Nameplate Energy | 61.44 kWh DC |
| Usable Energy | 55.30 kWh (90% DOD) |
| Module | 5.12 kWh, 51.2 V / 100 Ah; 12s1p |
| Nominal Voltage | 614.4 V (588-672 V operating) |
| Current | 50 A recommended, 100 A max continuous, 125 A peak 60 s |
| Max AC Power (ESS) | 60 kW |
| Mounting | freestanding rack, indoor |
| Enclosure | IP20 (NEMA 1) |
| Operating Temp | 4 to 43 C |
| Certifications | UL1973, UL9540, UL9540A, UN38.3, FCC |
| Compatible Inverter | Sol-Ark 60K-3P-480V |
| Dimensions (WxDxH) | 58 x 58 x 218 cm |
| Weight | 1,705 lb (773 kg) |
| Warranty | 10-year product; 10 yr or 196 MWh throughput |
Specifications are from the manufacturer and may change. Questions? Call (888) 831-0450.
Sol-Ark 10-Year Product Warranty (performance 10 years or throughput limit)

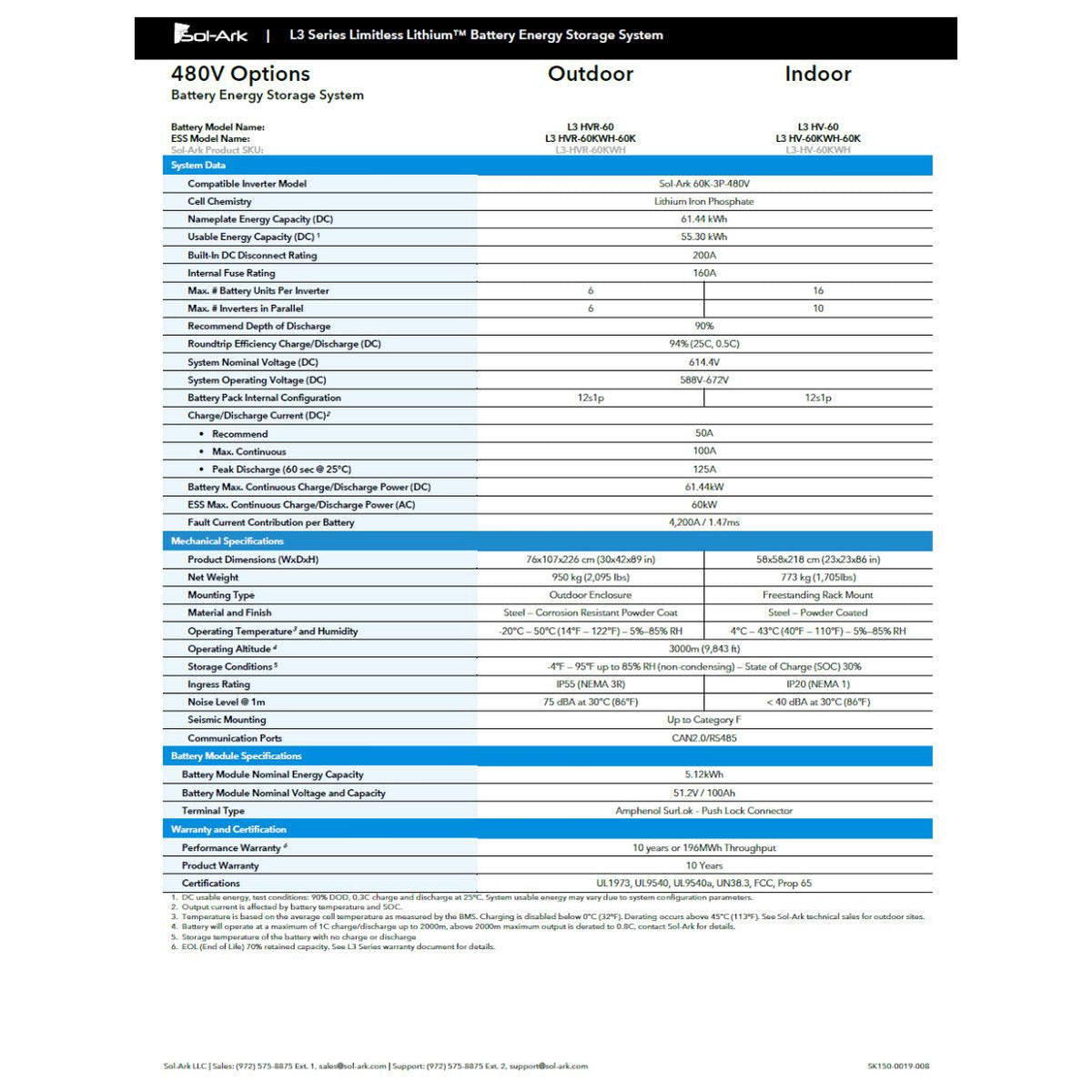

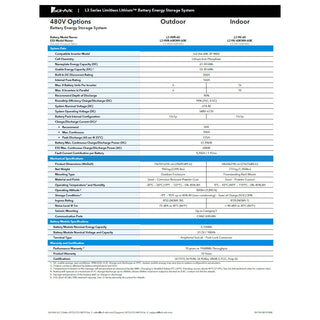

| Datasheet | 10-year product warranty |
|---|---|
| Performance | 10 yr or 196 MWh (HV-60) / 130 MWh (HV-40) |
| Manual | failing to follow instructions may void warranty |
| How to claim | Sol-Ark support +1-972-575-8875 ext. 2 |
Manufacturer warranties are provided by the manufacturer. Keep your invoice as proof of purchase. Questions about a warranty claim? Call (888) 831-0450.
