Ships by freight. This item is too large for parcel delivery. After you order, we'll contact you within 1 business day with the freight cost and delivery options (liftgate, residential). Your order ships only after you approve the quote.
Need installation or sizing help? Call (888) 831-0450 or ask an expert.
Secure checkout
- Rated up to 185 mph wind and 60 psf snow
- S350 steel with Zn-Al-Mg (ZAM) corrosion coating
- 60-cell, 72-cell and large-format modules
- Landscape or portrait module orientation
- 5-degree canopy tilt
- UL 2703 certified
- Pier, spread or grade beam footer options
- 25-year life / 10-year quality warranty
Ships by LTL freight. Too large for parcel delivery. Questions on freight? Call (888) 831-0450.
We accept
Product Documents
- ChikoUSA Maximo 185 Steel 1-Car Carport/Gazebo Data Sheet (CK-QLCP-1CM185-STEEL)
- ChikoUSA Maximo 185 Steel 2-Car Carport/Gazebo Data Sheet (CK-QLCP-2CM185-STEEL)
- ChikoUSA Maximo 185 Steel 3-Car Carport/Gazebo Data Sheet (CK-QLCP-3CM185-STEEL)
- ChikoUSA Maximo 185 Steel 4-Car Carport/Gazebo Data Sheet (CK-QLCP-4CM185-STEEL)
- ChikoUSA Maximo-185 1-Car Installation Manual (02.30.26)
- ChikoUSA Maximo-185 3-Car Installation Manual (02.30.26)
- ChikoUSA Maximo-185 4-Car Installation Manual (02.30.26)
- ChikoUSA Solar Carport Warranty (25-Year Life & 10-Year Quality Warranty)

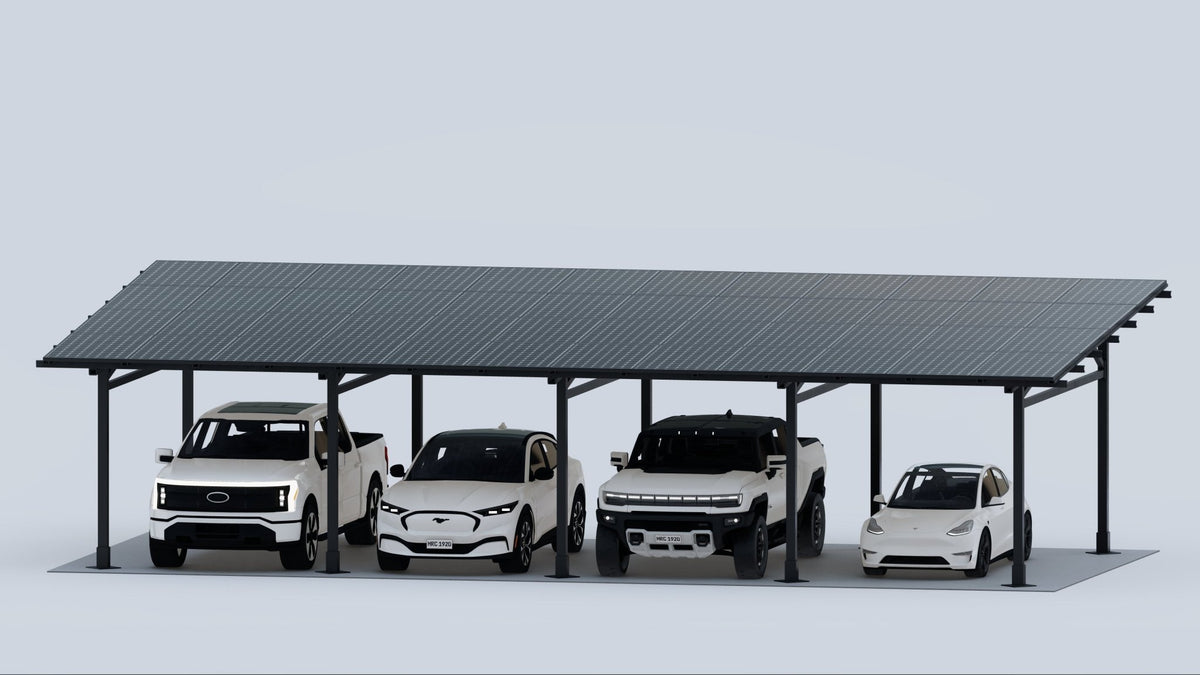

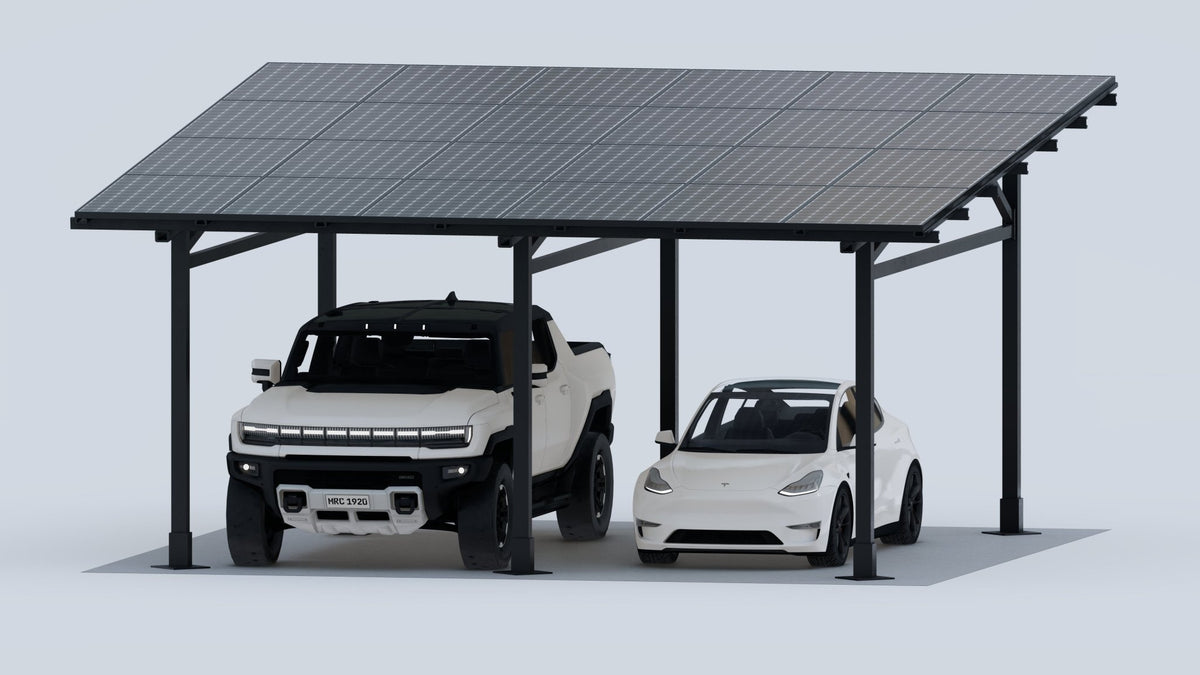

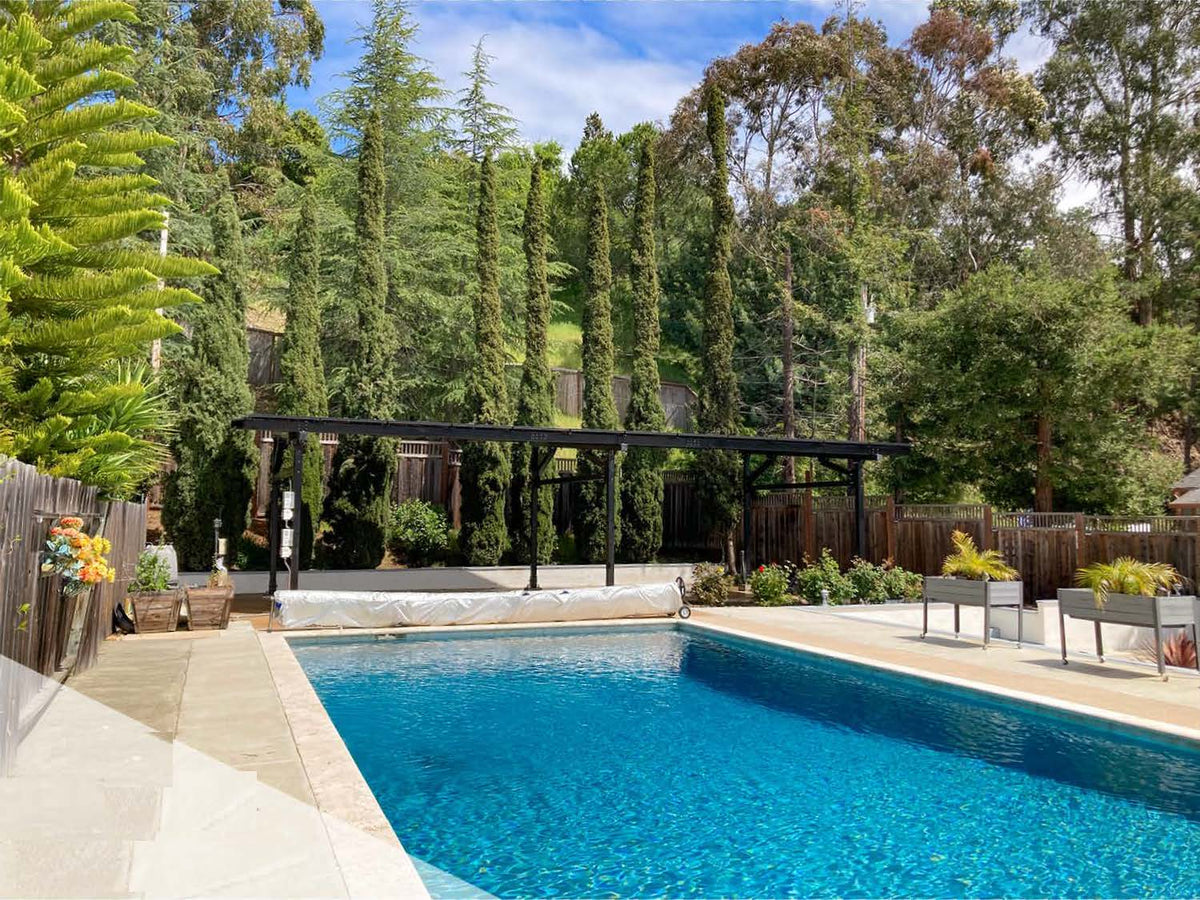

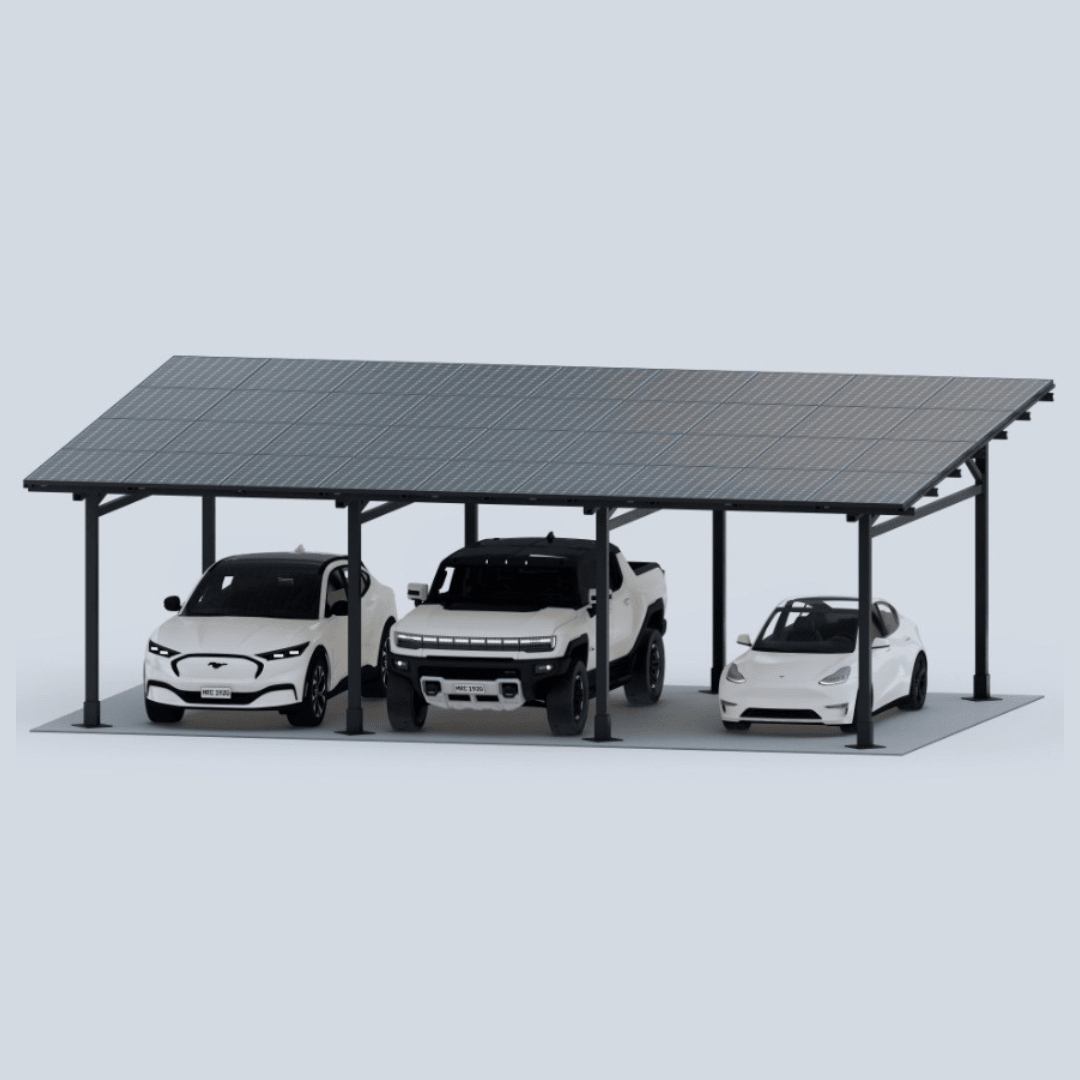

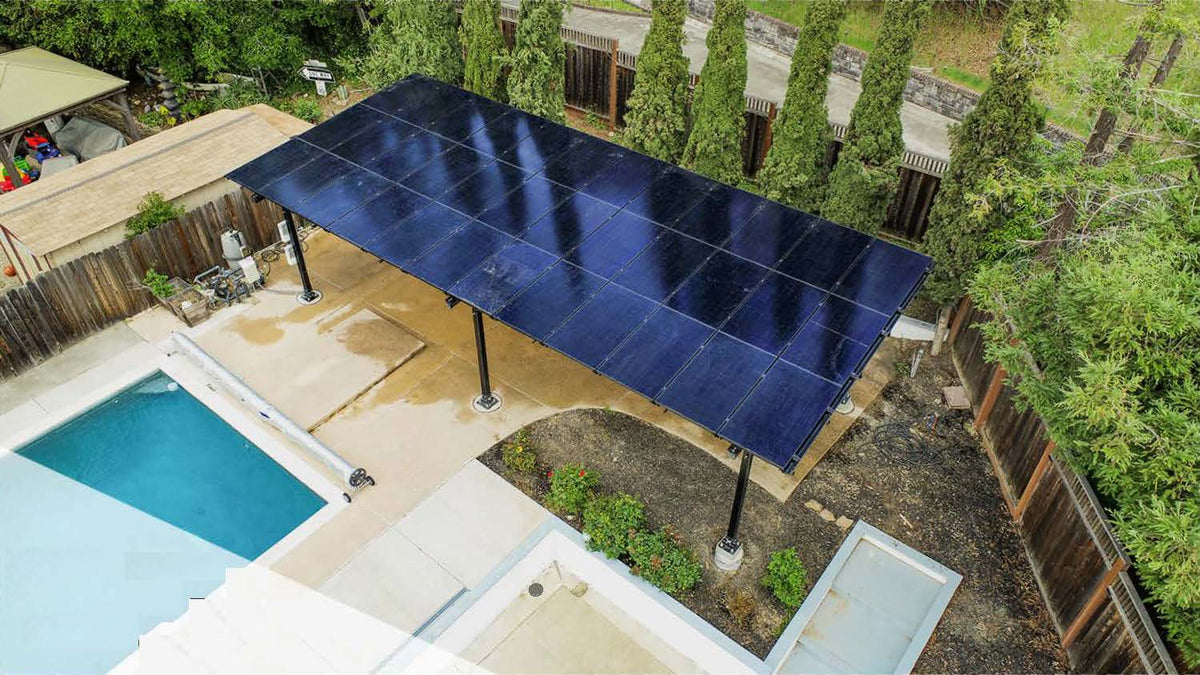

Built for the toughest weather, the Maximo 185 is ChikoUSA's heavy-duty steel solar carport and gazebo, rated for 185 MPH winds and 60 PSF snow. It shades and protects vehicles, boats and equipment, creates outdoor living space, and carries a solar array in landscape or portrait. Choose 1, 2, 3 or 4-car sizes for homes, farms, RV storage or commercial parking.
Highlights
- Extreme weather: up to 185 MPH wind, 60 PSF snow (2–4 car)
- ZAM Tough steel: S350 with Zn-Al-Mg coating, suited to coastal and high-salt areas
- Solar-ready: wide range of panel sizes, landscape or portrait
- More usable space for parking, entertaining or storage
- UL 2703 certified
ZAM Tough Coating: Steel That Doesn't Rust Like Everyone Else's
Every ChikoUSA carport and gazebo is built from ZAM Tough steel. ZAM stands for zinc, aluminum and magnesium, a next-generation hot-dip coating. As it weathers, the aluminum and magnesium form a dense, tightly bonded layer on top of the zinc, so the coating itself wears away far more slowly. ChikoUSA rates it at at least 3× the corrosion resistance of standard galvanized steel, the plain zinc coating used on many competing carports.
- Coastal and salt air: resists red rust in salt-spray conditions far better than standard hot-dip galvanized steel.
- Farms and livestock: holds up to the chloride and ammonia found around barns and animal housing.
- Bends and formed edges: keeps protecting even where the steel has been bent, which is usually where galvanized steel rusts first.
- Proven outdoors: in 8 years of outdoor exposure testing, ZAM showed about 4× the corrosion resistance of galvanized steel in both rural and coastal settings.
See the difference: salt spray test (JIS Z 2371)
Bent sections after salt spray
Test images and results provided by ChikoUSA.
Specifications
| Sizes | 1-car, 2-car (24 panels), 3-car (36 panels), 4-car (48 panels) |
| Wind rating | Up to 185 MPH (2–4 car); 1-car up to 150 MPH |
| Snow load | Up to 60 PSF |
| Material | S350 steel, Zn-Al-Mg coating |
| Heights | Standard 8 ft, 10 ft and 14 ft available |
| Certification | UL 2703 |
| Warranty | 25-year life, 10-year quality warranty |

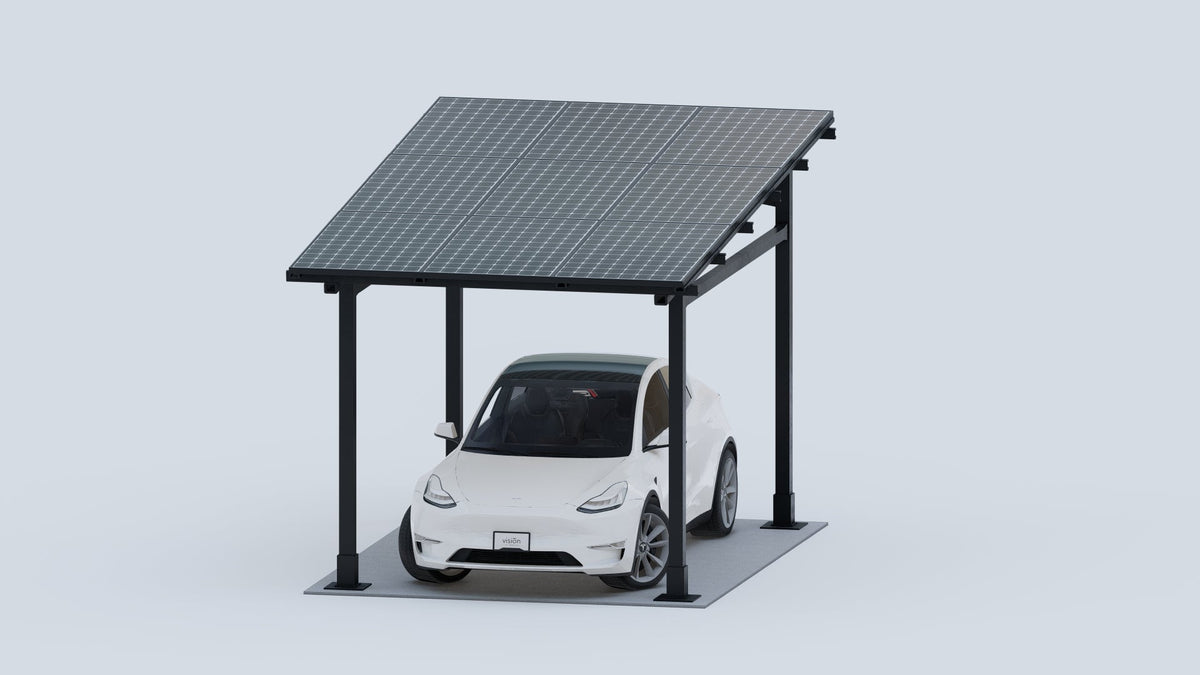

1-car size: ChikoUSA uses the same single-car structure in both the Premier and Maximo series (SKU 1615017). It's rated up to 150 MPH wind with a 5° tilt and ships at about 1,764 lbs.
Solar panels sold separately. Ships directly by freight; call for a quote when ordering 2 or more.
| Manufacturer | ChikoUSA |
|---|---|
| Models | CK-QLCP-1CM185-STEEL to CK-QLCP-4CM185-STEEL (1 to 4 car) |
| Wind Rating | up to 185 mph |
| Snow Load | up to 60 psf |
| Material | S350 steel, Zn-Al-Mg (ZAM) coating |
| Colors | silver or black |
| Tilt Angle | 5 degrees |
| Module Compatibility | 60-cell, 72-cell and large-format modules, landscape or portrait |
| Footprint (data sheet drawings) | 1-car 11.25 x 22.5 ft; 2-car 22.5 x 22.5 ft; 3-car 33.75 x 22.5 ft; 4-car 45 x 22.5 ft |
| Columns | 4 (1-car), 6 (2-car), 8 (3-car), 10 (4-car) |
| Foundation | pier, spread or grade beam footers |
| Waterproofing | optional |
| Certification | UL 2703 |
| Warranty | 25-year life, 10-year quality |
Specifications are from the manufacturer and may change. Questions? Call (888) 831-0450.
ChikoUSA 25-Year Expected Life / 10-Year Quality Warranty
| Coverage | material and manufacturing defects in Chiko-made components; Chiko repairs or replaces at its option |
|---|---|
| Finish | free of visible defects, peeling and cracking for 1 year; painted finishes excluded from the 10-year quality warranty |
| Requirements | installed per Chiko written instructions; owner inspects installation twice a year (loose bolts etc.) |
| Exclusions | installation labor, improper installation, modifications, coastal salt exposure unless specified, natural disasters, non-Chiko parts |
| How to claim | contact ChikoUSA (info@chikousa.com, 1-800-948-5390) or your sales agent promptly |
Download: ChikoUSA Solar Carport Warranty (25-Year Life & 10-Year Quality Warranty)
Manufacturer warranties are provided by the manufacturer. Keep your invoice as proof of purchase. Questions about a warranty claim? Call (888) 831-0450.
| Size |
1 Car Carport, 2 Car Carport | 24 Panels, 3 Car Carport | 36 Panels, 4 Car Carport | 48 Panels |
|---|
