- 12kW output (15kW with PV on IV-15000 model)
- 24kW PV input across 2 MPPTs
- Parallel up to 16 units
- 100A grid and 90A generator bypass
- Closed-loop comms with EG4 48V batteries
- Plug-in Wi-Fi module for EG4 monitoring
- Rapid shutdown ready (NEC 690.12)
- 5-year limited warranty
Ships by parcel (UPS / FedEx).
We accept

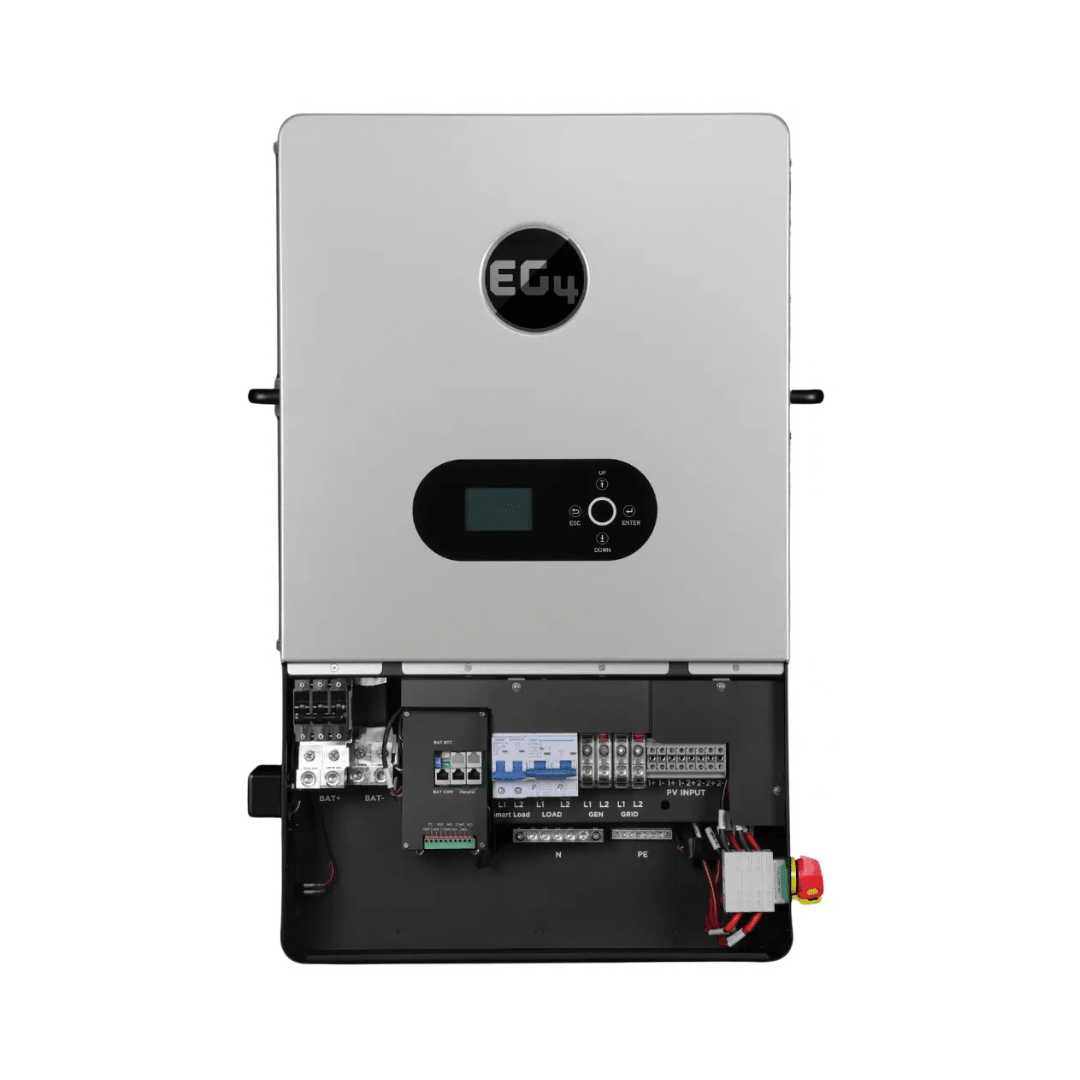

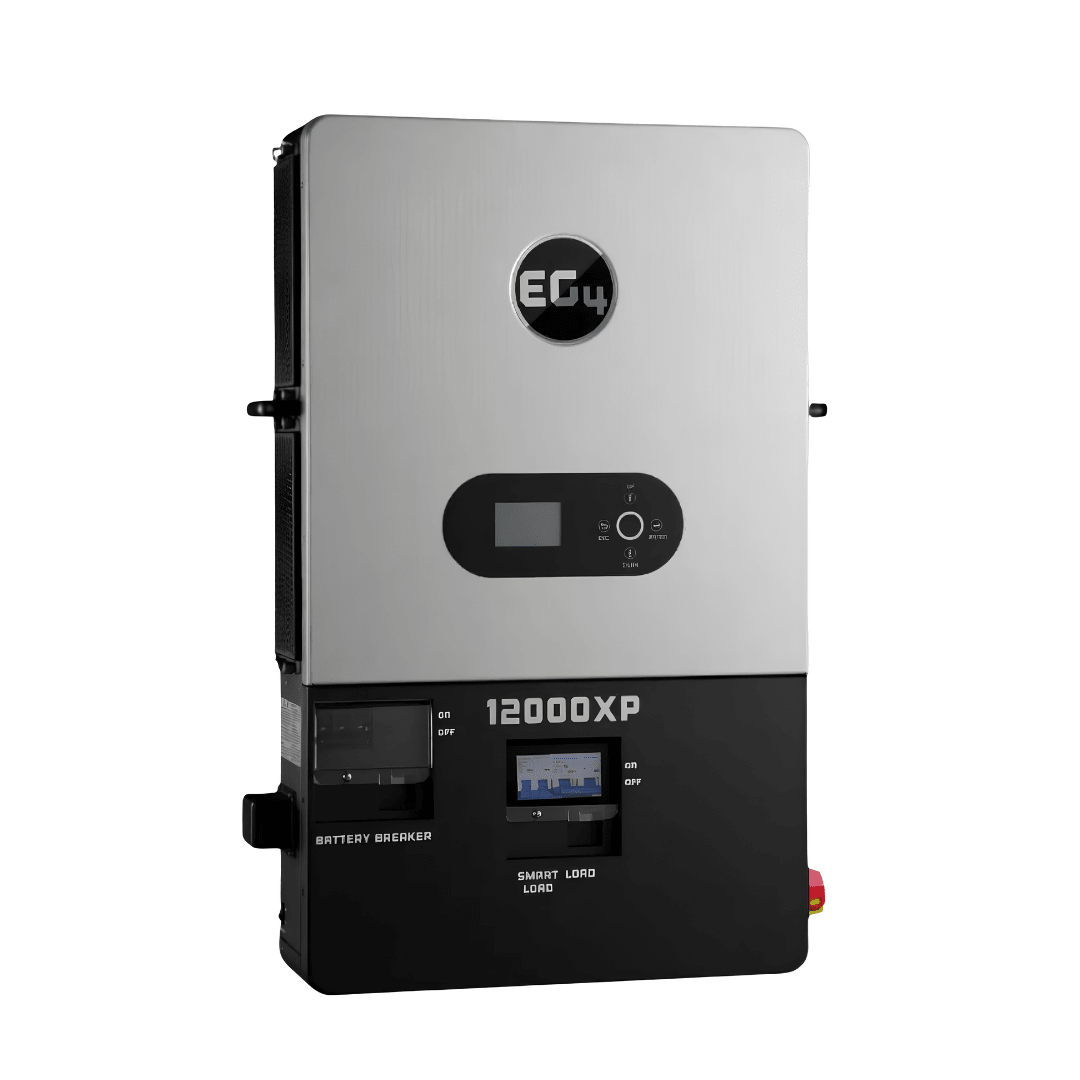

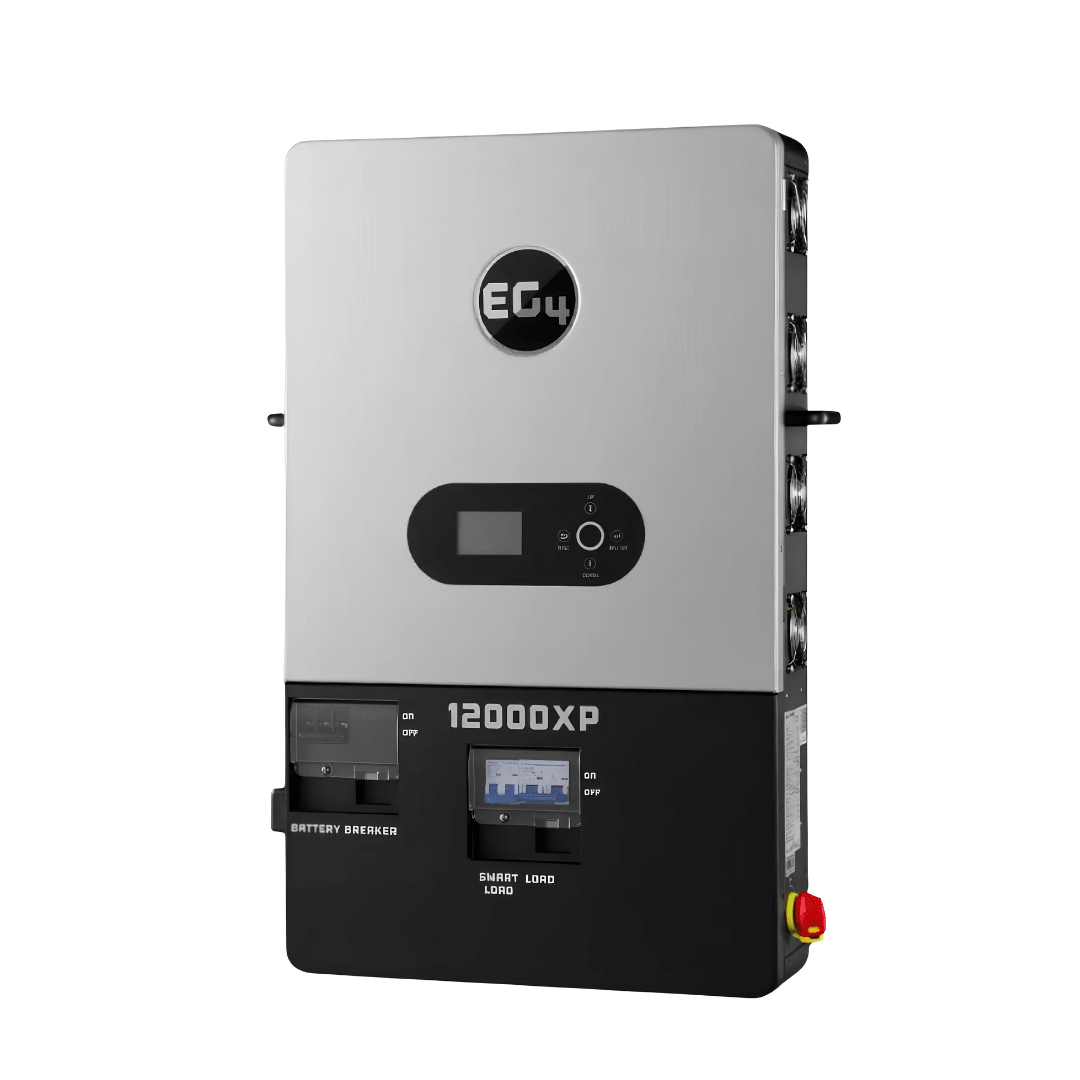

The EG4 12000XP V2 is a high-capacity split-phase off-grid inverter built for continuous, dependable power at homes, cabins and remote properties. It accepts up to 24kW of solar at up to 480VDC without a combiner box, tracks two strings independently, and delivers 12kW from batteries. The IV-15000-XP-IN-01 model reaches 15kW with PV input. Built for demanding off-grid use, it scales to 16 parallel units (up to 240kW).
Highlights
- High-voltage PV: up to 480VDC and 24kW, which reduces cabling and simplifies design
- Dual MPPT: two independently tracked strings for stable harvest in changing conditions
- Built-in Wi-Fi monitoring through the EG4 app and Monitor Center
- Closed-loop battery communication with EG4 48V batteries and supported brands for accurate charging and protection
- Smart load port: load shedding, AC coupling or dedicated circuits
- Parallel up to 16 units (up to 240kW)
- NEC 690.12 rapid-shutdown ready
Ideal for
Residential homes, cabins, off-grid properties and remote sites, plus commercial and light-industrial systems that need scalable storage and multi-inverter configurations.
Specifications
| Nominal output | 12,000W without PV / 15,000W with PV* |
| PV input | Up to 24,000W, 480VDC max |
| MPPTs | 2 |
| Battery voltage | 48V |
| Recommended battery capacity | >400Ah per inverter |
| Output | 120/240V split phase |
| Operating temperature | 32–113°F |
| Connectivity | Plug-in Wi-Fi module (EG4 app / EG4 Monitor) |
| Dimensions | 34.25 × 20.87 × 5.91 in |
| Weight | 104.7 lbs |
| Warranty | 5-year EG4 manufacturer warranty |
*15kW output applies only to model IV-15000-XP-IN-01.
| Manufacturer | EG4 Electronics |
|---|---|
| Model Number | IV-12000-XP-IN-01 (15kW output only on IV-15000-XP-IN-01) |
| AC Output with PV | 15,000W @ 240V (13,000W @ 208V) |
| AC Output without PV | 12,000W @ 240V |
| Surge | 15,360W for ~10 s |
| Max Solar Power | 24,000W (12,000W per MPPT) |
| Max PV Voltage | 500 VDC (100-480 VDC input range) |
| MPPTs | 2 (120-385 VDC operating) |
| Battery | 48 VDC, 250A max charge/discharge |
| AC Output | 120/240VAC; 208VAC |
| AC Bypass | 100A grid / 90A generator |
| Idle Consumption | <70W |
| Enclosure | IP20 (indoor) |
| Operating Temp | 32 to 113°F (0 to 45°C) at full load |
| Dimensions (HxWxD) | 34.25 x 20.87 x 5.91 in (870 x 530 x 150 mm) |
| Weight | 104.7 lb (47.5 kg) |
| Certifications | UL 1741, FCC Part 15 Class B |
| Warranty | 5 years |
Specifications are from the manufacturer and may change. Questions? Call (888) 831-0450.
EG4 5-year limited warranty
| Coverage | 5-year full parts or full product replacement from original purchase date |
|---|---|
| Registration | register within first year of purchase, or keep proof of purchase from an EG4 authorized distributor |
| Transfer | original purchaser; transferable once if unit stays at original installation site |
| Residential vs commercial | no separate terms stated |
| How to claim | contact original place of purchase (Sky Solar USA) / EG4 support |
Download: EG4 XP Series (12000XP) Warranty Document
Manufacturer warranties are provided by the manufacturer. Keep your invoice as proof of purchase. Questions about a warranty claim? Call (888) 831-0450.
