- 12k BTU multizone wall-mount air handler
- R32 refrigerant
- Pairs with EG4 24K or 36K AC/DC outdoor unit
- Pre-charged quick-connect line sets available
- Quiet operation down to 43 dB(A) at turbo or less
- 5-year limited warranty
Ships by parcel (UPS / FedEx).
We accept

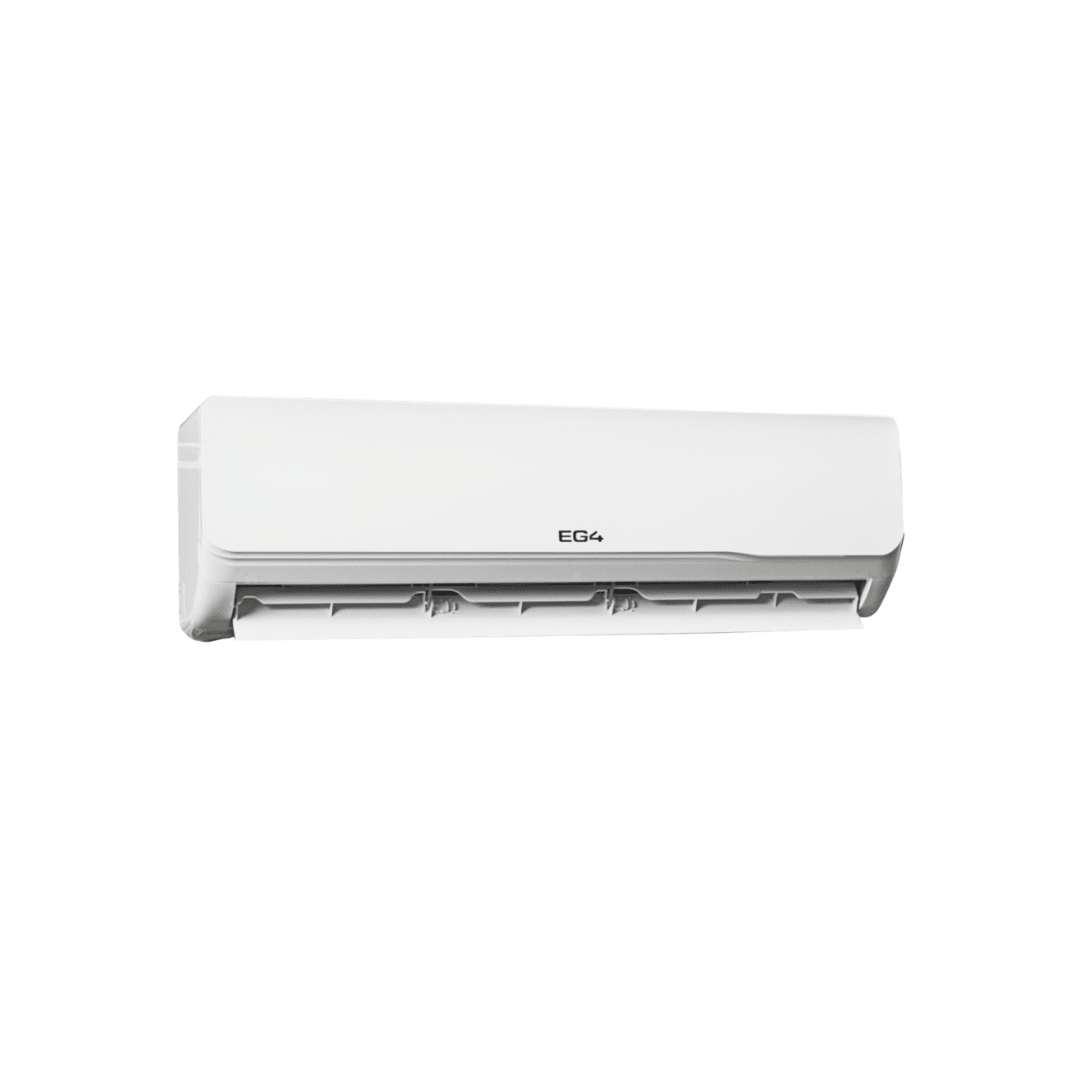

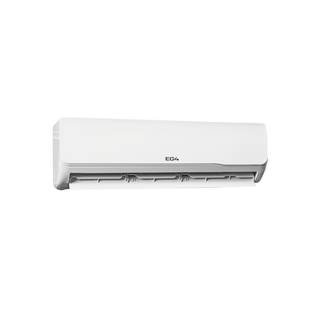

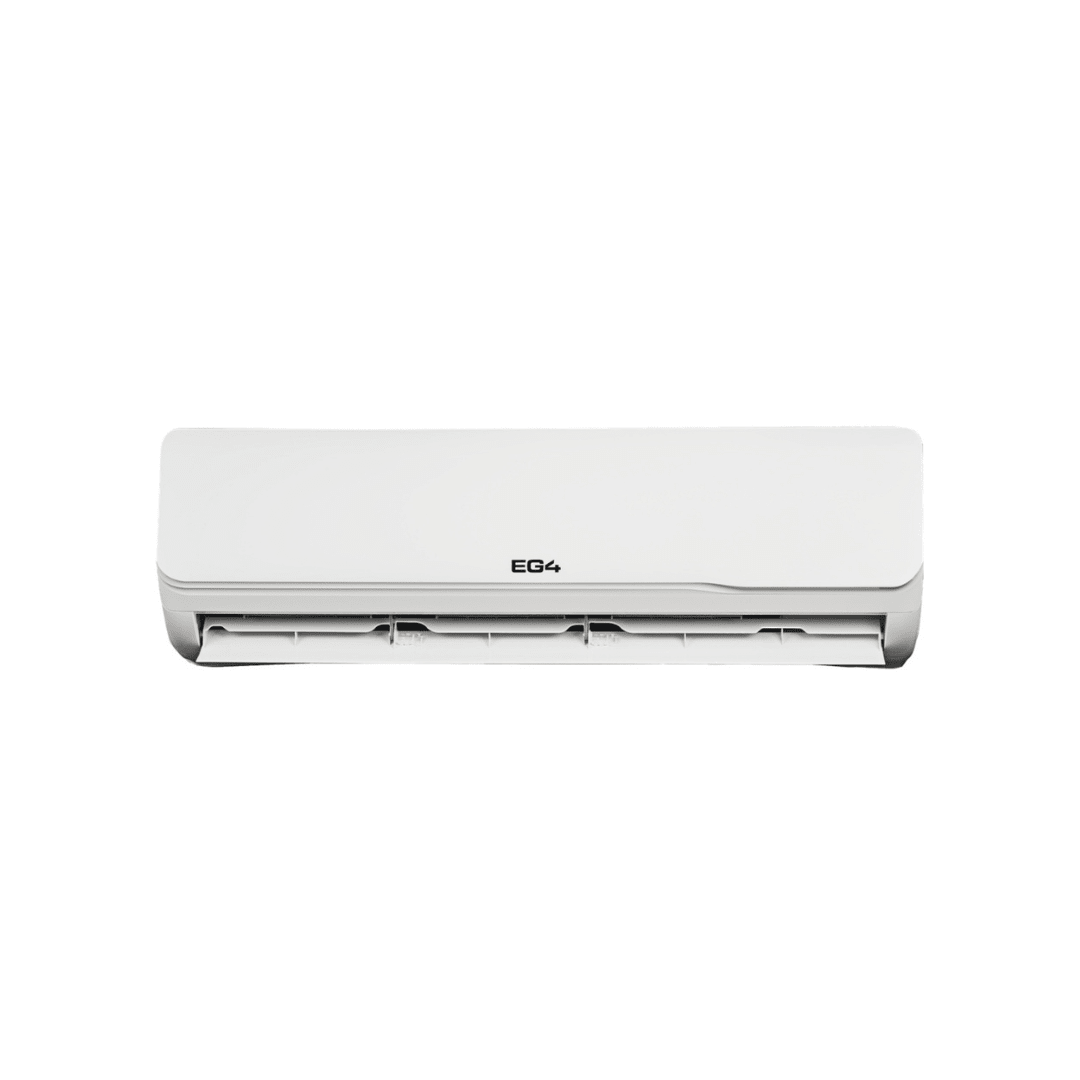

The compact 12,000 BTU head is the building block of most EG4 Hybrid Multizone systems. It's sized for bedrooms, home offices and smaller living spaces of about 300–500 sq. ft., and provides both heating and cooling. Install two or more on an EG4 multizone outdoor unit to control each room independently with the included remote or the Solar Aircon app.
Highlights
- Heating and cooling in a small wall-mounted head
- Flexible layouts: works in 2-, 3- and 4-zone configurations
- Lightweight: about 21 lbs
- Quiet: 43–50 dB; up to 365 CFM airflow
Specifications
| Capacity | 12,000 BTU |
| Recommended room size | 300–500 sq. ft. |
| Max airflow | 365 CFM |
| Noise | 43–50 dB |
| Refrigerant | R32 |
| Dimensions (H × W × D) | 33.1 × 8.1 × 11.6 in |
| Weight | 21 lbs |
| Compatible outdoor units | EG4 24K and 36K Hybrid Multizone |
| Warranty | 5-year EG4 limited warranty |
Note: Each multizone outdoor unit requires at least two indoor heads. The outdoor unit, line sets and communication cable are sold separately.
| Manufacturer | EG4 Electronics |
|---|---|
| Model Number | DGA3-ACDC1-12KR2 |
| Type | Multizone wall-mount indoor unit (12k BTU) |
| Refrigerant | R32 (system) |
| System Power | 208-230 VAC / 60 Hz via outdoor unit |
| Compatible Outdoor Units | EG4 24K (up to 3 zones) and 36K (up to 4 zones) multizone AC/DC |
| Line Set | pre-charged 16.4 ft or 26.2 ft; liquid 1/4 in |
| Noise | 43 dB(A) (turbo) |
| Operating Temp (indoor) | cooling 61-90°F, heating 32-90°F |
| Dimensions (WxDxH) | 33.1 x 8.1 x 11.6 in (840 x 205 x 295 mm) |
| Weight | 20.94 lb net / 26.0 lb packaged |
| Warranty | 5-year limited |
Specifications are from the manufacturer and may change. Questions? Call (888) 831-0450.
EG4 5-year limited product replacement warranty
| Coverage | 5 calendar years from original purchase, all parts exchanges |
|---|---|
| Registration | register within first year, or keep proof of purchase from an EG4 authorized distributor |
| Transfer | original purchaser plus one transferee |
| How to claim | contact original place of purchase or EG4 |
| Note | EG4 mini-split warranty doc lists 9k/12k/12k hybrid/24k hybrid models; multizone units are sold with a 5-year limited warranty per spec sheet |
