- 24k BTU multizone wall-mount air handler
- R32 refrigerant
- Pairs with EG4 24K or 36K AC/DC outdoor unit
- Pre-charged quick-connect line sets available
- Quiet operation down to 50 dB(A) at turbo or less
- 5-year limited warranty
Ships by parcel (UPS / FedEx).
We accept

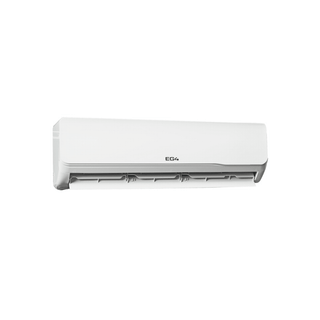

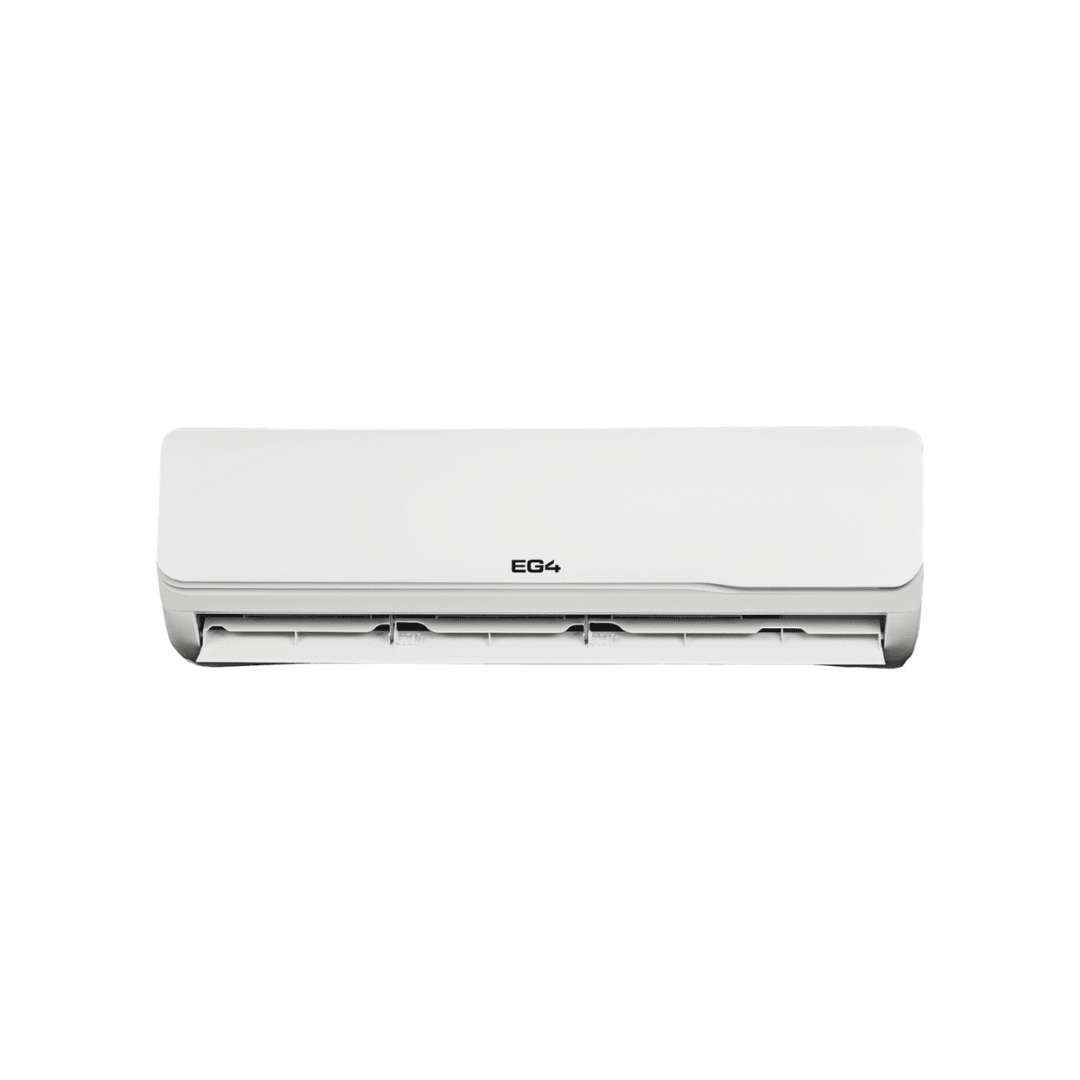

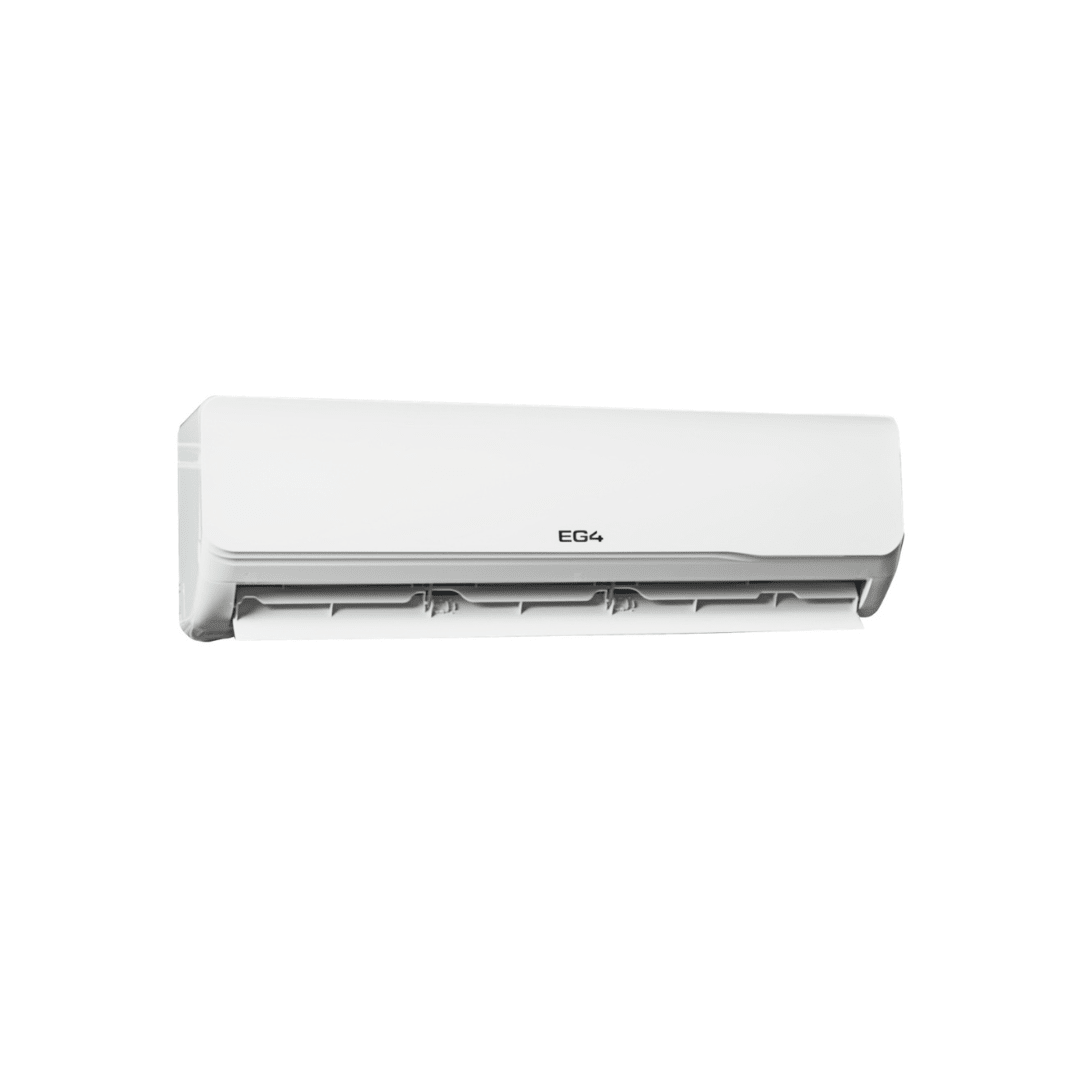

The 24,000 BTU wall-mounted head is the largest indoor unit in the EG4 Hybrid Multizone line. It delivers quiet, efficient heating and cooling for larger rooms of about 1,000–1,250 sq. ft., such as living areas, open floor plans, bonus rooms and shops. Connect it with other EG4 multizone heads to an EG4 36K Hybrid Multizone outdoor unit so each zone runs at its own setpoint. Control comes from the included remote or the Solar Aircon app.
Highlights
- Heating and cooling in one slim, wall-mounted head
- Multizone expansion: combine with 12k and 18k heads
- Installer-friendly: about 33 lbs
- Quiet: 43–50 dB operating range
- Airflow: up to 765 CFM
Specifications
| Capacity | 24,000 BTU |
| Recommended room size | 1,000–1,250 sq. ft. |
| Max airflow | 765 CFM |
| Noise | 43–50 dB |
| Refrigerant | R32 |
| Dimensions (H × W × D) | 42.5 × 9.3 × 13 in |
| Weight | 33.1 lbs |
| Compatible outdoor unit | EG4 36K Hybrid Multizone |
| Warranty | 5-year EG4 limited warranty |
Note: Each multizone outdoor unit requires at least two indoor heads. The outdoor unit, line sets and communication cable are sold separately.
| Manufacturer | EG4 Electronics |
|---|---|
| Model Number | DGA2-ACDC-24KR2 |
| Type | Multizone wall-mount indoor unit (24k BTU) |
| Refrigerant | R32 (system) |
| System Power | 208-230 VAC / 60 Hz via outdoor unit |
| Compatible Outdoor Units | EG4 24K (up to 3 zones) and 36K (up to 4 zones) multizone AC/DC |
| Line Set | pre-charged 16.4 ft or 26.2 ft; liquid 1/4 in |
| Noise | 50 dB(A) (turbo) |
| Operating Temp (indoor) | cooling 61-90°F, heating 32-90°F |
| Dimensions (WxDxH) | 42.5 x 9.3 x 13.0 in (1080 x 236 x 330 mm) |
| Weight | 33.1 lb net / 38.6 lb packaged |
| Warranty | 5-year limited |
Specifications are from the manufacturer and may change. Questions? Call (888) 831-0450.
EG4 5-year limited product replacement warranty
| Coverage | 5 calendar years from original purchase, all parts exchanges |
|---|---|
| Registration | register within first year, or keep proof of purchase from an EG4 authorized distributor |
| Transfer | original purchaser plus one transferee |
| How to claim | contact original place of purchase or EG4 |
| Note | EG4 mini-split warranty doc lists 9k/12k/12k hybrid/24k hybrid models; multizone units are sold with a 5-year limited warranty per spec sheet |
Download: EG4 Mini-Split Warranty Document (5-Year Limited)
Manufacturer warranties are provided by the manufacturer. Keep your invoice as proof of purchase. Questions about a warranty claim? Call (888) 831-0450.
