- Up to 5kW / 100A charging for 48V batteries
- Works with generators and unstable grid power
- Two-wire generator start with warm-up/cool-down
- IP54 enclosure, -40 to 131°F operation

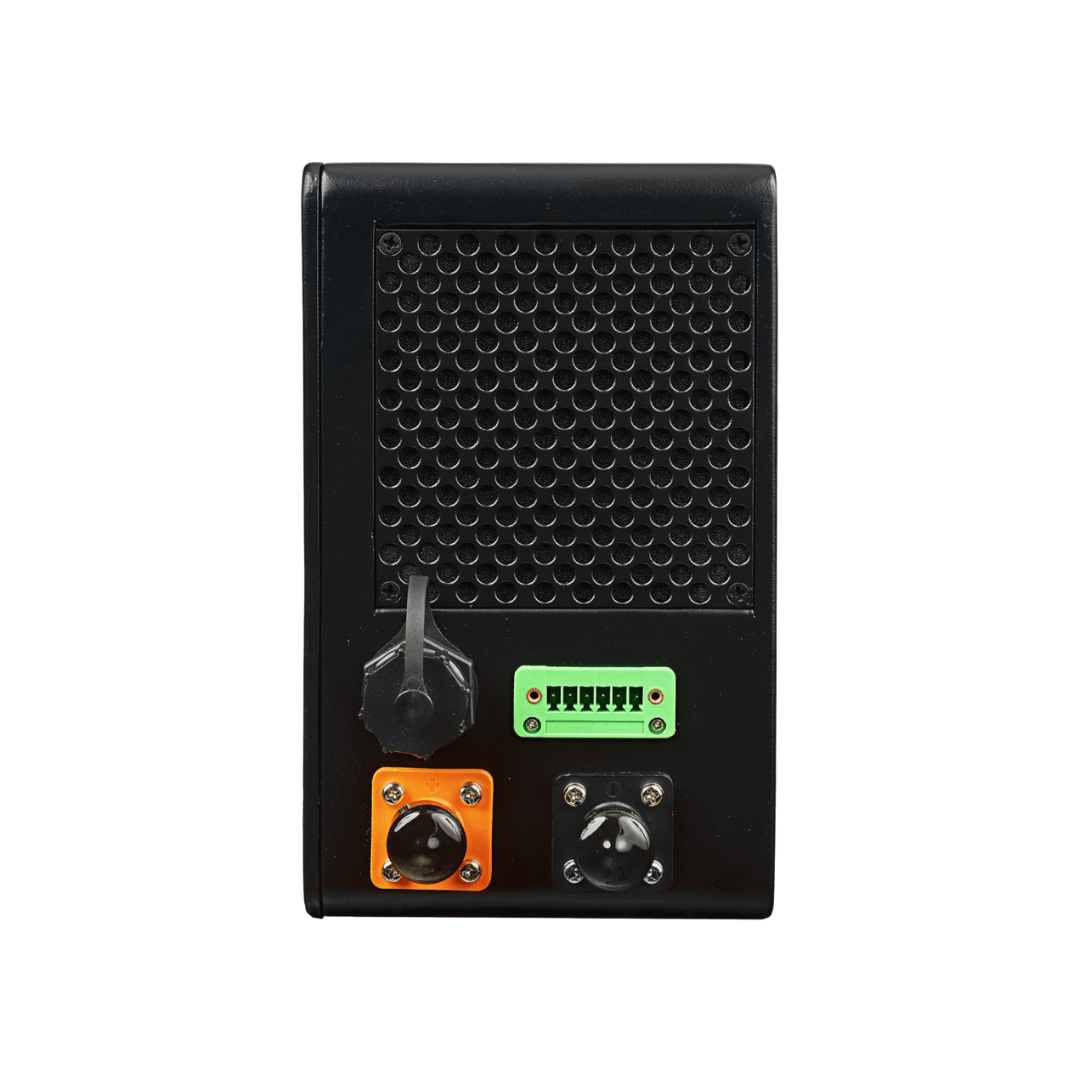

- Quick-connect power and communication ports
- UL 1012 certified
- 3-year limited warranty (indoor use)
Ships by parcel (UPS / FedEx).
We accept

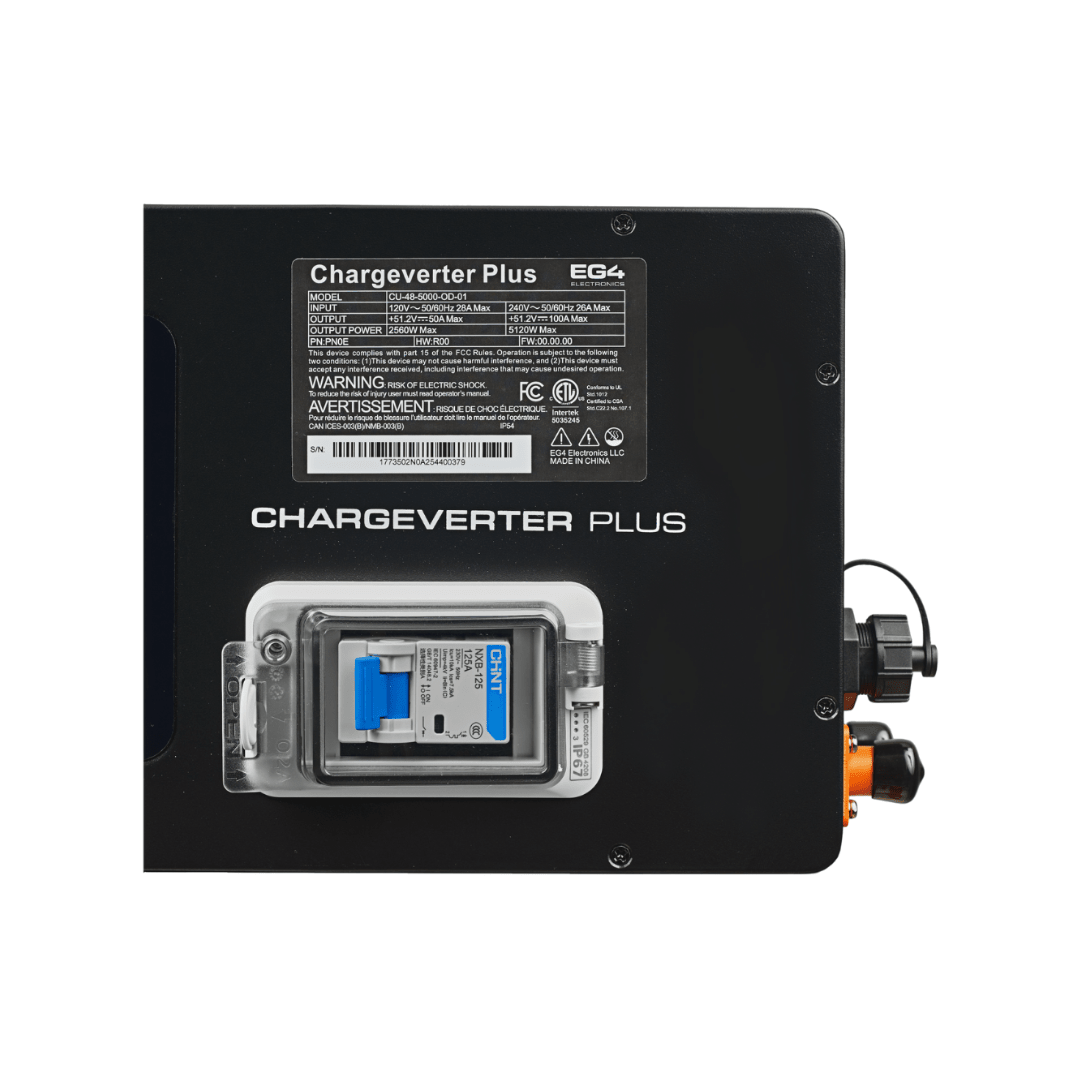

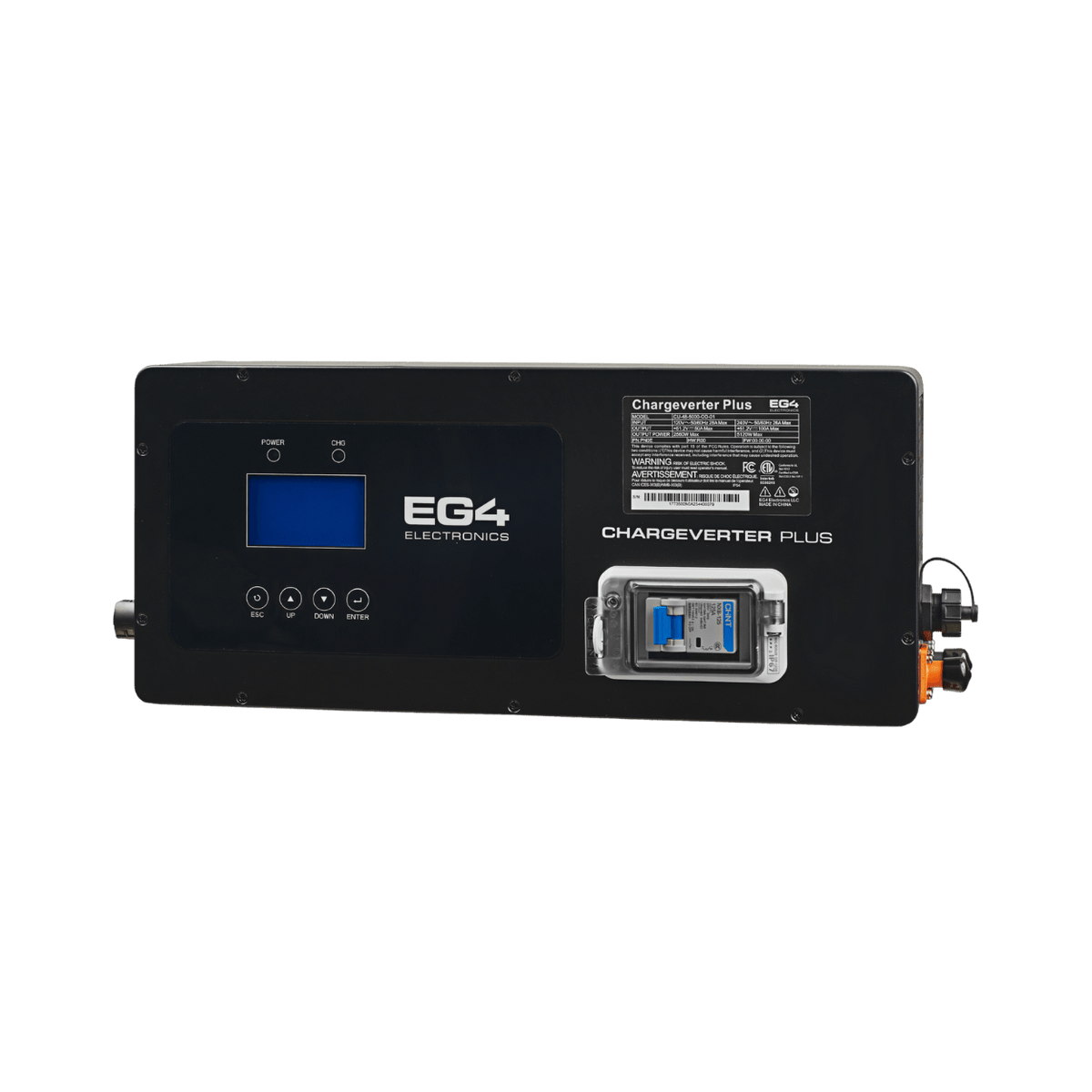

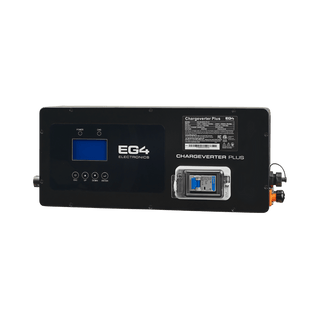

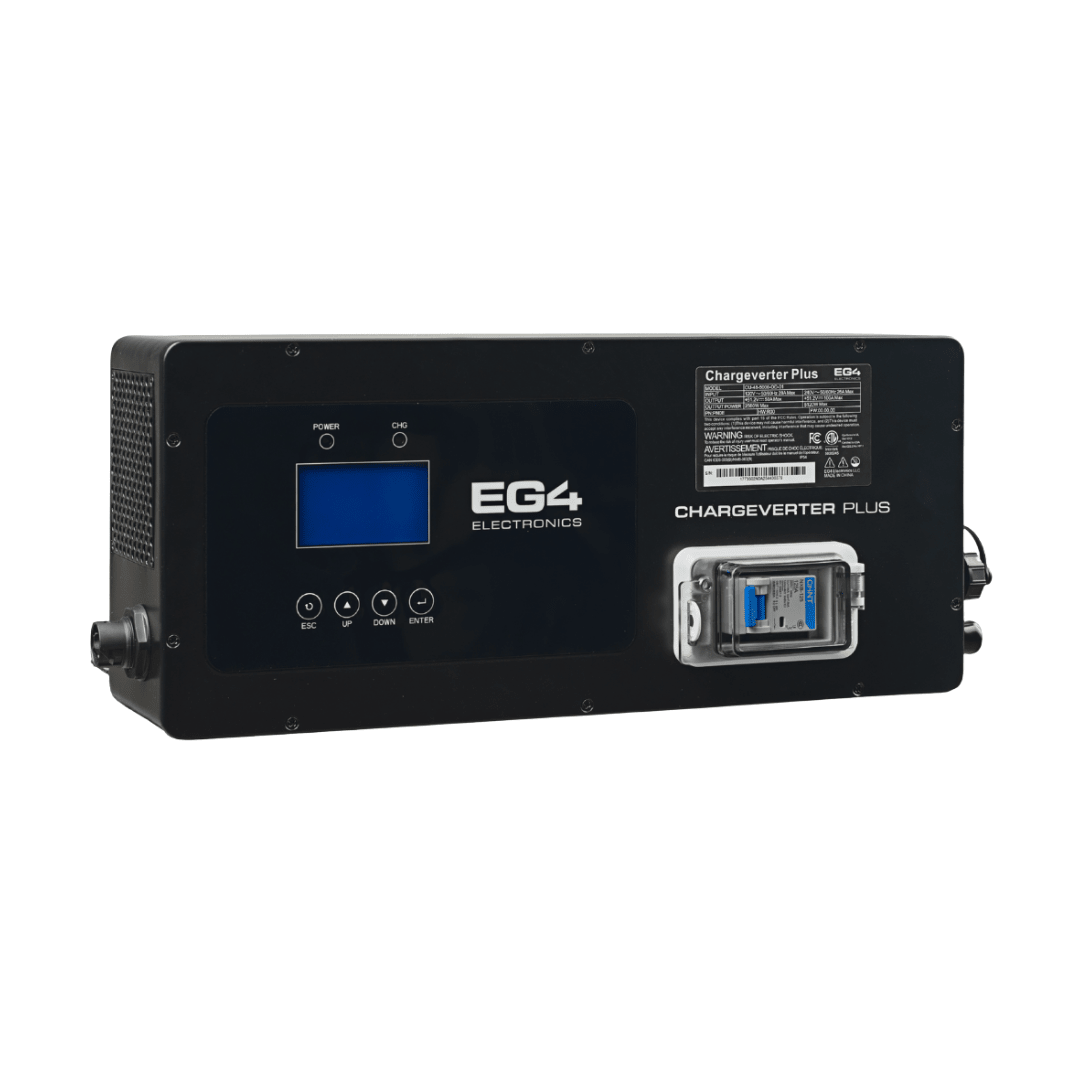

The EG4 Chargeverter Plus (model CU-48-5000-OD-01) is a rugged AC-to-DC battery charger for 48V lithium systems. It sits between a generator and your battery bank, regulating incoming power so you can charge from a generator safely when solar production drops. Because it tolerates the "dirty" power that budget generators produce, it avoids the charging errors and inverter faults that power can cause. It strengthens a solar system with a reliable backup charging path during storms, outages and short winter days.
Highlights
- Up to 100A DC charging on 240VAC (80A on 208VAC, 50A on 120VAC)
- Wide AC input: 90–264 VAC, optimized for 240VAC
- Closed-loop communication: CAN / RS485 for state-of-charge-based charging thresholds; uses battery voltage when no communication is present
- Auto generator start: dry contacts (NO/NC/C) with two-wire start and programmable warm-up and cool-down
- Wide battery support: 40–60V, 15s or 16s lithium
- Built-in breaker for quick output shutoff
- IP54 rated for outdoor installation; UL 1012 listed

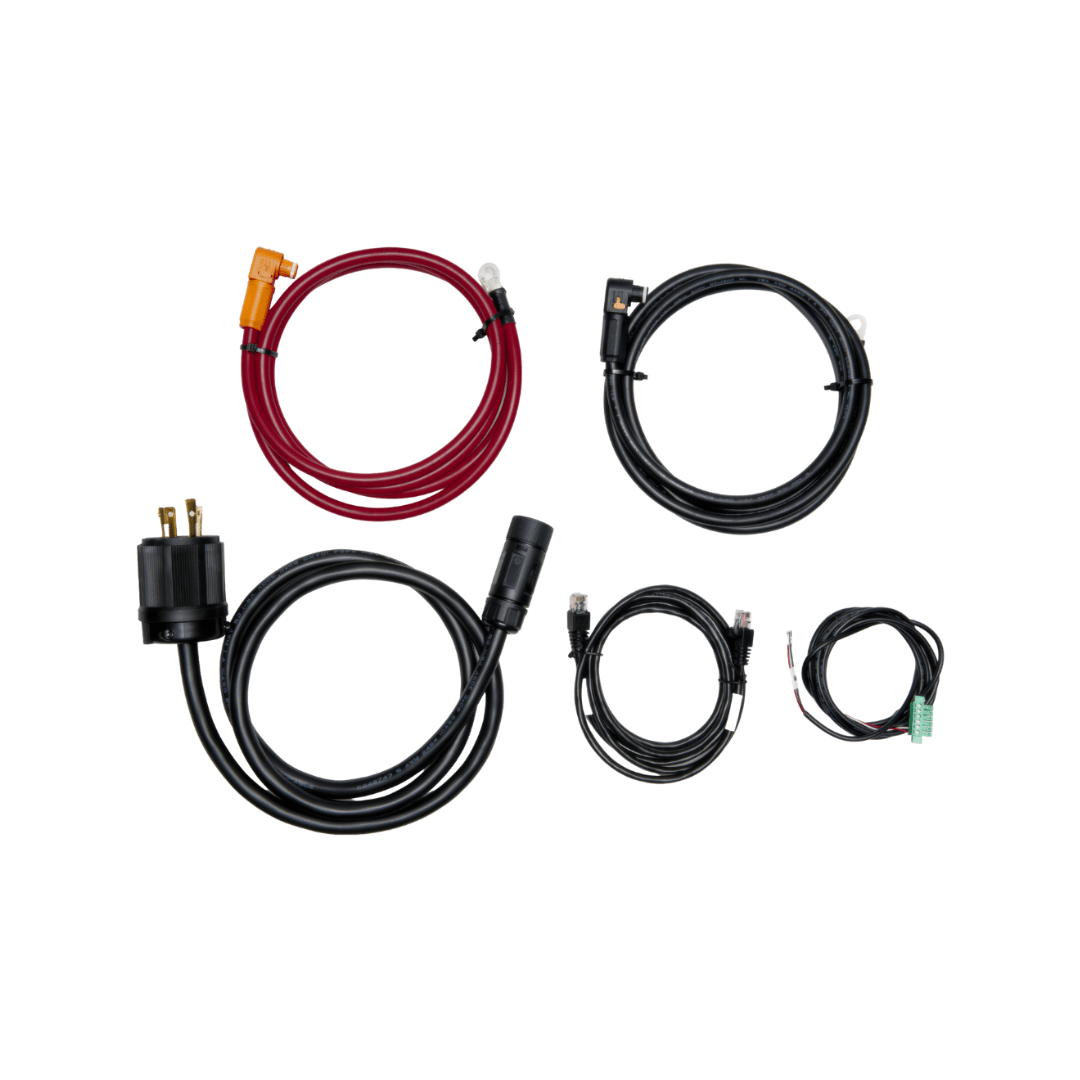

In the box
- Power supply cord
- Dry contact cable
- Red and black 4 AWG battery cables
- CAN/RS485 communication cable (RJ45 to RJ45)
Specifications
| Charge current | 0–100A @ 240V | 0–80A @ 208V | 0–50A @ 120V |
| Charge voltage | 40–60 VDC adjustable |
| Max output | 5,120W @ 240V | 2,560W @ 120V |
| Max input current | 26A @ 240V | 28A @ 120V |
| Idle consumption | ~4W |
| Operating temperature | -40 to 131°F |
| Ingress protection | IP54 |
| Max altitude | 9,843 ft (3,000 m) |
| Certifications | UL 1012, FCC Class B |
| Dimensions (H × W × D) | 4.3 × 16.1 × 7.1 in |
| Weight | 13.67 lbs (6.2 kg) |
| Warranty | 3 years (indoor installation only) |
Note: The EG4 Chargeverter Adapter Cable and the 120V Chargeverter GC Power Cord are sold separately.
| Manufacturer | EG4 Electronics |
|---|---|
| Model Number | CU-48-5000-OD-01 |
| Type | AC-to-48V DC battery charger |
| AC Input | 90-264 VAC, 50-60 Hz |
| Charge Voltage | 40-60 VDC adjustable |
| Charge Current | 0-100A @ 240 VAC (50A @ 120 VAC) |
| Max Output | 5,120W @ 240 VAC |
| Enclosure | IP54 |
| Operating Temp | -40 to 131°F (-40 to 55°C) |
| Dimensions (HxWxD) | 4.3 x 16.1 x 7.1 in (110 x 410 x 180 mm) |
| Weight | 13.67 lb (6.2 kg) |
| Certifications | UL 1012, FCC Class B |
| Warranty | 3 years (indoor use only) |
Specifications are from the manufacturer and may change. Questions? Call (888) 831-0450.
EG4 3-year limited (indoor use only) warranty
| Coverage | 3 years, only when used indoors |
|---|---|
| Registration | per EG4 policy, register within first year or keep proof of purchase |
| How to claim | contact original place of purchase or EG4 |
Manufacturer warranties are provided by the manufacturer. Keep your invoice as proof of purchase. Questions about a warranty claim? Call (888) 831-0450.
