- Holds 6 EG4 server-rack batteries
- 600A busbars with protective covers
- Ships fully assembled, welded steel
- Lockable door, vented panels
- Removable casters, stackable
Ships by LTL freight. Too large for parcel delivery. Questions on freight? Call (888) 831-0450.
We accept
Product Documents

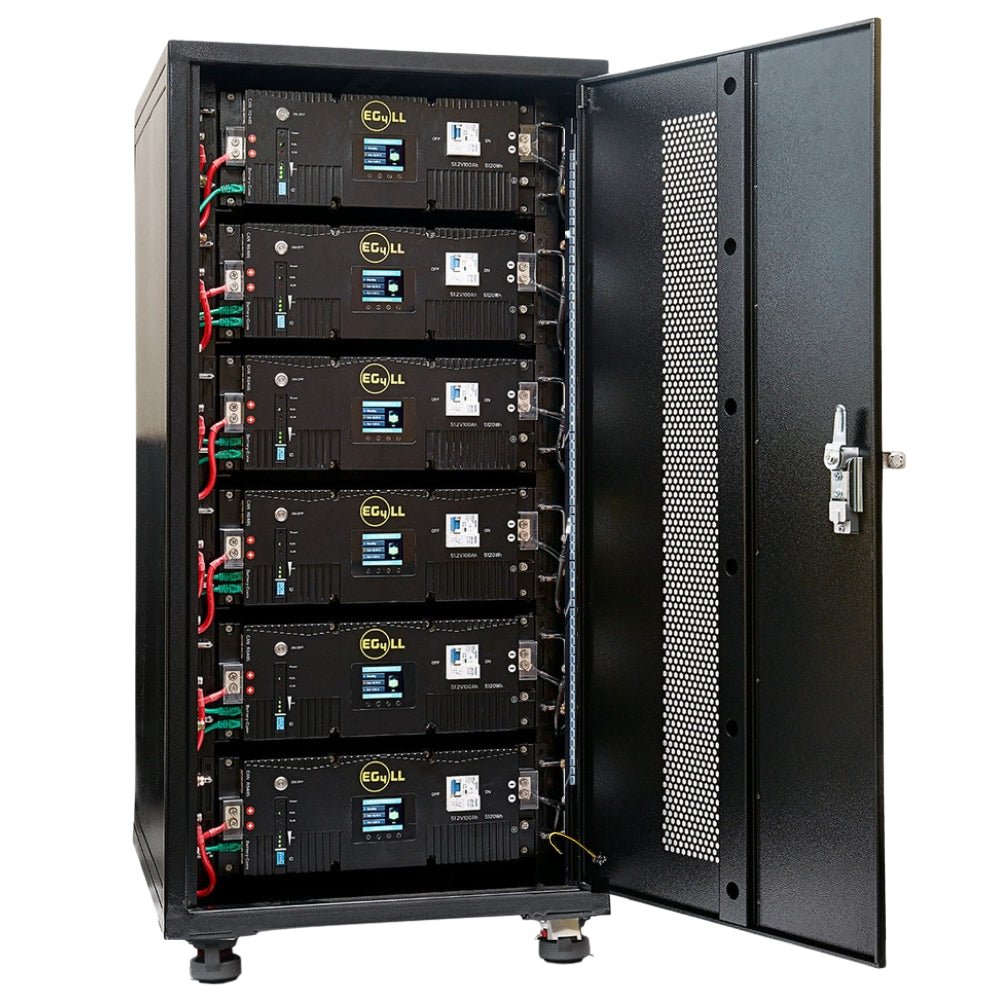

An enclosed, welded steel cabinet for six EG4 server-rack batteries. The hinged door swings open for easy access to batteries and cables, locks to deter tampering and theft, and is vented to keep equipment cool. Heavy-duty 600A bus bars with protective covers tie the bank together, and top and bottom ports make cable routing simple. It arrives fully assembled. Bolt on the included casters for a mobile rack, or leave them off to stack cabinets.
Highlights
- Six battery slots
- 600A bus bars with protective covers

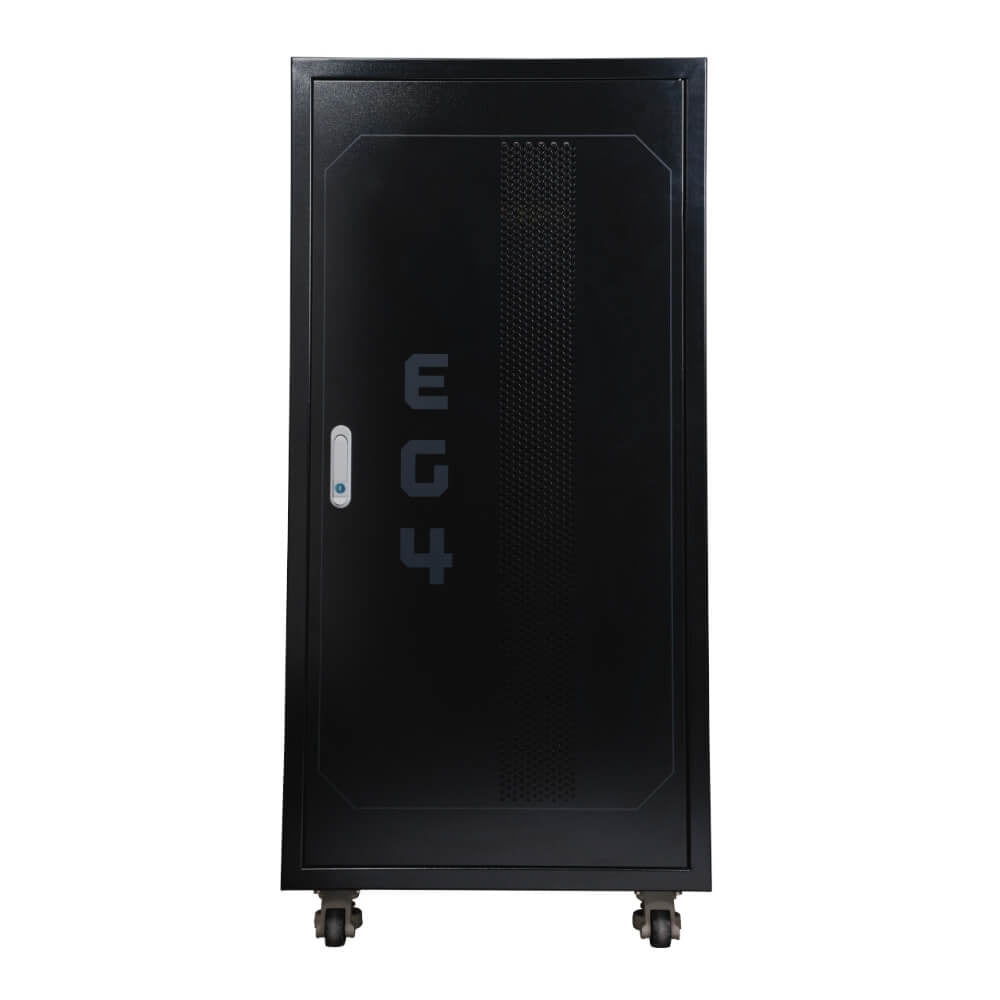

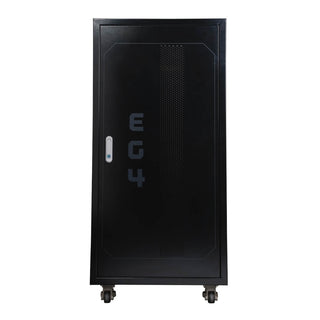

- Hinged, locking, vented front door
- Top and bottom cable ports
- Heavy-duty welded steel with durable powder-coat finish
- Ships assembled; removable casters and hardware packed inside
Specifications
| Slots | 6 |
| Bus bars | 600A, covered |
| Dimensions (with casters, W × D × H) | 23.6 × 26.8 × 49.4 in |
| In the box | Assembled 6-slot rack, casters, hardware |
| Manufacturer | EG4 Electronics |
|---|---|
| Model Number | BC-6-WD-00 (Welded Indoor Cabinet) |
| Capacity | 6 server-rack battery slots |
| Busbars | 600A max, with protective covers |
| Construction | welded heavy-duty steel, powder-coated |
| Dimensions (WxDxH) | 23.6 x 26.8 x 46.9 in (50.1 in with casters) |
| Weight | 156 lb incl. casters |
| Features | lockable hinged door, vented panels, top/bottom cable ports, removable casters |
Specifications are from the manufacturer and may change. Questions? Call (888) 831-0450.
3-year standard warranty
| Coverage | EG4 Welded Indoor Battery Cabinet (6-slot, model BC-6-WD-00), "STANDARD WARRANTY 3 years" per the EG4 manual spec table |
|---|---|
| Voided by incorrect servicing or re-assembly, or by failing to torque the terminal bolts properly | |
| How to claim | contact the distributor (place of purchase); EG4 support: support@eg4electronics.com, (903) 609-1988 |
Manufacturer warranties are provided by the manufacturer. Keep your invoice as proof of purchase. Questions about a warranty claim? Call (888) 831-0450.
