- SnapINverter mounting for easy install and service
- Dynamic Peak Manager shade-tolerant MPP tracking
- SuperFlex Design for flexible system design
- Integrated data logging, WLAN, Ethernet and web server
- Zero feed-in: feed-in management from 0-100%
- Fronius 10-year limited warranty (extendable)
Ships by parcel (UPS / FedEx).
We accept

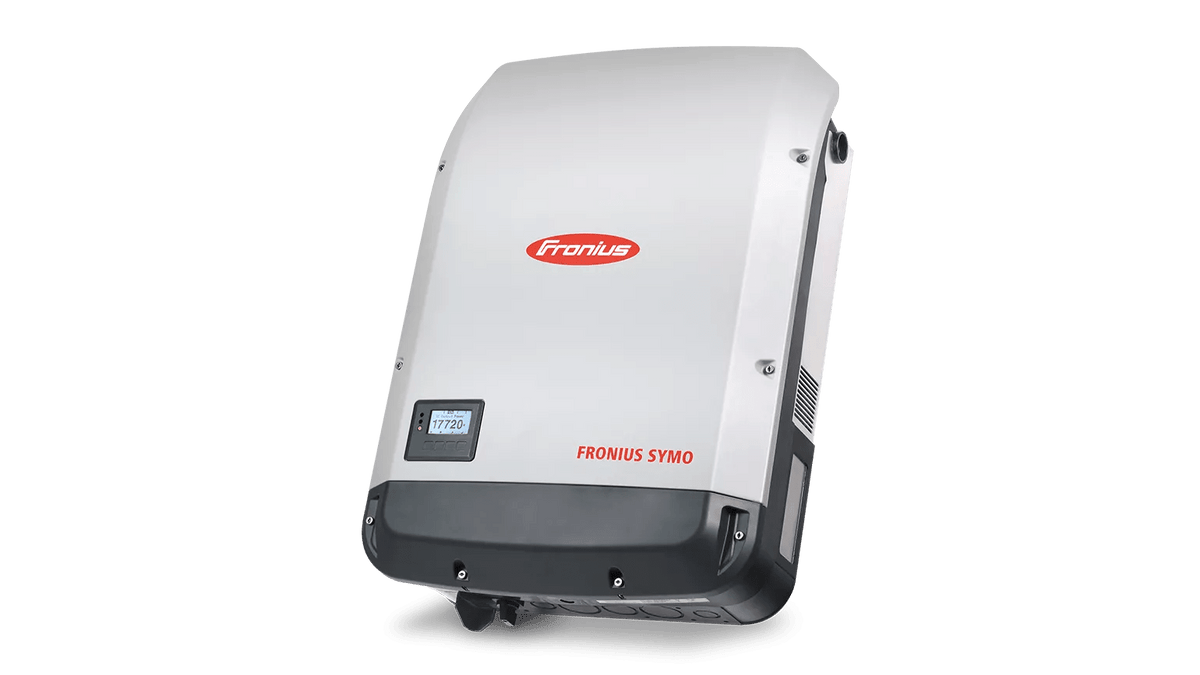

The Fronius Symo 15.0-3 208 is a compact transformerless three-phase inverter sized for small commercial systems on 208 V wye service. A single high-current MPP tracker (50 A usable) with a 325–850 V MPP window accepts large parallel string counts, and integrated 6+/6− string fuse holders reduce the need for an external combiner. The SnapINverter mount allows lightweight, one-person installation, and the NEMA 4X, 1,000 V-rated design can go on a wall, a pole or flat on a roof. Wi-Fi/Ethernet monitoring and SunSpec Modbus are available with a Fronius Datamanager 2.0 card.
Highlights
- 15,000 VA output at 208 V three-phase
- Integrated string fuse holders (6+ / 6−)
- Integrated AFCI, DC disconnect, ground-fault protection
- SnapINverter mounting; NEMA 4X indoor/outdoor
Specifications
| Part number | 4210052841 |
| Max. output power | 15,000 VA @ 208 V |
| Max. continuous output current | 41.6 A |
| Recommended OCPD | 60 A |
| Recommended PV power | 12.0–19.5 kWp |
| MPP trackers | 1 (50 A usable) |
| MPP voltage range | 325–850 V |
| Max. input voltage | 1,000 V |
| Max. / CEC efficiency | 97.3% / 96.5% |
| Dimensions (W × H × D) | 20.1 × 28.5 × 8.9 in |
| Weight | 78.3 lb |
| Warranty | 10 years (Fronius USA limited warranty; extensions available) |
| Manufacturer | Fronius |
|---|---|
| Model Number | Fronius Symo 15.0-3 208 |
| Type | Three-phase transformerless grid-tie string inverter, 1 MPPT |
| Max Output Power | 15,000 VA @ 208 V |
| Output Configuration | 3~ NPE 208/220 V |
| Max Continuous Output Current | 41.6 A @ 208 V |
| OCPD/AC Breaker Size | 60 A @ 208 V |
| Recommended PV Power | 12.0-19.5 kWp |
| Max Usable Input Current | 50 A |
| DC Input Voltage Range | 325-1000 V (max 1000 V) |
| MPP Voltage Range | 325-850 V |
| Max Efficiency | 97.3% |
| CEC Efficiency | 96.5% @ 208 V |
| Enclosure | NEMA 4X |
| Operating Temperature | -40 to +60 C |
| Certifications | UL 1741, UL 1998, UL 1699B, IEEE 1547, IEEE 1547.1, CSA C22.2 No. 107.1-01, FCC Part 15 A & B |
| Dimensions (W x H x D) | 511 x 724 x 226 mm |
| Weight | 35.52 kg (78.3 lb) |
| Warranty | 10 years standard (extensions available) |
Specifications are from the manufacturer and may change. Questions? Call (888) 831-0450.
Fronius 10-Year Limited Warranty (extendable)
| Coverage | replacement parts/device; Warranty Plus also pays approved labor and national shipping |
|---|---|
| Start | from Fronius shipment, or from installation date if registered on solarweb.com within 30 months |
| Residential vs commercial | terms do not distinguish |
| How to claim | contact your installer, who files the claim with Fronius (invoice, serial no., commissioning report) |
Download: Fronius USA Limited Warranty Terms and Conditions
Manufacturer warranties are provided by the manufacturer. Keep your invoice as proof of purchase. Questions about a warranty claim? Call (888) 831-0450.
