- SnapINverter mounting for easy install and service
- Active Cooling Technology
- Dynamic Peak Manager shade-tolerant MPP tracking
- SunSpec Rapid Shutdown via Power Line Communication
- SuperFlex Design for flexible system design
- Integrated data logging, WLAN, Ethernet and web server
- Zero feed-in: feed-in management from 0-100%
- Fronius 10-year limited warranty (extendable)
Ships by parcel (UPS / FedEx).
We accept
Product Documents

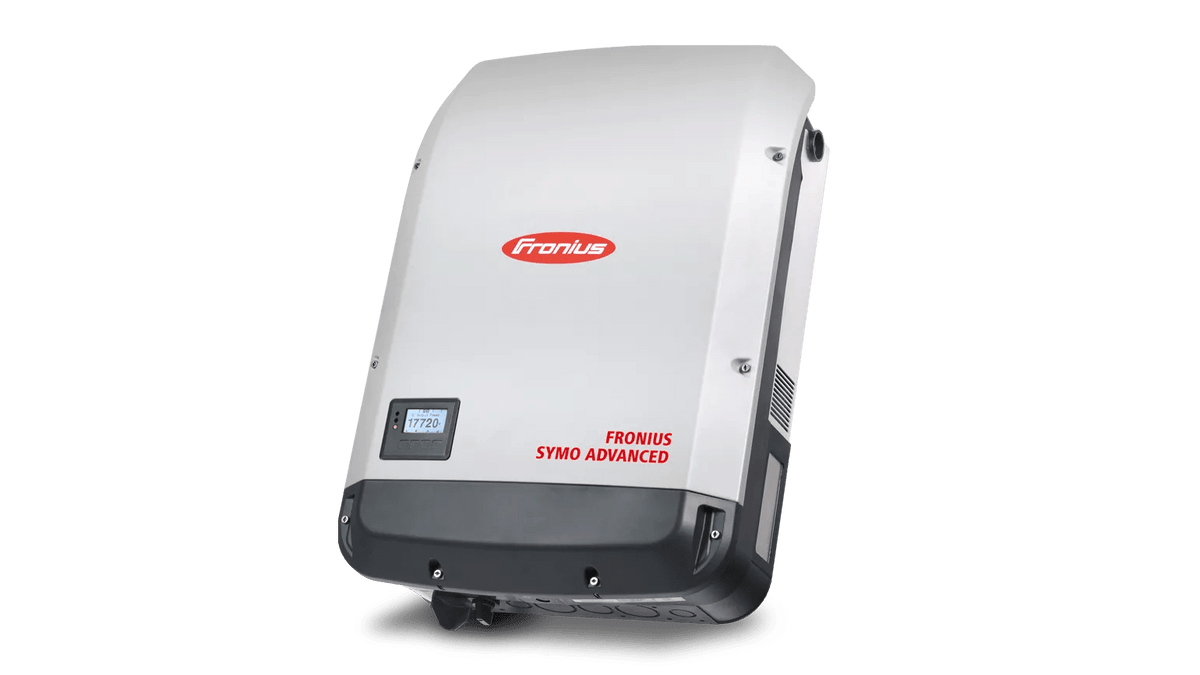

The Fronius Symo Advanced 10.0-3 208-240 is a transformerless three-phase string inverter for commercial rooftops and carports on 208/240 V three-phase service. Two MPP trackers, the Dynamic Peak Manager for shade-tolerant tracking, and the SnapINverter hinged mount keep design and installation simple, while the NEMA 4X enclosure allows indoor, outdoor or near-flat mounting (a Fronius Shade Cover is required below 15° tilt). This is the Lite configuration (part number ending 801), which ships without the Datamanager card; add a Fronius Datamanager 2.0 for Wi-Fi/Ethernet monitoring on Solar.web. Built-in power line communication supports SunSpec Rapid Shutdown.
Highlights
- Dual MPPT with Dynamic Peak Manager shade management
- SunSpec Rapid Shutdown via integrated power line communication
- Integrated AFCI, DC disconnect and ground-fault protection
- SnapINverter mounting and variable-speed fan cooling
Specifications
| Part number | 4210090801 |
| Max. output power | 9,995 W |
| Grid connection | 208/240 V three-phase |
| Max. continuous output current | 27.7 A @ 208 V / 24.0 A @ 240 V |
| MPP trackers | 2 |
| MPP voltage range | 300–500 V |
| Max. input voltage | 600 V |
| Recommended PV power | 8.0–13.0 kWp |
| Max. efficiency | 97.0% |
| Dimensions (W × H × D) | 20.1 × 28.5 × 8.9 in |
| Weight | 91.9 lb |
| Enclosure | NEMA 4X, −40 to +140 °F |
| Manufacturer | Fronius |
|---|---|
| Model Number | Fronius Symo Advanced 10.0-3 208-240 (Lite, without Datamanager) |
| Part Number | 4,210,090,801 |
| Type | Three-phase transformerless grid-tie string inverter, 2 MPPT |
| Max Output Power | 9,995 W |
| Max Continuous Output Current | 24.0 A @ 240 V / 27.7 A @ 208 V |
| OCPD/AC Breaker Size | 35 A @ 208 V / 30 A @ 240 V |
| Max PV Array Power | 15 kWp |
| Max Usable Input Current | 41.5 A total |
| DC Operating Voltage Range | 200-600 V (max 600 V) |
| MPP Voltage Range | 300-500 V |
| Max Efficiency | 97.0% |
| CEC Efficiency | 96.5% (208 and 240 V) |
| Enclosure | NEMA 4X; shade cover required when tilted below 15 degrees |
| Operating Temperature | -40 to +140 F (-40 to +60 C) |
| Protection | Integrated AFCI, DC disconnect, rapid shutdown compliant (SunSpec PLC) |
| Certifications | UL 1741 (incl. SA), UL 1998, UL 1699B, IEEE 1547/1547a/1547.1, CSA C22.2 No. 107.1-16, FCC Part 15 A & B, NEC 2017 Art. 690 |
| Dimensions (W x H x D) | 20.1 x 28.5 x 8.9 in |
| Weight | 91.9 lb (41.7 kg) |
| Warranty | 10 years standard (extensions available) |
Specifications are from the manufacturer and may change. Questions? Call (888) 831-0450.
Fronius 10-Year Limited Warranty (extendable)
| Coverage | replacement parts/device; Warranty Plus also pays approved labor and national shipping |
|---|---|
| Start | from Fronius shipment, or from installation date if registered on solarweb.com within 30 months |
| Residential vs commercial | terms do not distinguish |
| How to claim | contact your installer, who files the claim with Fronius (invoice, serial no., commissioning report) |
Download: Fronius USA Limited Warranty Terms and Conditions
Manufacturer warranties are provided by the manufacturer. Keep your invoice as proof of purchase. Questions about a warranty claim? Call (888) 831-0450.
