- Liquid-cooled turbocharged V-8 engine
- APM402 controller with Modbus
- NFPA 110 Level 2 capable
- Steel or aluminum sound enclosure
- Three-way catalyst standard
- Natural gas, LPG or factory dual fuel
- cUL/UL 2200 listed, CSA certified
- KOHLER 5-year/2000-hour limited warranty
Ships by LTL freight. Too large for parcel delivery. Questions on freight? Call (888) 831-0450.
We accept

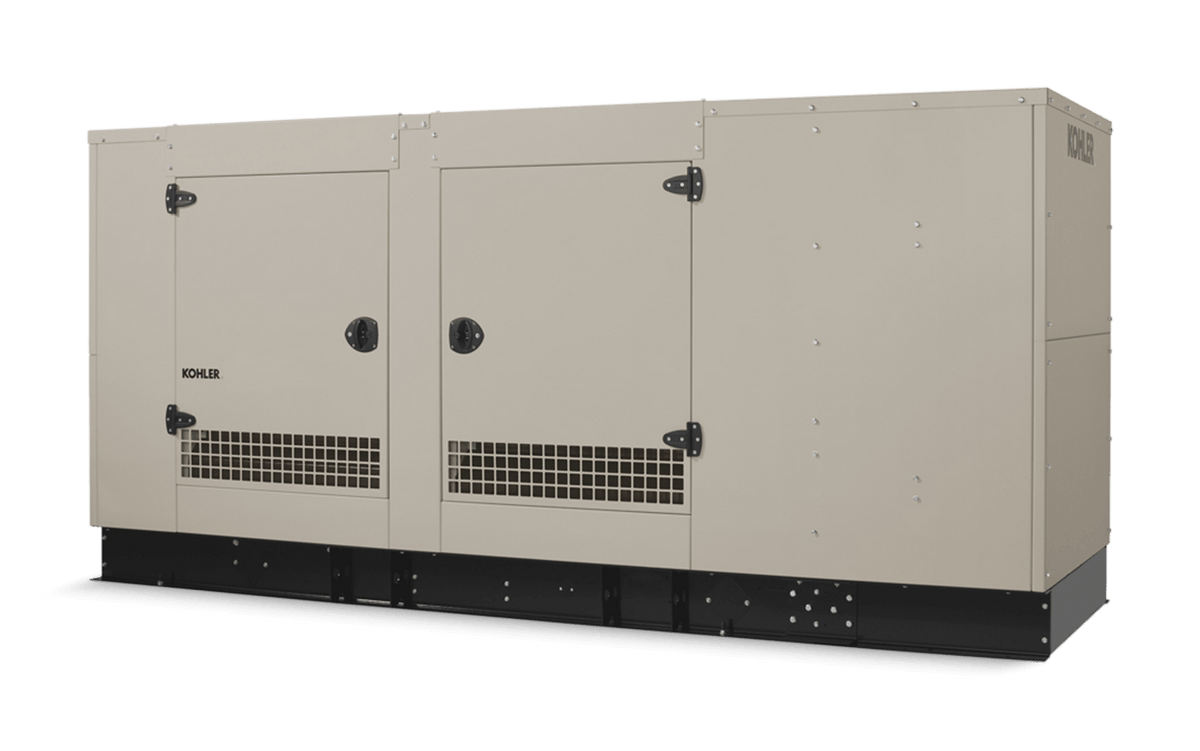

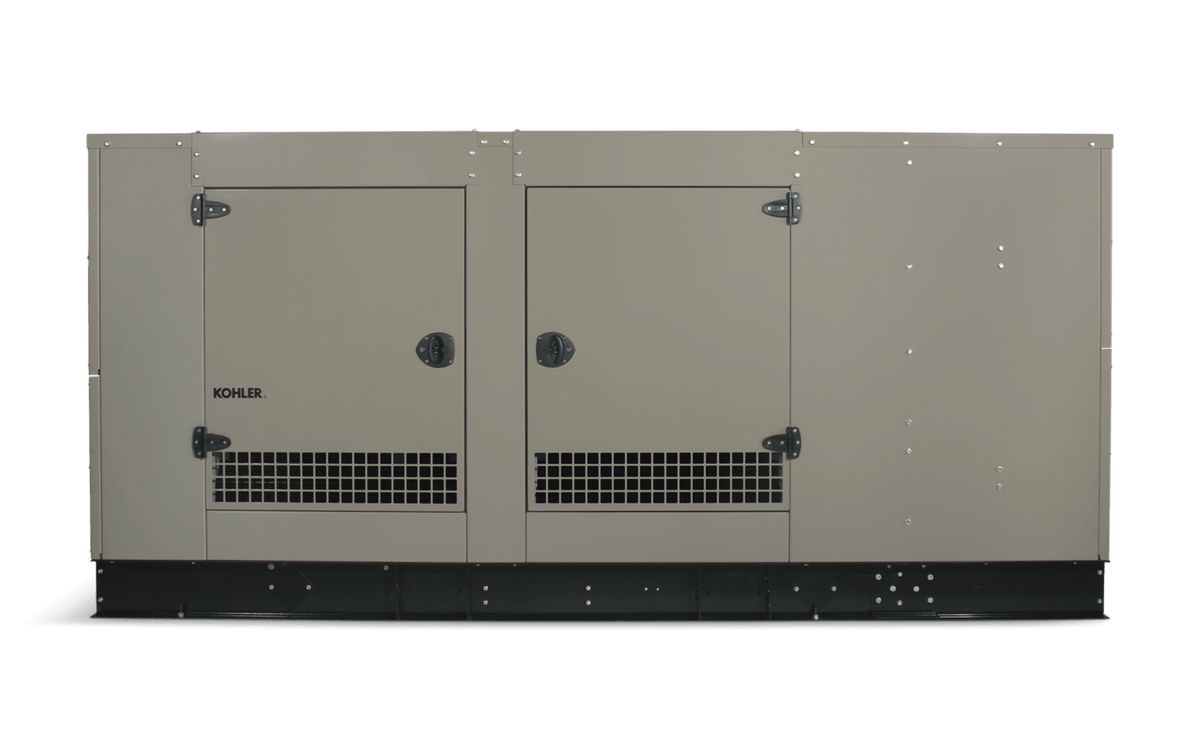

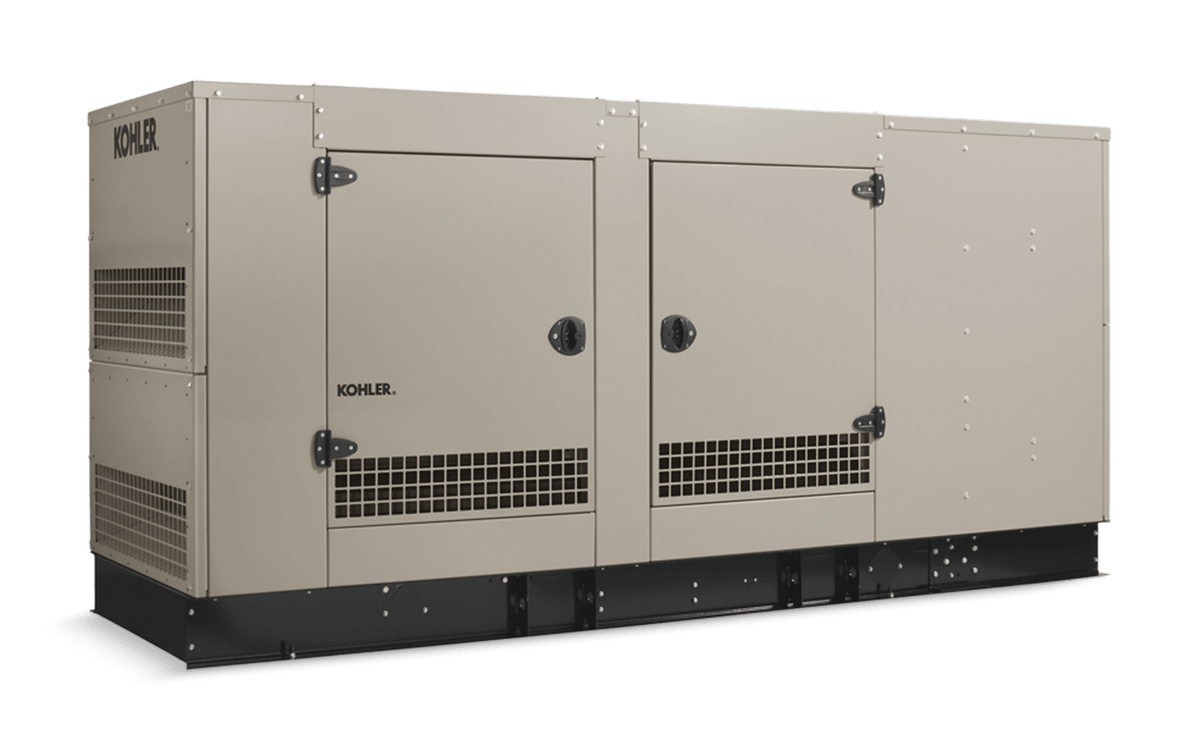

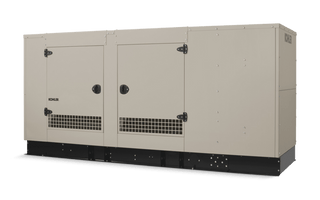

The KOHLER 150ERESC is an enclosed, liquid-cooled standby generator designed for residential and light commercial backup power. Its industrial engine supports extended operation during utility outages, while the controller manages generator operation and provides system information for service and monitoring.
Key features
- Liquid-cooled powertrain: 8.8 L (537 cu. in.) engine operating at 1800 rpm.
- Fuel flexibility: Designed for natural gas or LP vapor operation. Fuel conversion and setup must match the selected configuration.
- Generator control: APM402 control provides system monitoring and diagnostic functions.
- Enclosed construction: Sound-attenuating enclosure for outdoor standby installations.
- Power quality: Voltage and frequency regulation support connected electrical loads.
- Service equipment: Includes a unit-mounted radiator, coolant, flexible fuel lines, and battery charging equipment.
Specifications
| Manufacturer | KOHLER |
|---|---|
| Model | 150ERESC |
| Power class | 150 kW |
| Fuel | Natural gas / LP |
| Cooling | Liquid-Cooled |
| Rated output — natural gas | 144 kW |
| Rated output — LP | 134 kW |
| Frequency | 60 Hz |
| Controller | APM402 |
| Engine displacement | 8.8 L (537 cu. in.) |
| Engine speed | 1800 rpm |
| Electrical configuration | 150ERESC, Single-phase, 120/240, 4T13X Alternator, Aluminum Enclosure |
| Line circuit breaker | 600 A |
| Enclosure | Aluminum |
Manufacturer SKU: 150ERESC-QS9
Included equipment
Generator in the selected enclosure and configuration. Automatic transfer switch sold separately. The listed configuration includes a factory-installed block heater.
Installation and sizing
Match voltage, phase, fuel supply, and connected loads to the selected configuration. Output depends on fuel and operating conditions. Installation, fuel-system work, and transfer-switch connections require a qualified installer.
| Manufacturer | KOHLER |
|---|---|
| Model Number | 150ERESC-QS9 |
| Voltage | 120/240 V, single-phase, 60 Hz |
| Standby Rating | 144 kW NG / 134 kW LPG (4T13X alternator) |
| Rated Current | 600 A NG / 557 A LPG |
| Line Circuit Breaker | 600 A |
| Enclosure | Aluminum (wind rated) sound enclosure |
| Weight (wet) | 3813 lb (1730 kg) aluminum |
| Fuel | Natural gas or LPG (dual fuel on select QS models) |
| Engine | PSI 8.8 L turbocharged V-8, 1800 rpm |
| Cooling | Liquid-cooled, radiator, 113 F ambient |
| Controller | APM402, Modbus, NFPA 110 Level 2 capable |
| Sound Level | 70 dB(A) at 7 m |
| Fuel Consumption 100% Load | NG 1965 cfh, LPG 713 cfh |
| Fuel Inlet | 1.5 in NPTF |
| Certifications | cUL/UL 2200, CSA, EPA NSPS |
| Dimensions (L x W x H) | 139 x 45.4 x 66.8 in (3526 x 1153 x 1696 mm) |
| Emissions | Three-way catalyst standard |
| Warranty | 5-year/2000-hour basic; 5-year Premium optional |
