- Keeps fuel-line moisture from freezing
- Built-in thermostat: automatic on/off
- For temperatures below 32 F (0 C)
- 120 VAC heater, 37 W
- Runs on generator-backed AC power
Ships by parcel (UPS / FedEx).
We accept
Product Documents
The KOHLER GM57969-KP5-QS is a 40-watt, 120-volt carburetor heater for compatible air-cooled KOHLER generators. It keeps moisture in the incoming fuel from freezing and is recommended for cold-starting where temperatures fall below 32°F (0°C).
Key features
- Fits: 8/10/12RESV(L), 20RES(L), 20RESA(L), 20RESB, 20RESC(L), 20RCA(L) and 26RCA(L) generators.
- Rating: 40 W, 120 V (a 240 V version is also available).
- Thermostat: Built-in thermostat cycles the heater automatically.
- Size: Approx. 8 x 5 x 3.5 in package, about 1 lb.
Specifications
| Manufacturer | KOHLER |
|---|---|
| Part number | GM57969-KP5-QS |
| Wattage | 40 W |
| Voltage | 120 V |
What's included
Carburetor heater.
Installation, wiring and fuel-system work should be performed by a qualified installer in accordance with local codes and the KOHLER installation instructions.
| Manufacturer | KOHLER |
|---|---|
| Part Number | GM57969-KP5-QS |
| Type | Carburetor heater kit |
| Voltage | 120 VAC |
| Heater Wattage | 37 W (per G6-129; listing title says 40 W) |
| Fits Generator Models | 8/10/12RESV(L), 20RESA(L), 20RESB, 20RESC(L), 20RESD, 20RCA(L), 26RCA(L) |
| Thermostat | On approx. 40 F (4 C), off 60 F (16 C) |
| Recommended | Where temperatures fall below 32 F (0 C) |
| Power | Continuous AC source backed up by the generator |

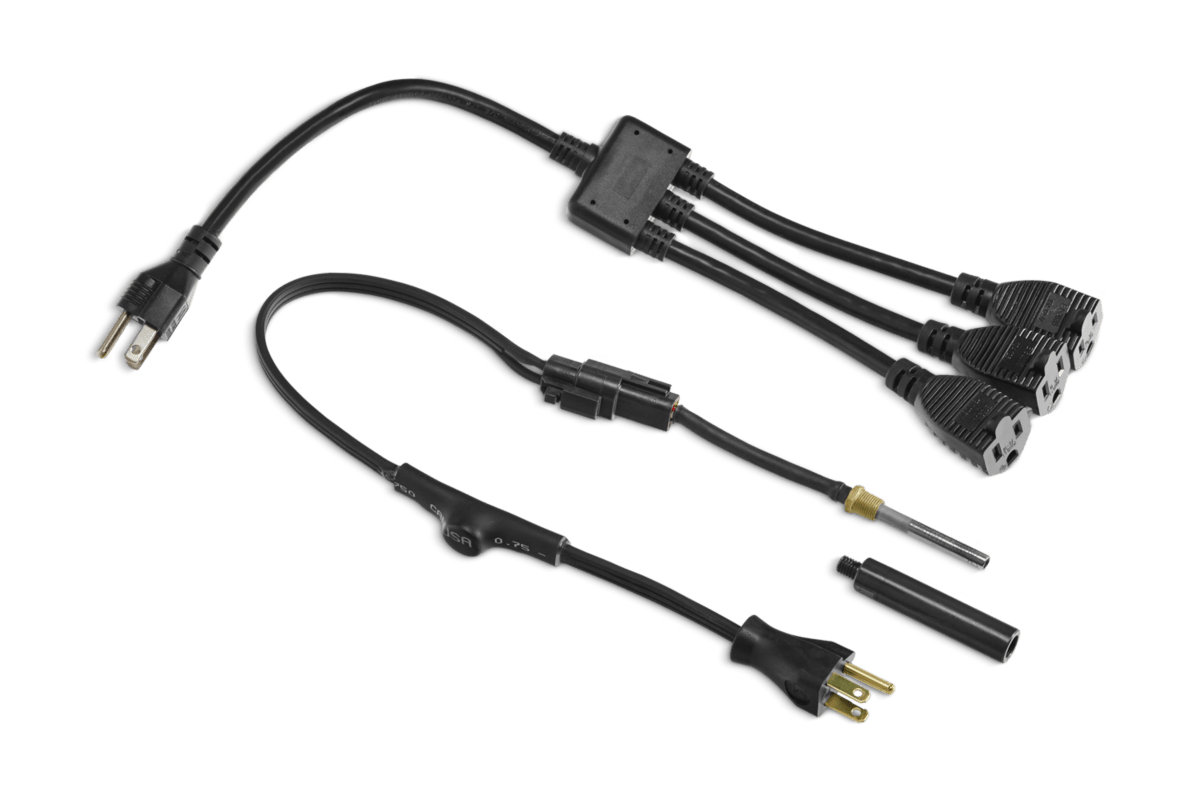

| Kit Contents | Adapter (1), 3-way extension cord (1), decal (1), carburetor heater (1), instructions |
| Package | 8 x 5 x 3.5 in, 1.05 lb (KOHLER product page) |
| Dimensions | 8 x 5 x 3.5 in; cord 382 mm (per Dixon Electric) |
Specifications are from the manufacturer and may change. Questions? Call (888) 831-0450.
KOHLER Limited Warranty (5-Year / 2000-Hour, factory-supplied accessories)
| Coverage | TP-7156 covers the generator set and factory-supplied accessories for 5 years or 2000 hours (US standby use) |
|---|---|
| Separately purchased parts | ask us or a KOHLER dealer to confirm coverage |
| Engine coolant heaters and heater controls | covered first year only |
| How to claim | call 1-800-544-2444 or email generator.feedback@kohler.com |
Manufacturer warranties are provided by the manufacturer. Keep your invoice as proof of purchase. Questions about a warranty claim? Call (888) 831-0450.
