- Heating pad mounts directly on fuel regulator
- Snap-action thermostat: on 40 F, off 55 F
- Helps engine start in sub-zero weather
- Mounting hardware included
Ships by parcel (UPS / FedEx).
We accept
Product Documents
The KOHLER GM79141-KP2-QS is the 240-volt, 100-watt fuel regulator heater for compatible 20 kW KOHLER generators. The heating pad mounts on the fuel regulator to keep it warm and help the generator start in severe cold.
Key features
- Fits: KOHLER 20 kW air-cooled home generators. Confirm fitment with your generator model and serial number before ordering.
- Rating: 100 W, 240 V.
- Thermostat: Thermostatically controlled heating pad.
- Use: For installations that see sub-zero winter temperatures.
Specifications
| Manufacturer | KOHLER |
|---|---|
| Part number | GM79141-KP2-QS |
| Wattage | 100 W |
| Voltage | 240 V |
What's included
Regulator heater pad.
Installation, wiring and fuel-system work should be performed by a qualified installer in accordance with local codes and the KOHLER installation instructions.
| Manufacturer | KOHLER |
|---|---|
| Part Number | GM79141-KP2-QS |
| Type | Fuel regulator heater kit (heating pad) |
| Voltage | 240 VAC |
| Wattage | 100 W |
| Power Connection | 3-pin connectors (20 kW models only); adapter harness included |
| Thermostat | Snap action, on 40 F (4 C), off 55 F (13 C) |
| Heating Pad Diameter | 5 in (127 mm) |
| Fits Generator Models | 20RESA(L), 20RESB, 20RESC(L), 20RESD, 20RCA(L) |

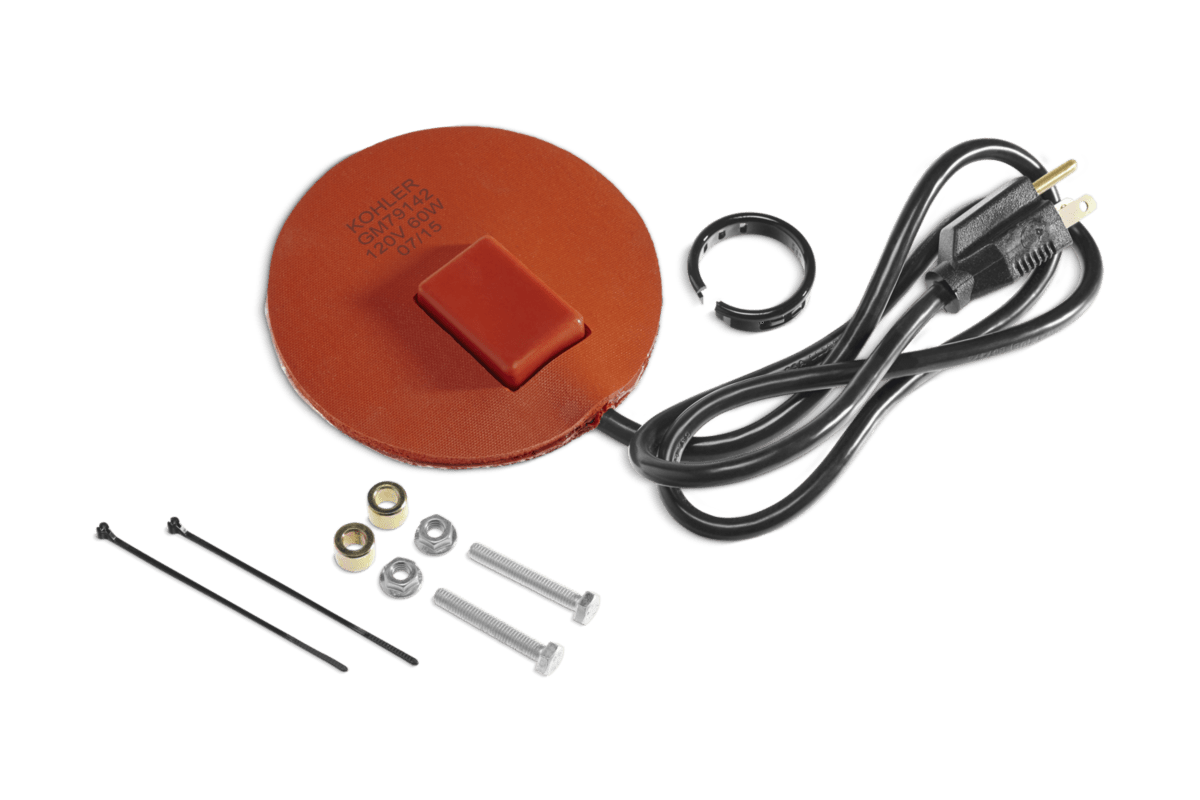

| Kit Contents | Bushing (1), regulator pad heater (1), hex nuts (2), hex cap screws (2), steel spacers (2), cable ties (2), instructions, adapter harness (1) |
Specifications are from the manufacturer and may change. Questions? Call (888) 831-0450.
KOHLER Limited Warranty (5-Year / 2000-Hour, factory-supplied accessories)
| Coverage | TP-7156 covers the generator set and factory-supplied accessories for 5 years or 2000 hours (US standby use) |
|---|---|
| Separately purchased parts | ask us or a KOHLER dealer to confirm coverage |
| Engine coolant heaters and heater controls | covered first year only |
| How to claim | call 1-800-544-2444 or email generator.feedback@kohler.com |
Manufacturer warranties are provided by the manufacturer. Keep your invoice as proof of purchase. Questions about a warranty claim? Call (888) 831-0450.
