- 2 inputs and 6 relay outputs
- Outputs rated 10 A at 120 VAC
- Remote control with OnCue Plus (sold separately)
- NEMA 3R aluminum enclosure
- UL listed
- Works with RDC2, DC2 and VSC controllers
Ships by parcel (UPS / FedEx).
We accept
Product Documents

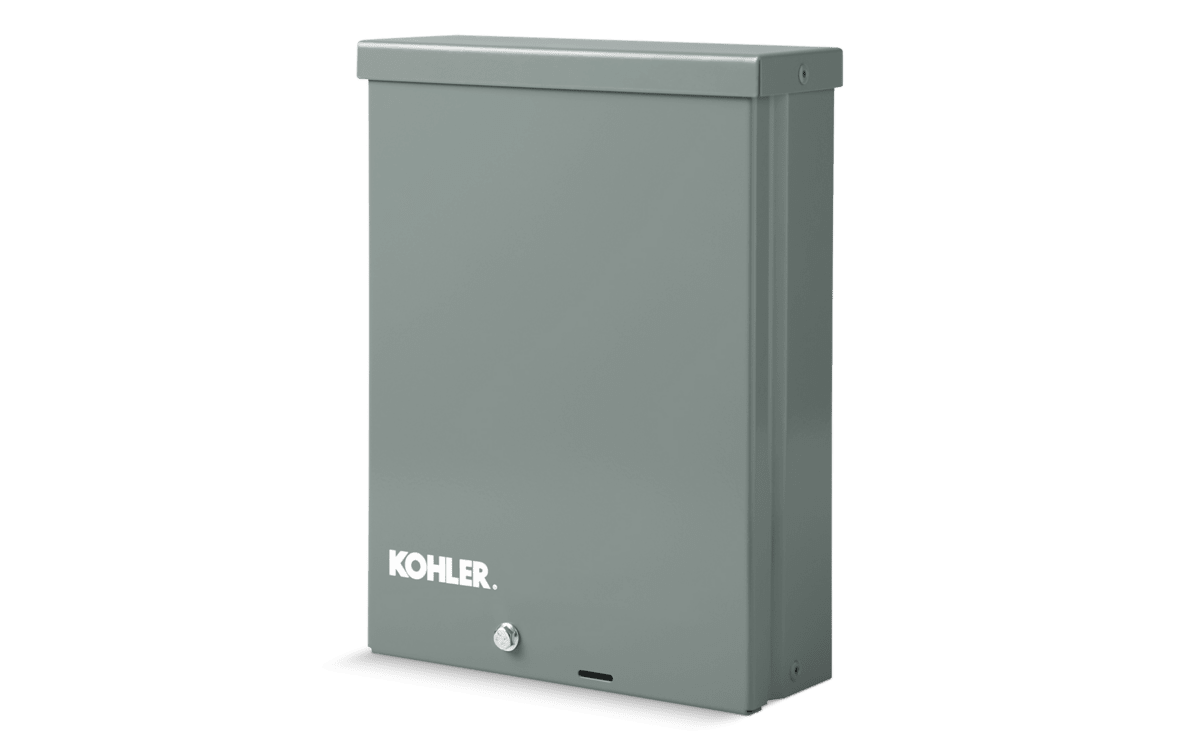

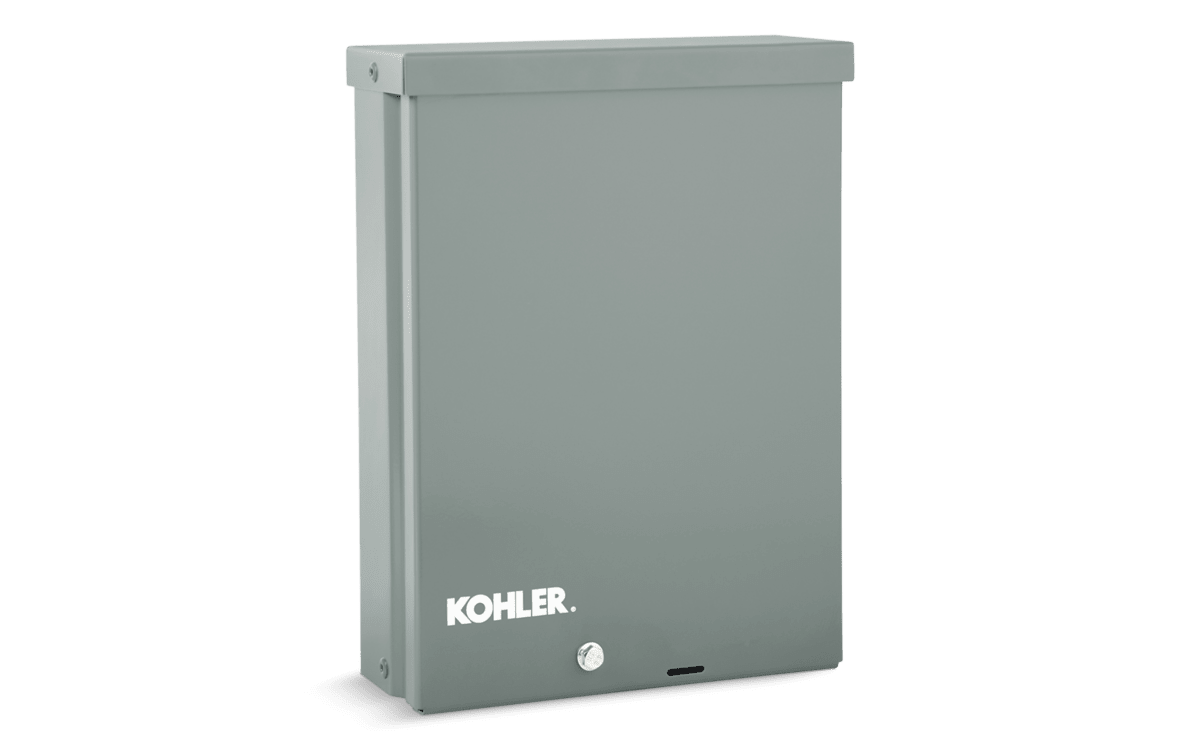

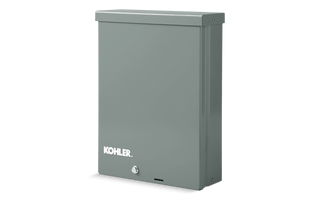

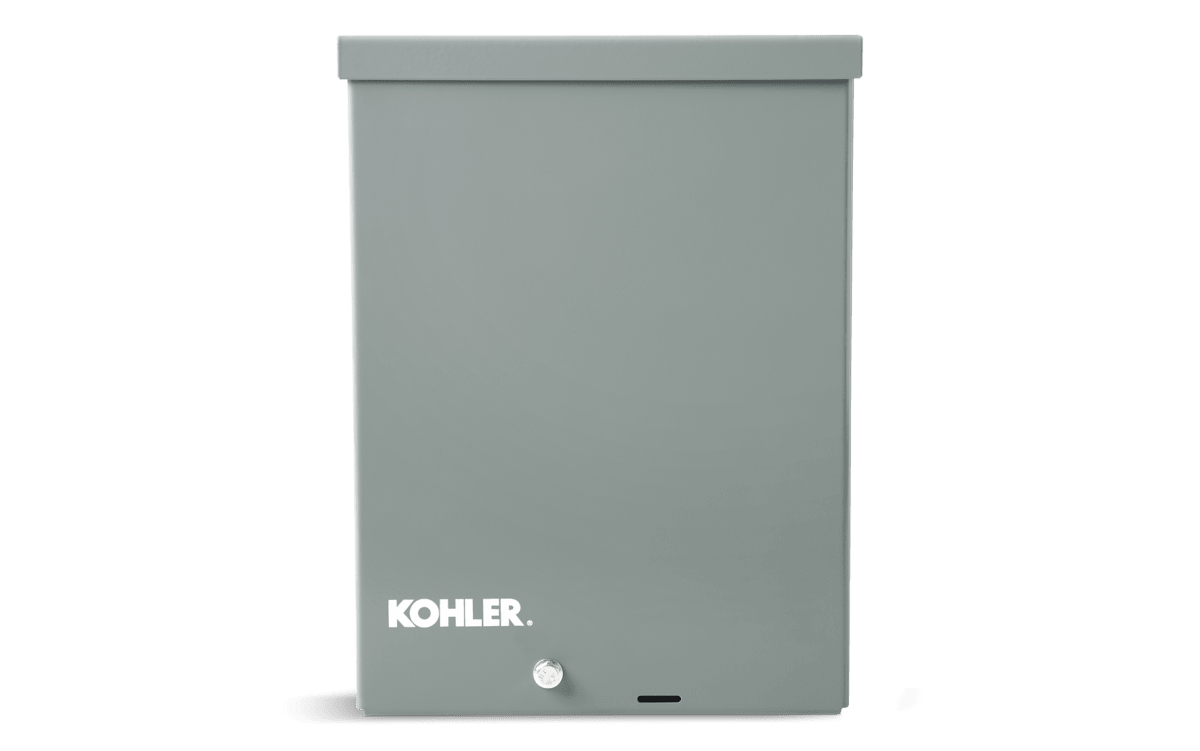

The KOHLER GM81529-KP1-QS Programmable Interface Module (PIM) expands a compatible KOHLER generator's controller with programmable inputs and outputs for smart-home, alarm and load-control integration.
Key features
- I/O: Two programmable inputs and six programmable outputs.
- Fits: 6VSG, 14RESA, 14RESAL, 20RESA, 20RESAL, 38RCL and 48RCL generators.
- Remote control: Works with OnCue Plus for remote load management.
- Size: 12.1 x 9.2 x 3.3 in (308 x 234 x 84 mm), 6 lb; UL version.
Specifications
| Manufacturer | KOHLER |
|---|---|
| Part number | GM81529-KP1-QS |
| Inputs / outputs | 2 / 6 |
| Listing | UL |
What's included
Programmable interface module.
Installation, wiring and fuel-system work should be performed by a qualified installer in accordance with local codes and the KOHLER installation instructions.
| Manufacturer | KOHLER |
|---|---|
| Part Number | GM81529-KP1-QS |
| Type | Programmable Interface Module (PIM) |
| Inputs | 2 dry contact, 10 mA at 12 VDC |
| Outputs | 6 relay, 10 A at 120 VAC, N.O. or N.C. |
| Power | 0.5 A at 12 VDC from controller |
| Communication | To RDC2/DC2 controller, Belden 9402 or equivalent |
| Compatible Controllers | RDC2, DC2, VSC |
| Remote Control | With OnCue Plus (sold separately) |
| Enclosure | NEMA 3R aluminum, indoor/outdoor |
| Certification | UL listed |
| Dimensions (H x W x D) | 12.1 x 9.1 x 3.3 in (308 x 234 x 84 mm) |
| Shipping Weight | 6 lb (2.7 kg) |
Specifications are from the manufacturer and may change. Questions? Call (888) 831-0450.
KOHLER Limited Warranty (5-Year / 2000-Hour, factory-supplied accessories)
| Coverage | TP-7156 covers the generator set and factory-supplied accessories for 5 years or 2000 hours (US standby use) |
|---|---|
| Separately purchased parts | ask us or a KOHLER dealer to confirm coverage |
| How to claim | call 1-800-544-2444 or email generator.feedback@kohler.com |
Manufacturer warranties are provided by the manufacturer. Keep your invoice as proof of purchase. Questions about a warranty claim? Call (888) 831-0450.
