- Manages one load per module, up to 4 modules
- 50 A, 240 VAC DPST relay
- NEMA 3R enclosure for indoor/outdoor use
- UL/cUL listed
- Works with RDT/RXT load shed or load control
Ships by parcel (UPS / FedEx).
We accept
Product Documents

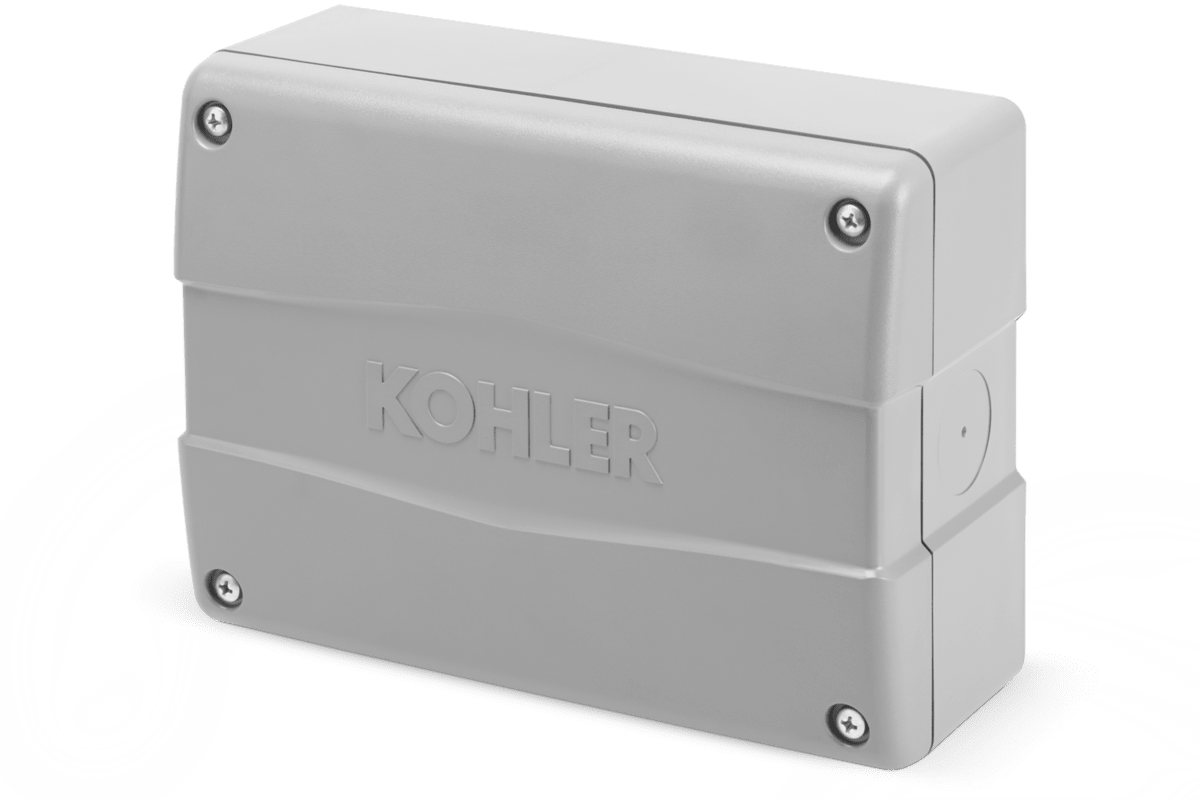

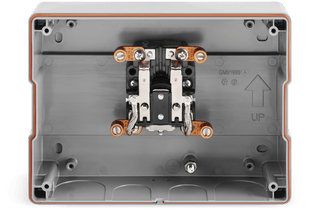

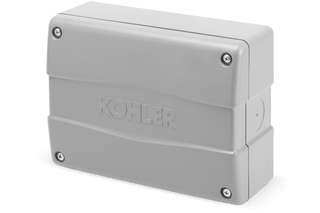

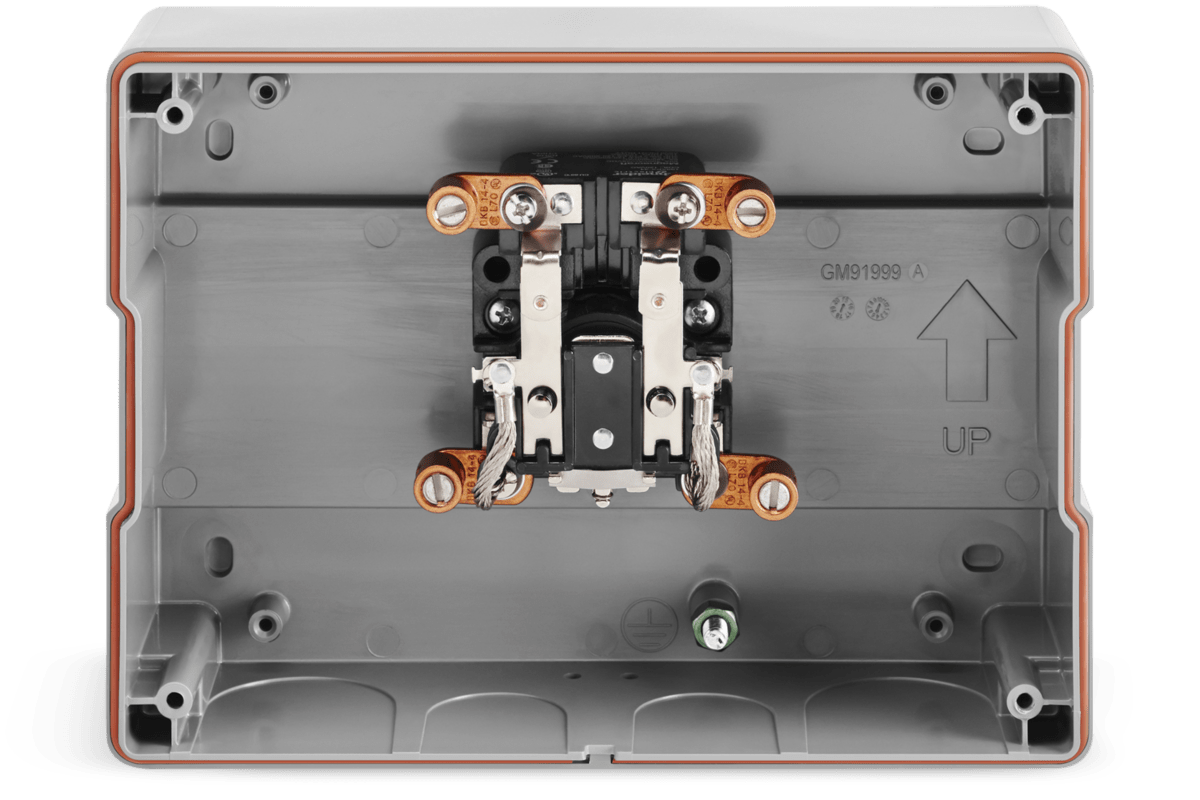

The KOHLER GM92001-KP1-QS Power Relay Module adds load-management capacity to compatible KOHLER generators. Each module contains a relay that can control additional loads so the generator can prioritize essential circuits during an outage.
Key features
- Fits: 14RESA, 14RESAL, 20RESA, 20RESAL, 20RESB, 24RCL, 38RCL, 38RCLA, 48RCL and 60RCL.
- Function: Separate relay per module to manage up to four extra loads.
- Size: 6.8 x 9.2 x 3.6 in (172 x 233 x 92 mm), 3 lb.
Specifications
| Manufacturer | KOHLER |
|---|---|
| Part number | GM92001-KP1-QS |
| Weight | 3 lb (1.4 kg) |
What's included
Power relay module.
Installation, wiring and fuel-system work should be performed by a qualified installer in accordance with local codes and the KOHLER installation instructions.
| Manufacturer | KOHLER |
|---|---|
| Part Number | GM92001-KP1-QS |
| Type | Power Relay Module (PRM) for load management |
| Relay Rating | 50 A at 240 VAC |
| Relay Type | DPST, normally closed |
| Coil Voltage | 120 VAC |
| Lugs | 4, #4-14 AWG copper |
| Loads | 1 relay per module, up to 4 modules per system |
| Enclosure | NEMA 3R, indoor/outdoor |
| Certification | UL/cUL listed |
| Requires | KOHLER RDT/RXT ATS with load shed kit or RXT with combined interface/load management board; generator with RDC2 or DC2 controller |
| Operating Temperature | -4 to 131 F (-20 to 55 C) |
| Dimensions (H x W x D) | 6.8 x 9.2 x 3.6 in (172 x 233 x 92 mm) |
| Weight | 3 lb (1.4 kg) |
Specifications are from the manufacturer and may change. Questions? Call (888) 831-0450.
KOHLER Limited Warranty (5-Year / 2000-Hour, factory-supplied accessories)
| Coverage | TP-7156 covers the generator set and factory-supplied accessories for 5 years or 2000 hours (US standby use) |
|---|---|
| Separately purchased parts | ask us or a KOHLER dealer to confirm coverage |
| How to claim | call 1-800-544-2444 or email generator.feedback@kohler.com |
Manufacturer warranties are provided by the manufacturer. Keep your invoice as proof of purchase. Questions about a warranty claim? Call (888) 831-0450.
