- Service entrance rated automatic transfer switch
- NEMA 3R outdoor enclosure
- Decision-Maker MPAC 1500 controller
- Utility-side electronic-trip service breaker
- Standard (open) transition
- UL 1008 listed
- KOHLER 1-year limited warranty (extended plans available)
Ships by LTL freight. Too large for parcel delivery. Questions on freight? Call (888) 831-0450.
We accept

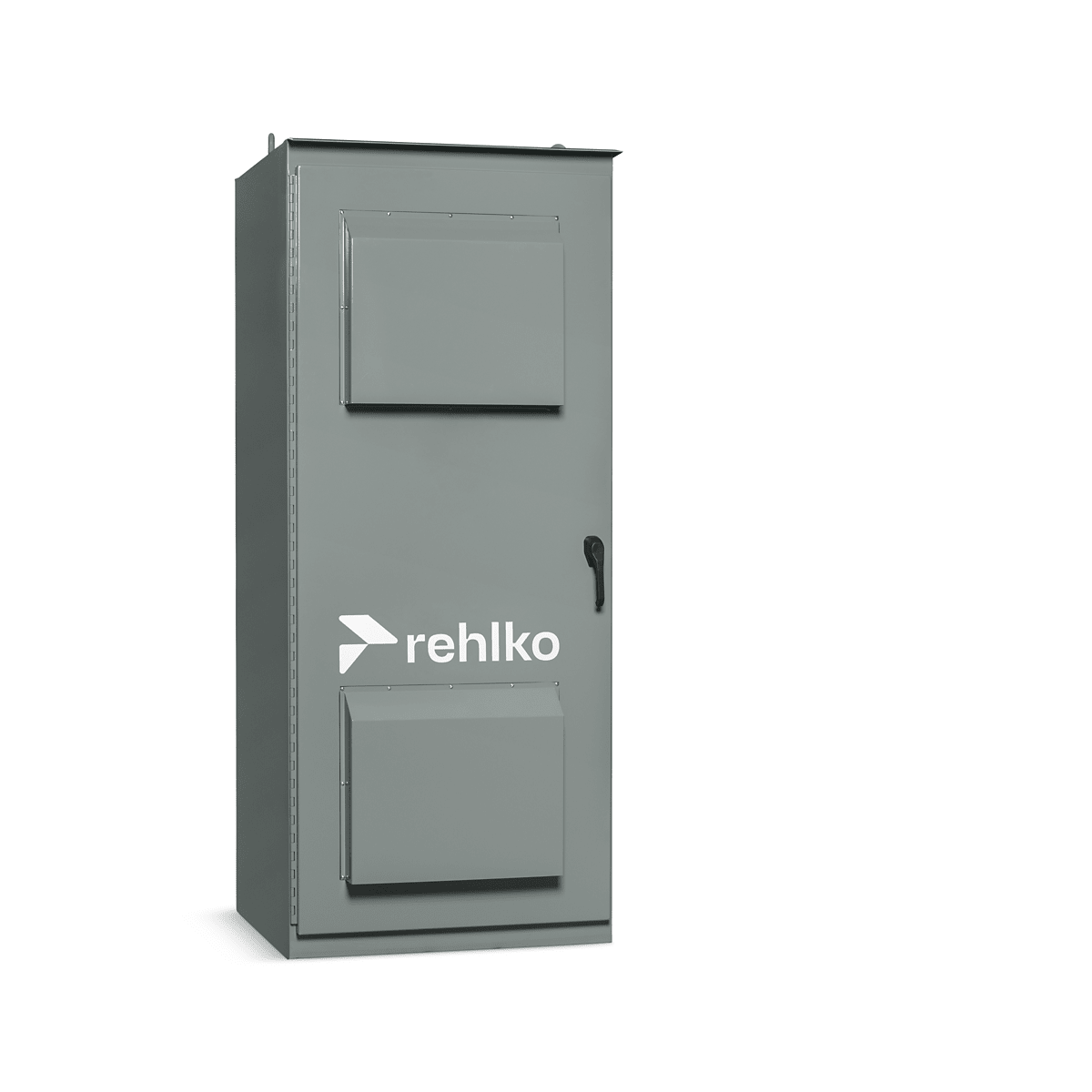

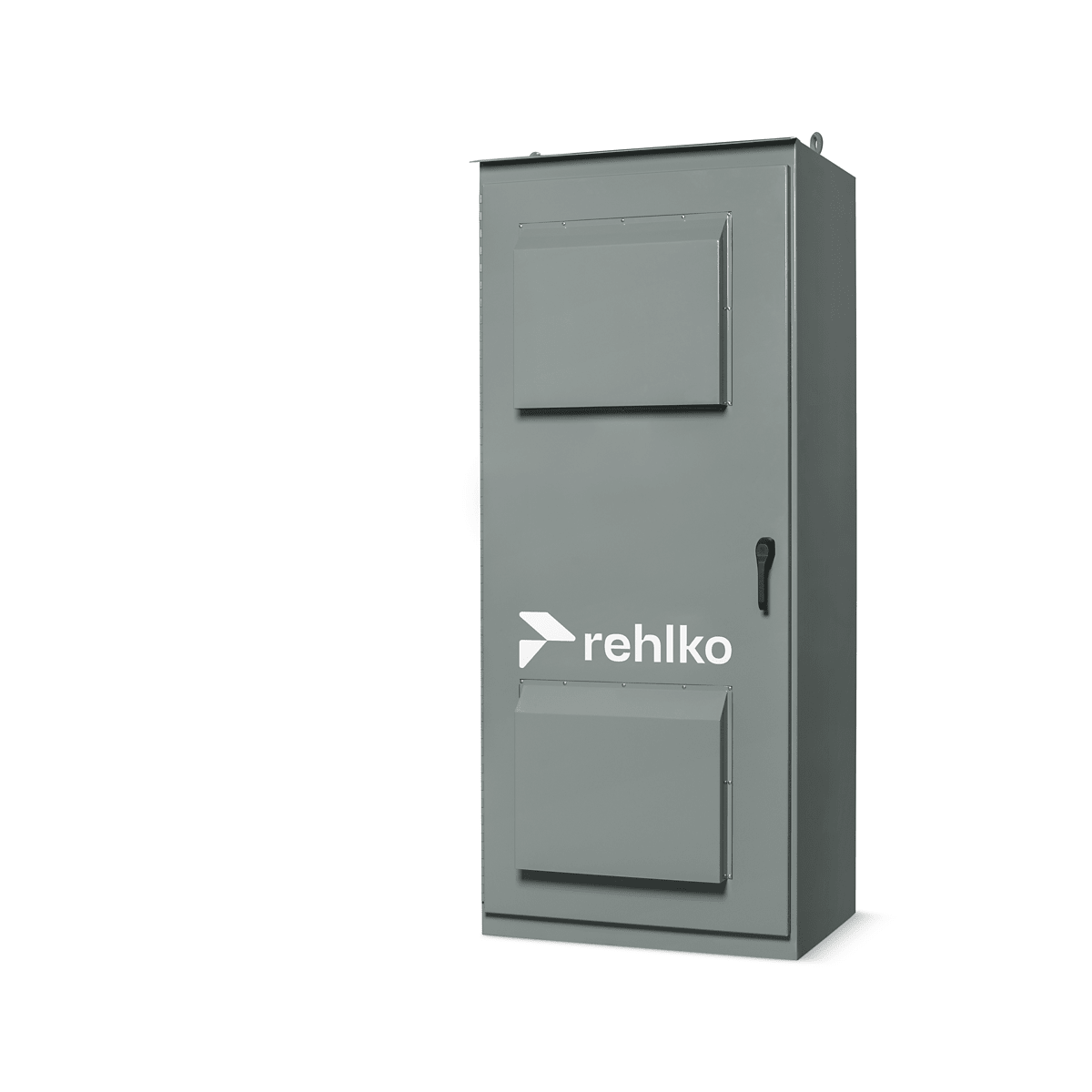

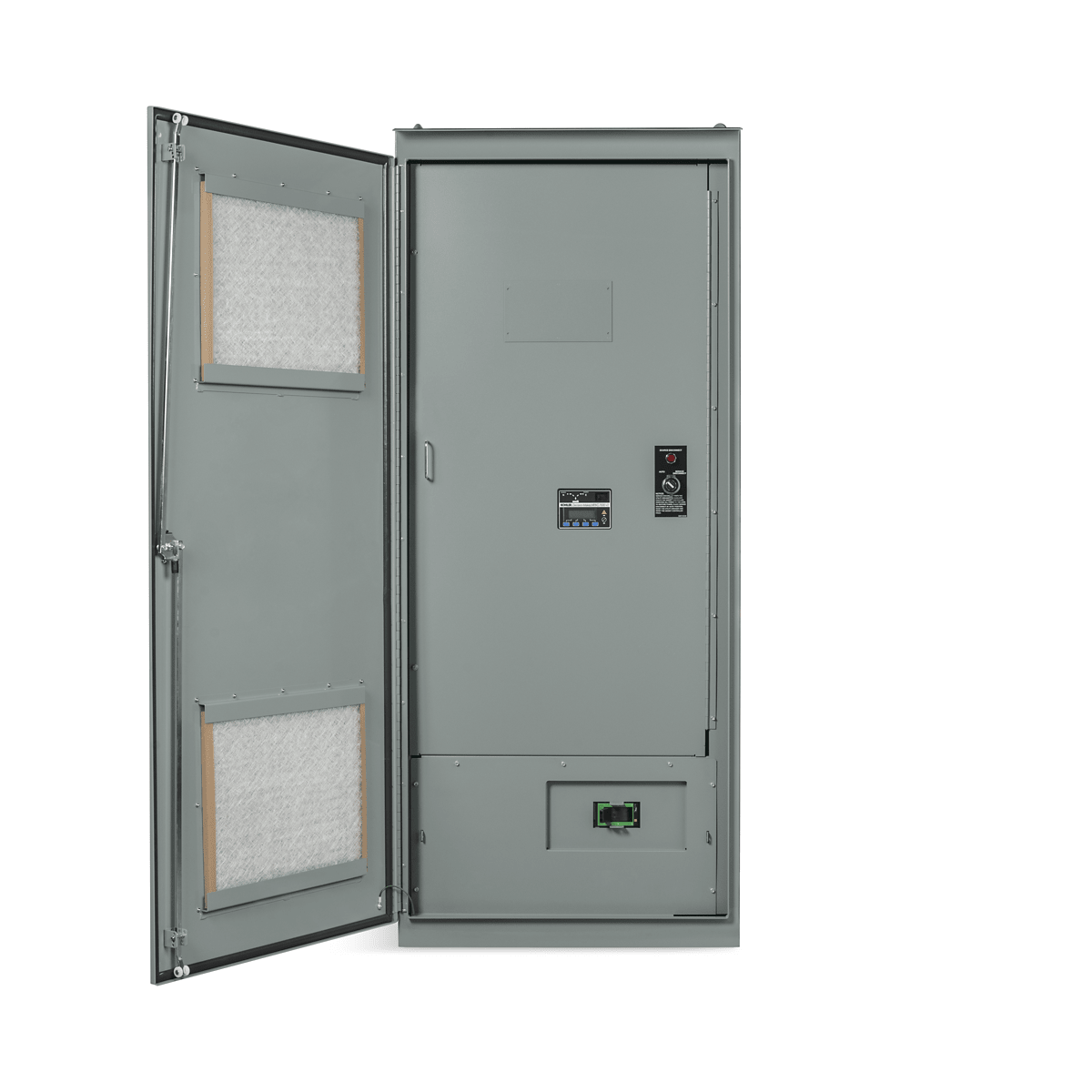

The KOHLER KUS-DCTC-400WS-QS1 is a KUS-series service-entrance rated, open-transition automatic transfer switch rated 400 A at 208 V three-phase. It is intended for larger homes, commercial and light-industrial standby systems where the transfer switch also serves as the service disconnect.
Key features
- Rating: 400 A, 208 V, three-phase, 3-pole.
- Service entrance: Service-entrance rated design for installation at the utility service point.
- Controller: MPAC 1500 microprocessor transfer switch controller for source monitoring, timing and exercise functions.
- Enclosure: NEMA 3R steel enclosure for outdoor installation.
- Transition: Standard (open) transition transfer.
Specifications
| Manufacturer | KOHLER |
|---|---|
| Model | KUS-DCTC-400WS-QS1 |
| Series | KUS |
| Current rating | 400 A |
| Voltage / phase | 208 V, three-phase |
| Poles | 3-pole |
| Enclosure | NEMA 3R, steel |
| Service entrance rated | Yes |
| Controller | MPAC 1500 |
What's included
Transfer switch with MPAC 1500 controller in NEMA 3R enclosure.
Installation, wiring and fuel-system work should be performed by a qualified installer in accordance with local codes and the KOHLER installation instructions.
| Manufacturer | KOHLER |
|---|---|
| Model Number | KUS-DCTC-400WS-QS1 |
| Series | Model KUS service entrance rated ATS (standard transition) |
| Rated Amps | 400A |
| Voltage | 208 VAC 3-phase |
| Poles | 3-pole, 4-wire, solid neutral |
| Enclosure | NEMA 3R |
| Controller | Decision-Maker MPAC 1500 |
| Service Disconnect | utility-side electronic-trip breaker, 80% rated (W) |
| Fault Level | standard (S) |
| Dimensions | 76 x 40 x 22 in (1930 x 1005 x 563 mm) |
| Weight | 530 lb net |
| Listing | UL 1008 (cULus), file E58962 |
| Warranty | 1-year limited standard |
Specifications are from the manufacturer and may change. Questions? Call (888) 831-0450.
KOHLER 1-Year Limited Warranty (extended plans available)
| Standard | one-year limited warranty per KOHLER spec sheet |
|---|---|
| Extended options | 2-year basic, 5-year basic, 5-year comprehensive, 10-year major components |
Manufacturer warranties are provided by the manufacturer. Keep your invoice as proof of purchase. Questions about a warranty claim? Call (888) 831-0450.
