- 1U rack-mount hub for multi-cluster expansion
- Connects up to 9 battery clusters
- CAN, RS485 and RS232 communication
- Powered from 48 Vdc battery bus
- Run and alarm indicator lights
Ships by parcel (UPS / FedEx).
We accept
Product Documents

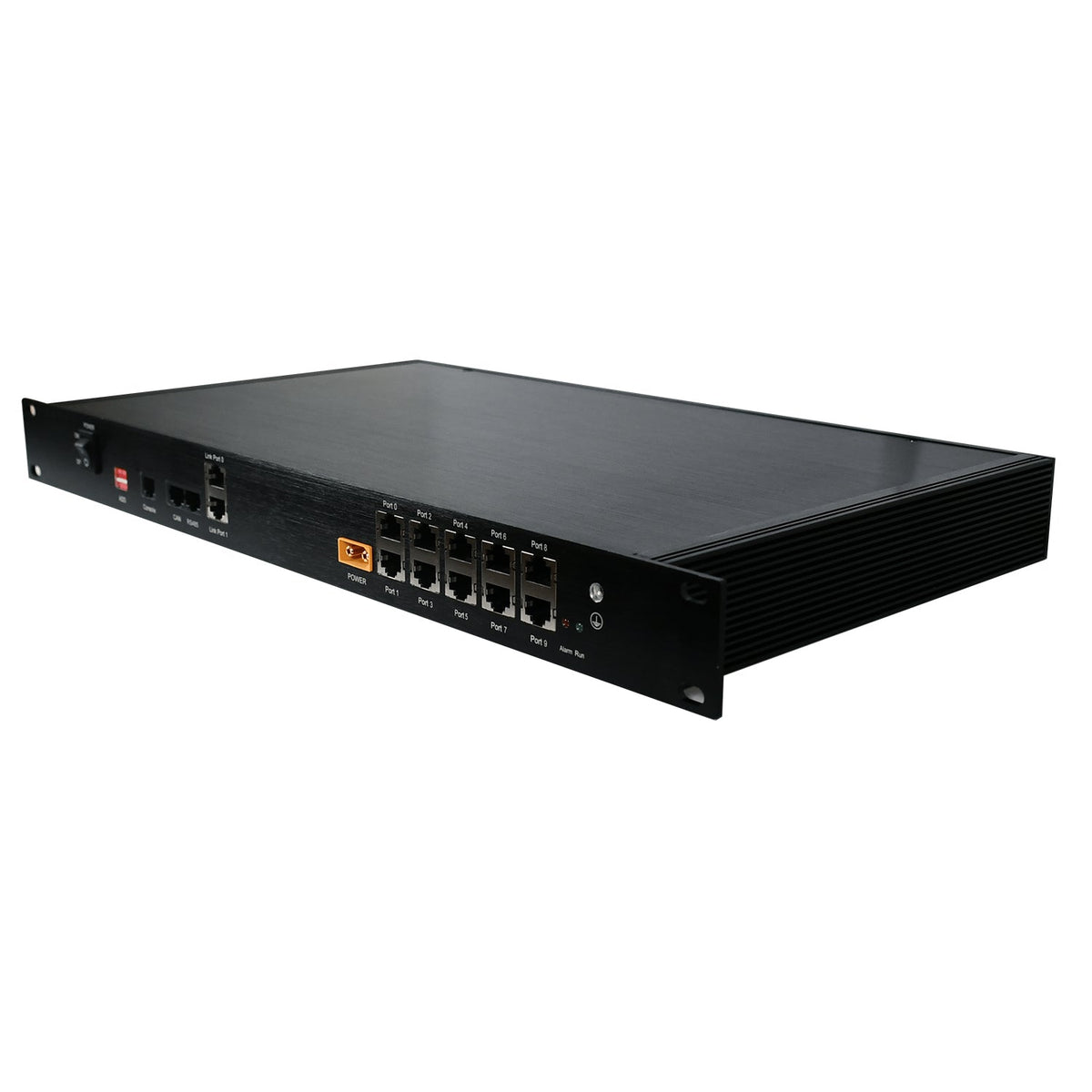

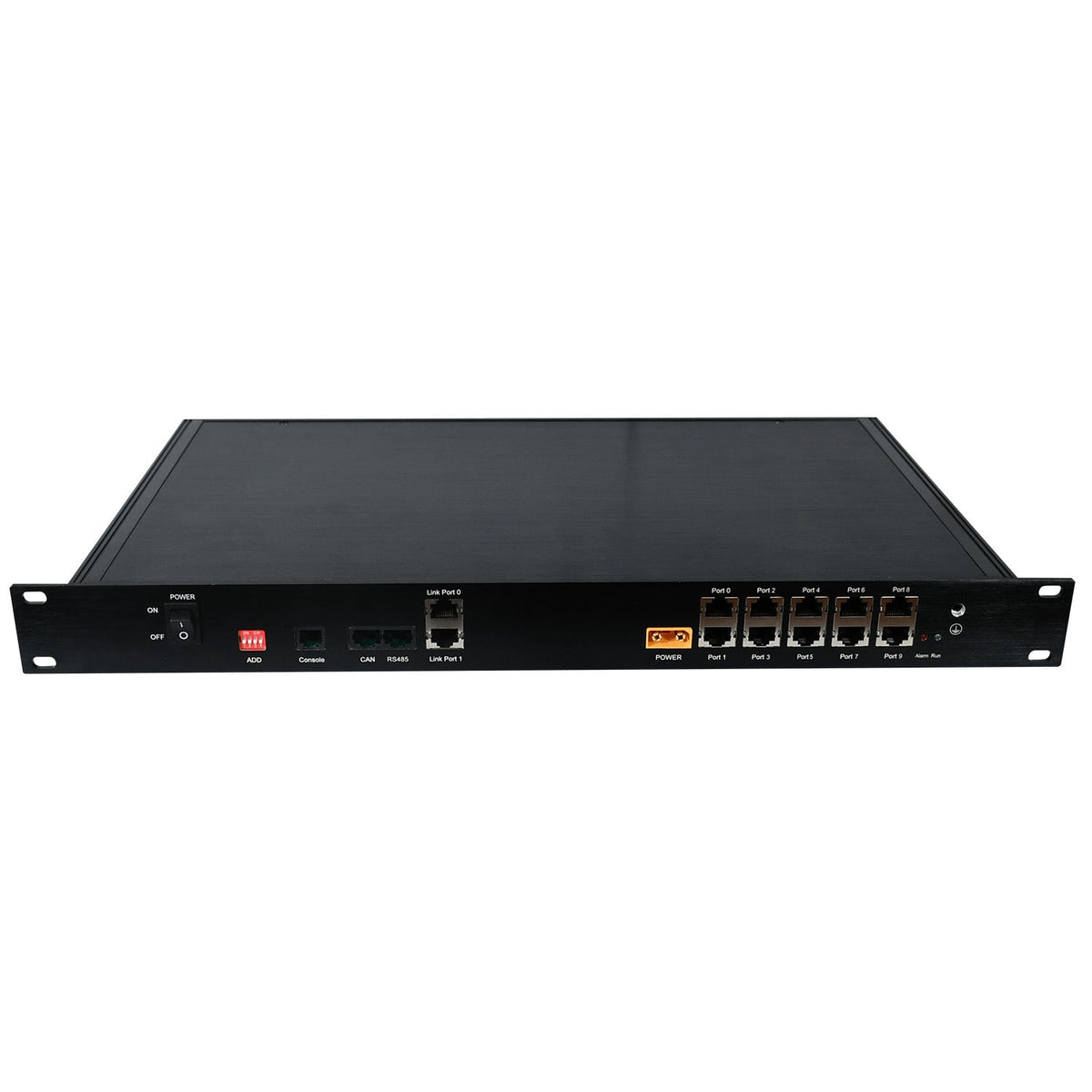

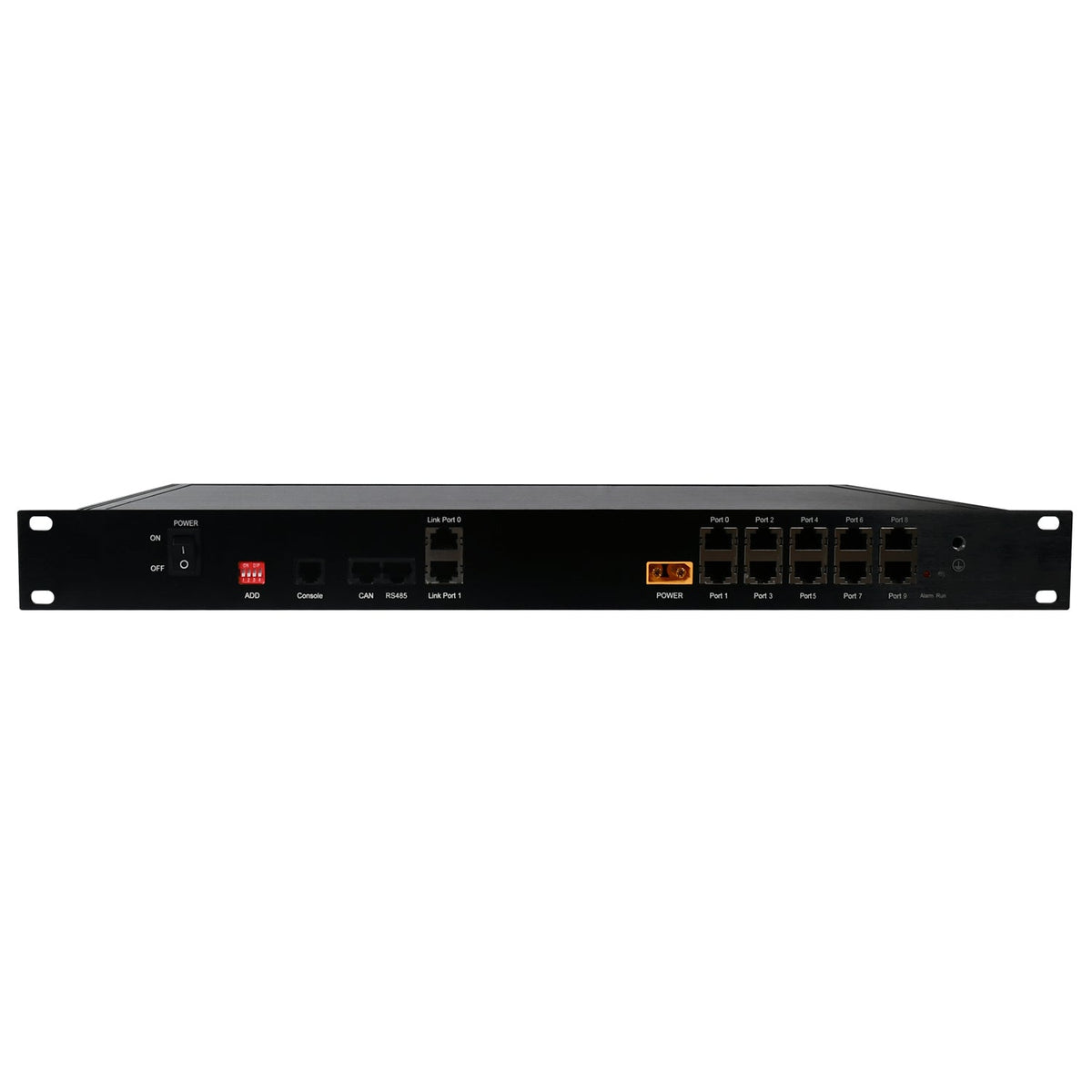

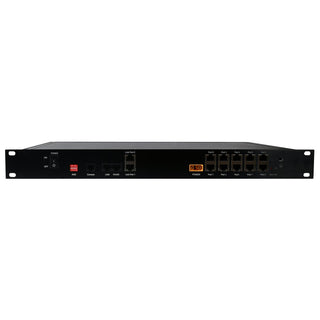

The Pytes 1U low-voltage hub manages parallel communication between multiple battery clusters and your inverters, so large Pytes V5 systems behave as one bank. It supports up to 7 clusters of up to 8 batteries each, for as much as 286.72kWh of storage, and it's required for any system with 17 or more batteries.
Highlights
- Scales big: up to 7 clusters × 8 batteries
- Up to 286.72kWh of combined storage
- Coordinates communication between battery clusters and inverters
- Required for systems with 17+ batteries
- 1U rack form factor
Specifications
| Compatible with | Pytes V5 (and E-BOX 48100R) |
| Max clusters | 7 |
| Batteries per cluster | Up to 8 |
| Form factor | 1U |
| Warranty | 10 years |
| Manufacturer | Pytes |
|---|---|
| Model Number | 1uHUB |
| Function | Parallel communication between multiple battery clusters and inverter |
| Power Input | 48 Vdc (XT90) |
| Communication | CAN / RS485 / RS232 |
| Ports | 10 x RJ45 (Port0 link; Port1-9 to master battery of each cluster) |
| Power Consumption | 2 W |
| Protection Rating | IP20 |
| Operating Temperature | -4 to 140°F (-20 to 60°C) |
| Dimensions (W x D x H) | 19 x 9.84 x 1.77 in (482 x 250 x 45 mm) |
| Weight | 4.85 lb (2.2 kg) |
| Compatibility | Pytes batteries only |
Specifications are from the manufacturer and may change. Questions? Call (888) 831-0450.
