- Controls 5-15 HV48100 battery modules
- 200-870 V controller working voltage
- CAN, RS485, dry contact and WiFi
- Low 7.56 W self-consumption
- 10-year warranty (BMU and BCU)
Ships by parcel (UPS / FedEx).
We accept
Product Documents

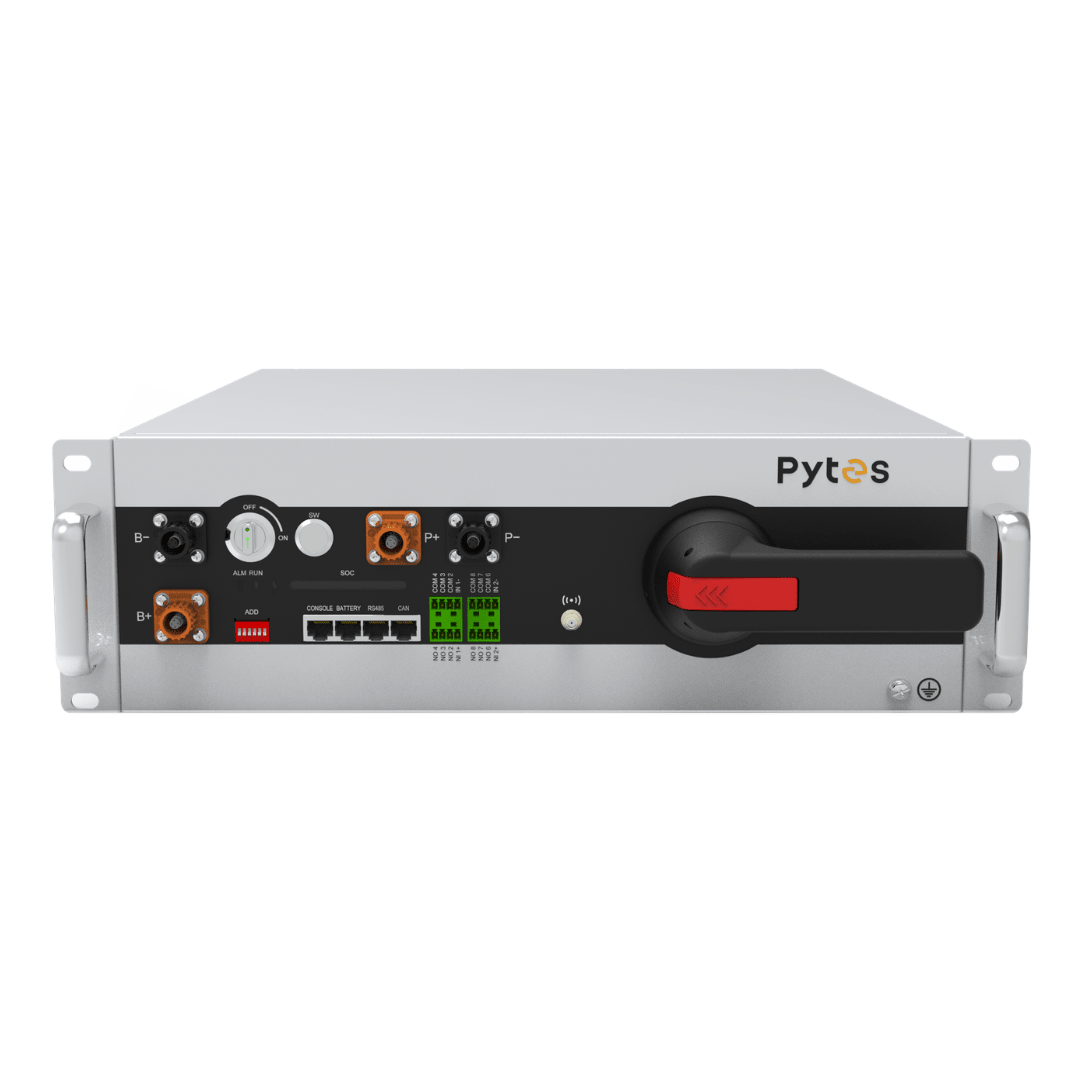

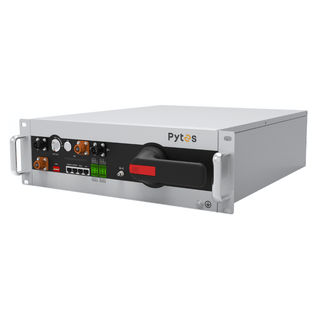

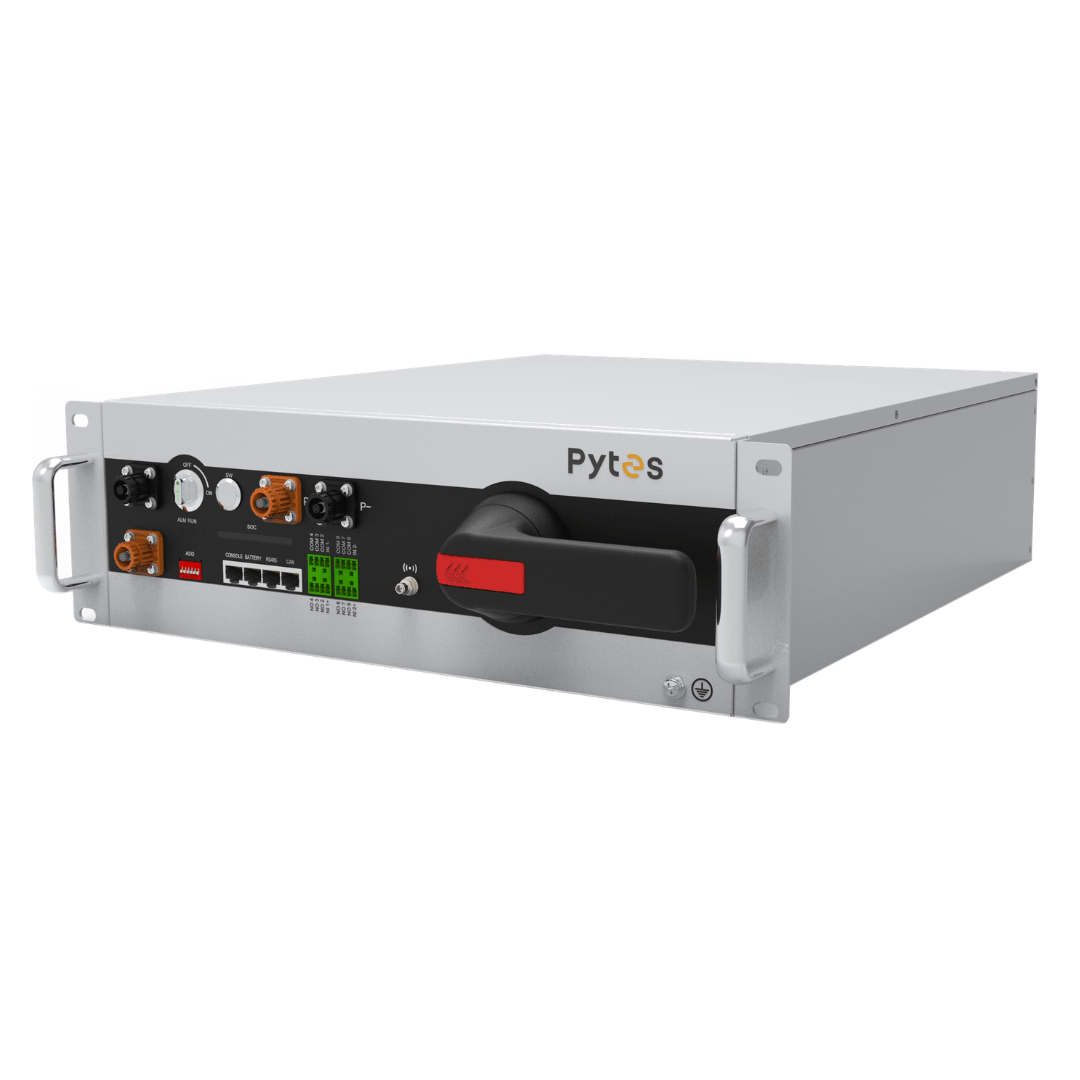

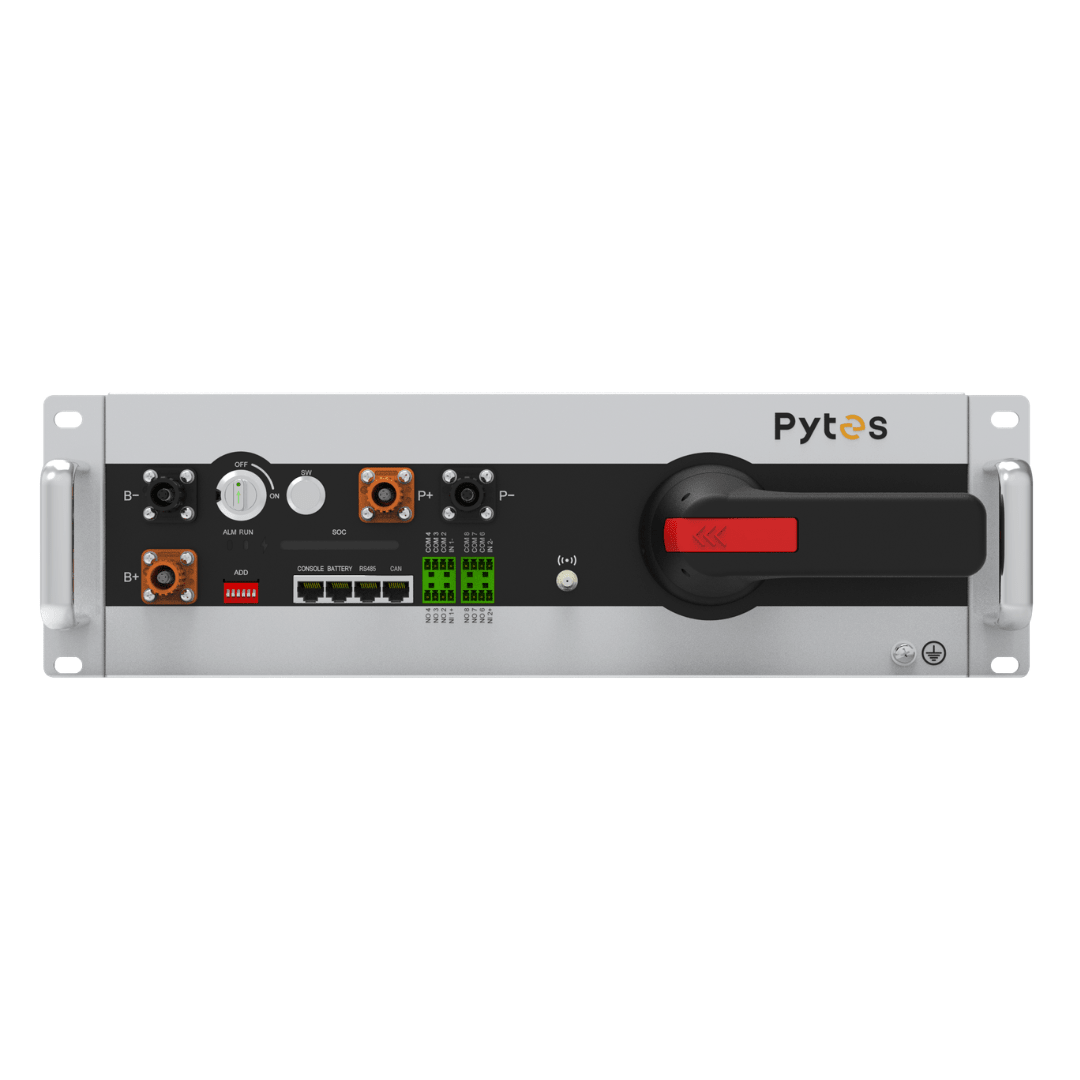

The Battery Control Unit is the central manager of a Pytes HV48100 indoor high-voltage battery system. It coordinates communication, protection and performance across every connected module. It regulates system voltage, monitors operation, and enables remote diagnostics and firmware updates for stable, efficient and safe operation in residential and commercial installs.
Highlights
- Central system control for all HV48100 modules
- Higher energy density and lower resistive losses
- Built-in protection against electrical faults and abnormal conditions
- Remote upgrades and monitoring, no site visit required
- Broad inverter compatibility across a wide voltage range
Specifications
| Compatible with | Pytes HV48100 battery modules |
| Communication | CAN, RS485, dry contact, Wi-Fi |
| IP rating | IP20 (indoor) |
| Dimensions (W × D × H) | 19.06 × 20.09 × 5.51 in |
| Weight | 29.3 lbs (13.3 kg) |
| Warranty | 10-year Pytes warranty |
| Manufacturer | Pytes |
|---|---|
| Model Number | HV48100 BCU (Battery Control Unit) |
| Controller Working Voltage | 200-870 V |
| Self-consumption Power | 7.56 W |
| Dimensions (W x D x H) | 19.06 x 20.09 x 5.51 in (484 x 510 x 140 mm) |
| Weight | 29.32 lb (13.3 kg) |
| System Communication | CAN, RS485, Dry Contact, WiFi |
| Supports | 5-15 HV48100 BMUs (256-768 V) |
| Certifications | UL 9540 Ed.3, UL 9540A, UL 1973, CEC, SGIP |
| Warranty | 10 years (BMU and BCU) |
Specifications are from the manufacturer and may change. Questions? Call (888) 831-0450.
Pytes 10 years or 6,000 cycles (BMU and BCU) warranty
| HV48100 8S/12S/15S indoor | BMU and BCU 10 years |
|---|
Download: Pytes HV48100 SE Series Warranty (US)
Manufacturer warranties are provided by the manufacturer. Keep your invoice as proof of purchase. Questions about a warranty claim? Call (888) 831-0450.
