- Outdoor and indoor installation
- IP55 cabinet for 4 x E-BOX 48100R
- Integrated busbar and DC circuit breaker
- Space-optimized floor-mount design
- Galvanized steel, natural convection
Ships by LTL freight. Too large for parcel delivery. Questions on freight? Call (888) 831-0450.
We accept
Product Documents

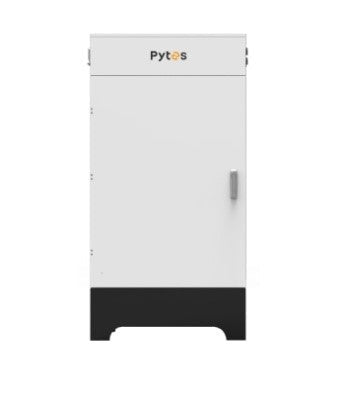

An outdoor-rated floor cabinet for four Pytes E-Box 48100R batteries (20.48kWh). An integrated busbar and DC circuit breaker simplify wiring, and the IP55 / NEMA 3 galvanized-steel housing protects the bank indoors or out.
Specifications
| Capacity | 4× E-Box 48100R (20.48kWh) |
| Structure | Integrated busbar & DC circuit breaker |
| Mounting | Floor |
| Rating | IP55, NEMA 3 |
| Material | SGCC galvanized steel |
Batteries sold separately. Ships by freight.
| Manufacturer | Pytes |
|---|---|
| Model Number | R-BOX-OC (IV) |
| Load Capacity | 4 x E-BOX 48100R |
| Structure | Busbar and DC circuit breaker integrated |
| Dimensions (L x W x H) | 31.5 x 13.0 x 62.0 in (800 x 330 x 1575 mm) |
| Weight | 176.4 lb (80 kg) |
| Mount | Floor mount |
| Enclosure Rating | IP55 |
| Enclosure Material | SGCC galvanized steel |
| Cooling | Natural convection |
Specifications are from the manufacturer and may change. Questions? Call (888) 831-0450.
2-year limited
| Coverage | PYTES (USA) limited warranty for the "R-BOX Series\R-Bracket\Forest Series": free from defects in workmanship and materials for 2 years from the original purchase date |
|---|---|
| Battery units inside the product are excluded here; they are covered by the PYTES 10-year battery warranty | |
| Exclusions include normal wear, accident or abuse, corrosion from inappropriate exposure, unauthorized installation or repair, excessive heat or cold, and shipping damage | |
| How to claim | contact the PYTES certified installer who sold the product, or PYTES at ess_support@pytesgroup.com, +1 206 407 4974 |
Manufacturer warranties are provided by the manufacturer. Keep your invoice as proof of purchase. Questions about a warranty claim? Call (888) 831-0450.
