- 61.44 kWh indoor LFP battery bank
- 12 x Pytes V5° 5.12 kWh batteries
- HV48100 12S indoor cabinet (13 slots)
- Remote monitoring and upgrading (optional WiFi)
- Integrated battery heating film
- Batteries: 10-year / 6,000-cycle warranty
Ships by LTL freight. Too large for parcel delivery. Questions on freight? Call (888) 831-0450.
We accept

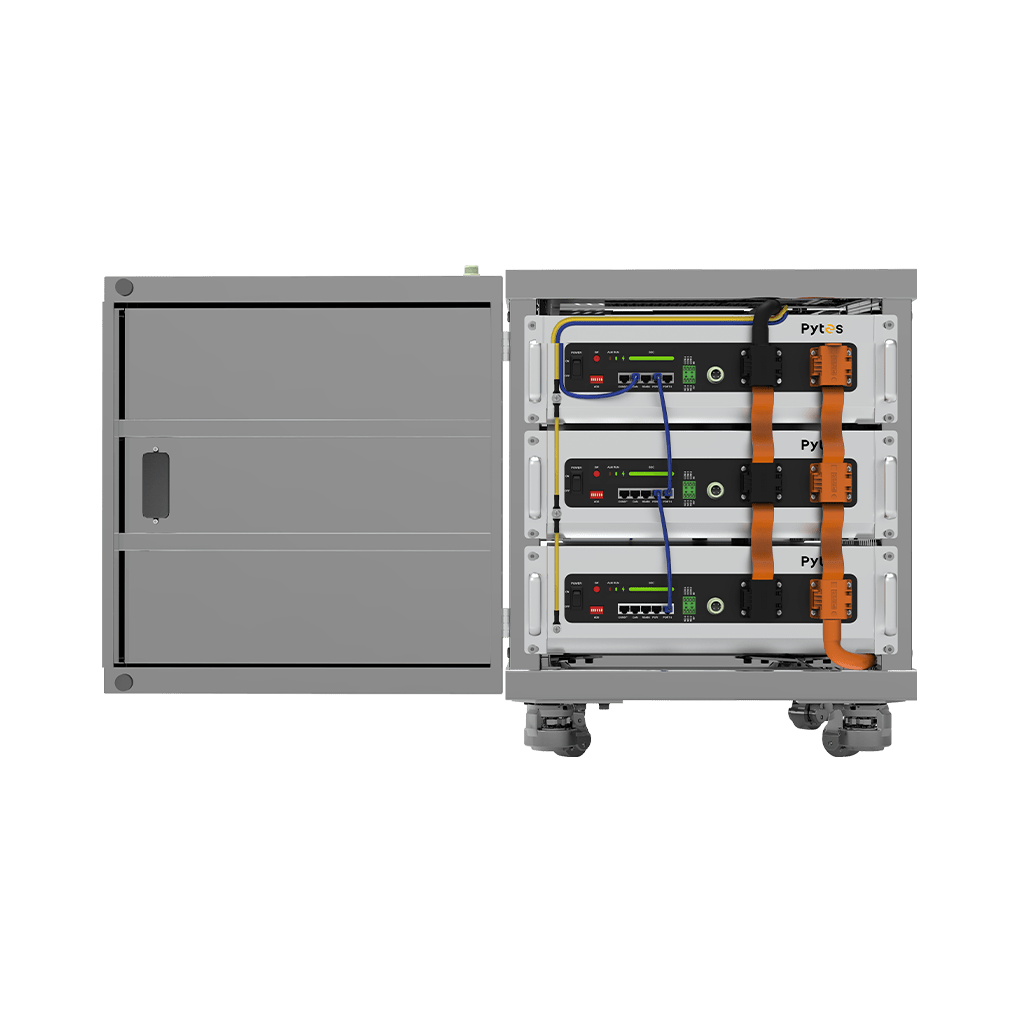

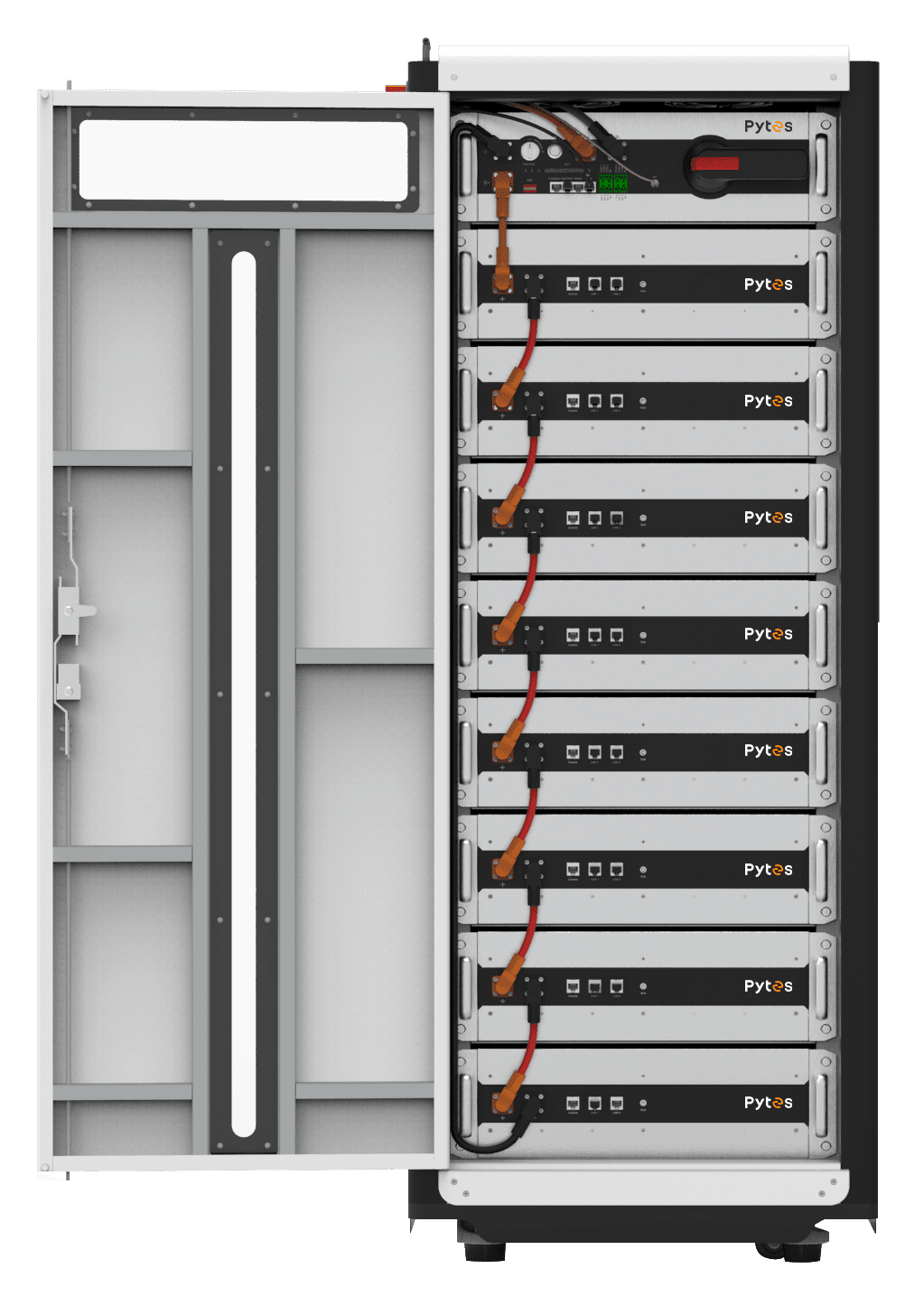

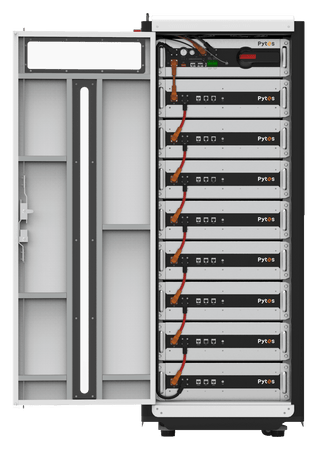

A 61.44kWh whole-home or light-commercial storage system: twelve Pytes V5 batteries in the HV48100 12S indoor cabinet, with the interconnects to wire them as three groups of four. Each group combines onto two 600A busbars with 2/0 AWG cable, and 4/0 AWG cables make the final run to the inverter.
What's included
- 12× Pytes V5 LiFePO4 battery (5.12kWh each)
- 1× Pytes HV48100 12S battery cabinet
- 2× 600A busbars
- 2/0 AWG group cables and 4/0 AWG inverter cables
Specifications
| Total storage | 61.44kWh |
| Nominal voltage | 51.2V |
| Configuration | 3 groups × 4 batteries |
| Cabinet | IP20 indoor, 82.68 × 23.43 × 26.77 in |
| Combined weight | ~1,468 lbs (batteries + cabinet) |
| Warranty | 10-year Pytes battery warranty |
Ships by freight. Professional installation recommended.
| Manufacturer | Pytes |
|---|---|
| Included | 12 x Pytes V5° battery + 1 x HV48100 12S cabinet |
| Total Energy | 61.44 kWh (12 x 5.12 kWh) |
| Battery | 51.2 V 100 Ah LFP, 100 A max charge/discharge each |
| Cabinet | 23.43 x 26.77 x 82.68 in, IP20, holds up to 13 x V5° |
| Battery Certifications | UL 9540, UL 9540A, UL 1973, CEC, SGIP |
| Approximate Total Weight | 1,468.2 lb (12 x 97 lb + 304.2 lb) |
| Battery Warranty | 10 years or 6,000 cycles |
Specifications are from the manufacturer and may change. Questions? Call (888) 831-0450.
Pytes 10 years or 6,000 cycles (whichever first) warranty
| Coverage | V5/V5α/V5α Plus, 70% capacity retained at end of term |
|---|---|
| Start | earlier of invoice date or manufacture date + 6 months |
| How to claim | contact the seller with proof of purchase, defect description, serial number and install date |
