- 9 kW continuous AC from batteries
- 50A grid pass-through
- 185A 48V battery charger
- Built-in transfer switch and dedicated GEN port
- Generator AutoStart capable
- IP65 / NEMA 3R outdoor enclosure
- UL 1741 SB / IEEE 1547.1 certified
- 10-year limited warranty
Ships by parcel (UPS / FedEx).
We accept

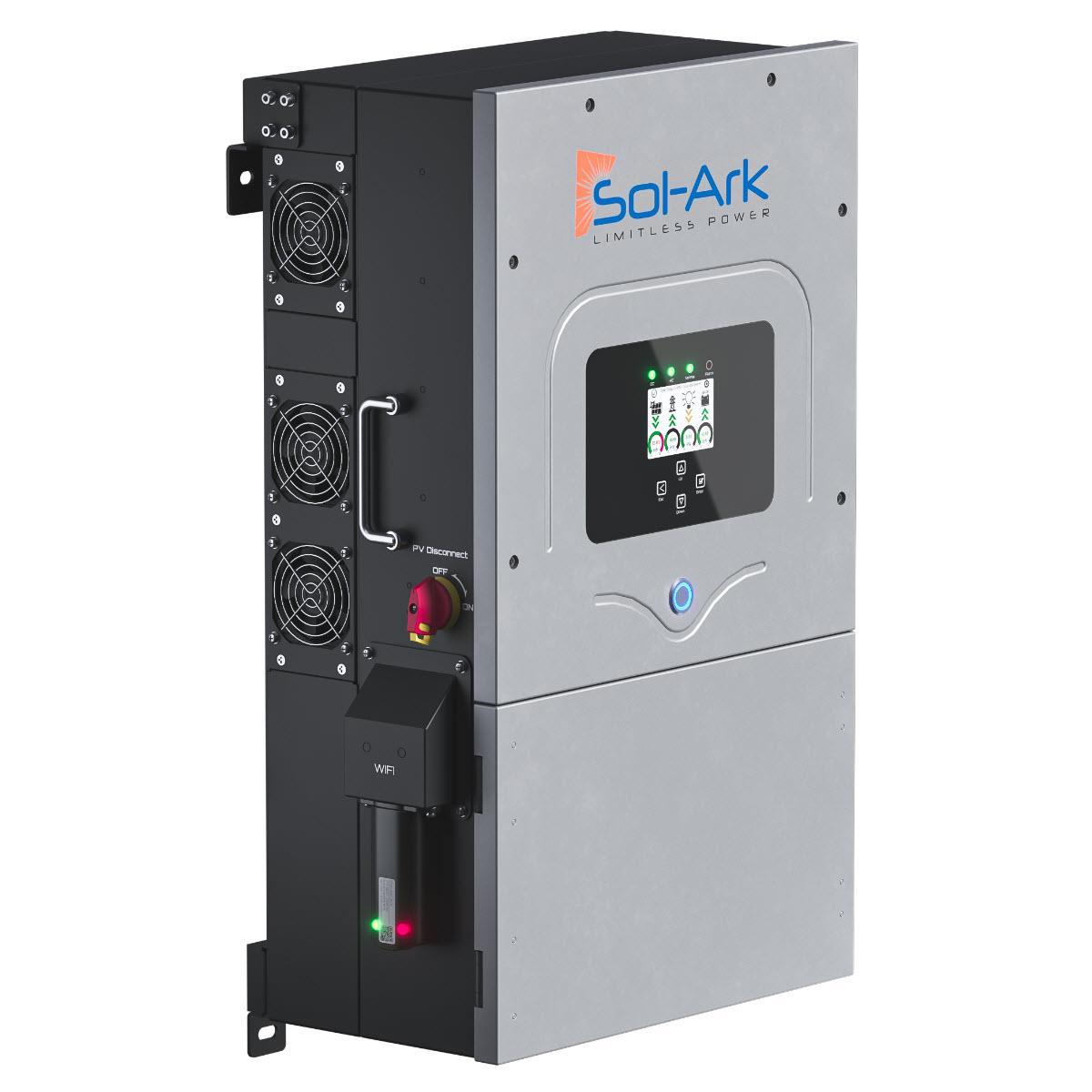

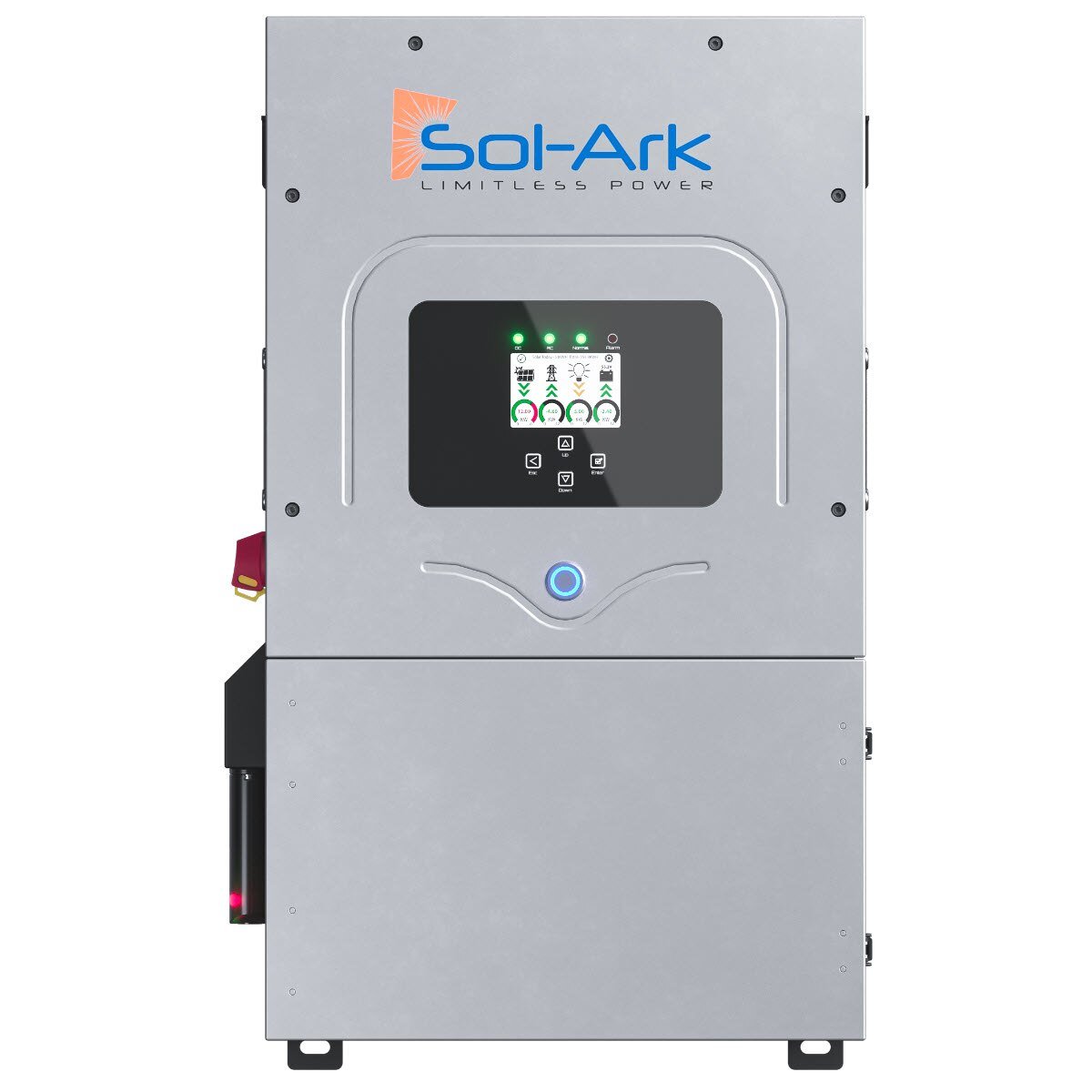

The Sol-Ark Essentials 12K (12K-2P-N) is a cost-effective all-in-one hybrid inverter for partial-home backup. It provides 9kW of continuous output with a 16kVA surge, enough to start small well pumps, compressors and other motor loads. It supports DC- and AC-coupled solar, transfers to backup in 4ms, and has a 63A grid passthrough, Smart Load output and GEN port, so it doesn't need extra PCS hardware.
Highlights
- 9kW continuous, 16kVA 10 s surge (25kVA for 100ms)
- 2 MPPTs, 13kW max PV, 500V max input
- 4ms transfer; 63A grid passthrough
- Stack up to 9 in parallel
- Integrated protection: PV disconnect, rapid shutdown, arc-fault and ground-fault detection, 250A battery breaker, 63A AC breaker
- Wi-Fi and LAN monitoring hardware included; 10-year warranty
PV input
| Max allowed PV | 13,000W (12,000W usable) |
| MPPT range / rated | 150–500V / 175–425V |
| Start-up / max input voltage | 125V / 500V |
| MPPTs × strings | 2 × 2; 20A per MPPT |
| Max AC-coupled input | 9,600W |
AC output
| Voltage | 120/240V, 120/208V, 220V; 50/60Hz |
| Continuous power | 9,000W (37.5A) |
| Peak (10 s / 100ms) | 16,000VA / 25,000VA @ 240V |
| Grid passthrough | 63A |
| Transfer time | 4ms |
| Efficiency | 96.5% CEC / 97.5% max |
Battery & general
| Battery | 48V lithium, 43–63V, 185A max charge/discharge |
| BMS communication | CANbus & RS485 Modbus |
| Generator start | 2-wire AGS, integrated |
| Dimensions (H × W × D) | 29.5 × 17.7 × 10 in |
| Weight | 78 lbs (35.4 kg) |
| Enclosure | IP65 / NEMA 3R; -13 to 131°F |
| Idle draw / noise | 60W / <30dB |
| Certifications | UL 1741 SB, UL 1741 SA11, UL 1741 CRD-PCS, IEEE 1547.1-2020, UL 1699B, UL 1998, CA Rule 21, HECO 14H, CSA C22.2 |
| Warranty | 10 years |
| Manufacturer | Sol-Ark |
|---|---|
| Model Number | 12K-2P-N (SKU 12K-2P) |
| Max Continuous AC Power | 9,000 W |
| Peak Power Off-Grid | 16,000 VA 10 s; 25,000 VA 100 ms @ 240V |
| PV Input | 12,000 W usable (13,000 W max allowed) |
| MPPTs | 2 |
| MPPT Range | 175-425 V rated (150-500 V full) |
| Battery | 48 V nominal, 43-63 V operating |
| Max Battery Charge/Discharge Current | 185 A |
| Efficiency | 96.5% CEC, 97.5% max |
| Enclosure | IP65 / NEMA 3R |
| Operating Temp | -25 to 55 C (derating above 45 C) |
| Certifications | UL 1741 SB, UL 1741 SA, UL 1741 CRD-PCS, IEEE 1547.1-2020, UL 1699B, UL 1998, FCC |
| Dimensions | 29.5 x 17.7 x 10 in (750 x 450 x 254 mm) |
| Weight | 78 lb (35.4 kg) |
| Warranty | 10 years |
Specifications are from the manufacturer and may change. Questions? Call (888) 831-0450.
Sol-Ark 10-Year Limited Warranty (LCD screen and fans 5 years)
| Coverage | defects in materials and workmanship, from later of purchase or receipt date |
|---|---|
| How to claim | support@sol-ark.com or +1-972-575-8875 ext. 2; RMA required |
Download: Sol-Ark 12K-2P-N Limited Warranty (SK150-0046-002)
