- 12K BTU 115V ductless heat pump
- SEER2 22.5, HSPF2 9.7
- Heats down to 5°F outdoor
- Pre-vacuumed quick-connect line set
- R32 refrigerant
- Not compatible with EG4 multizone outdoor units
- 5-year limited warranty
Ships by parcel (UPS / FedEx).
We accept

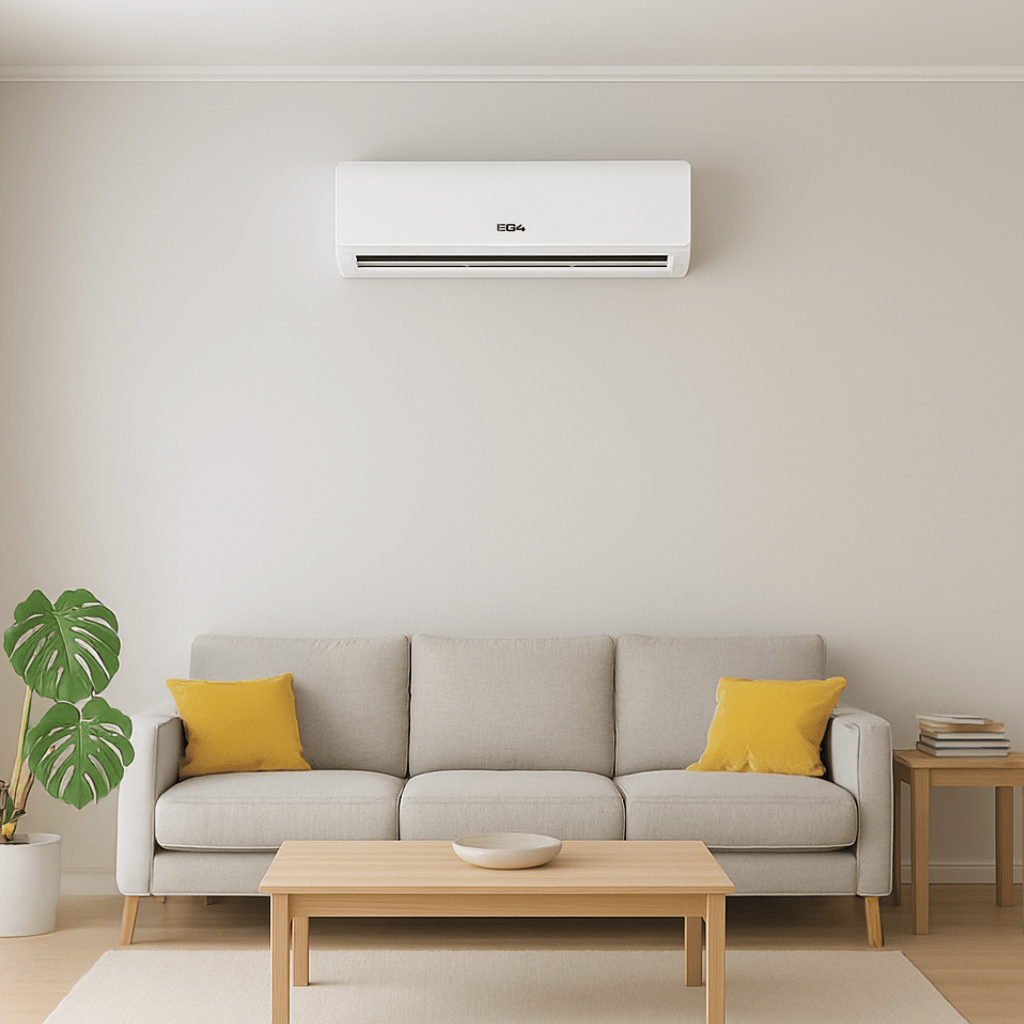

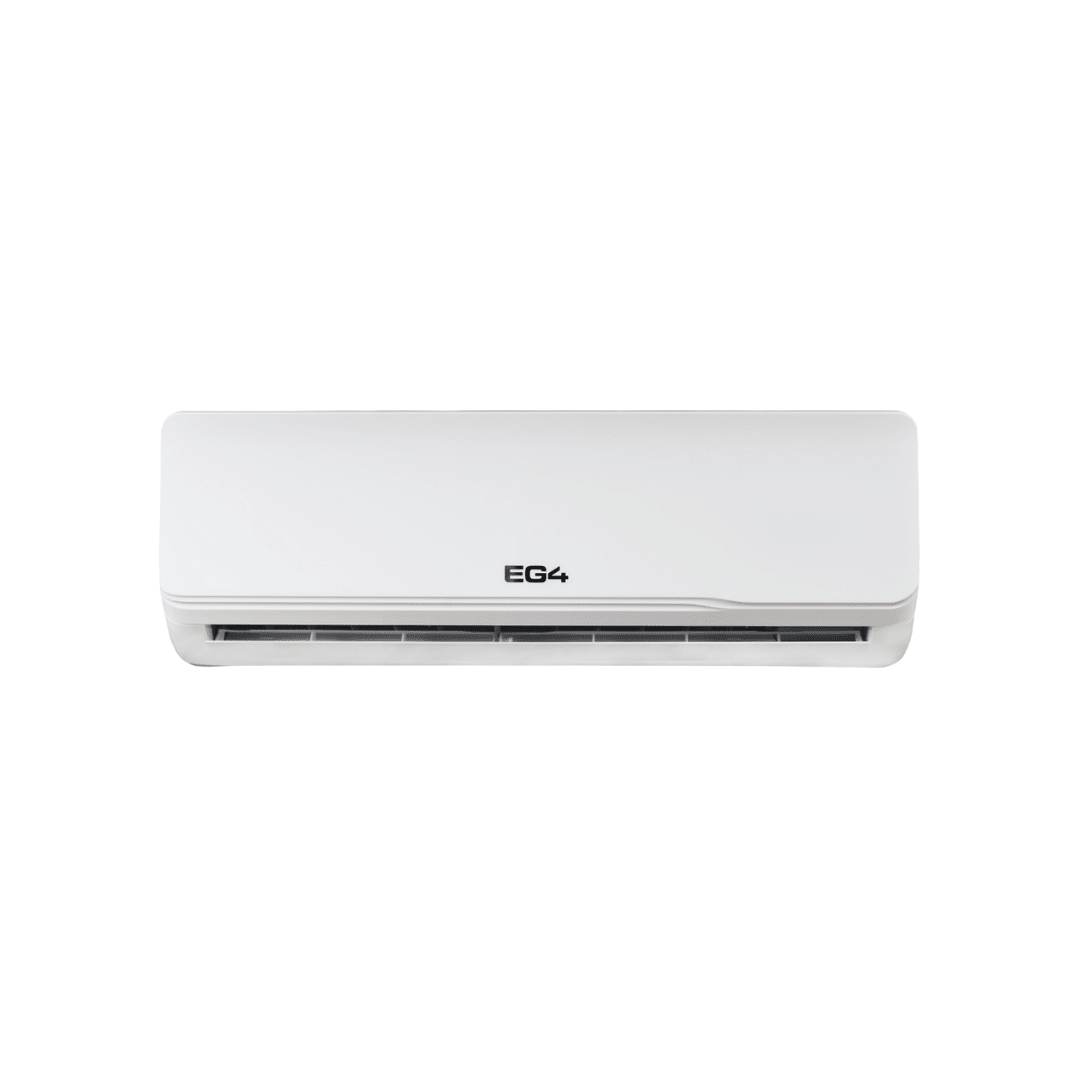

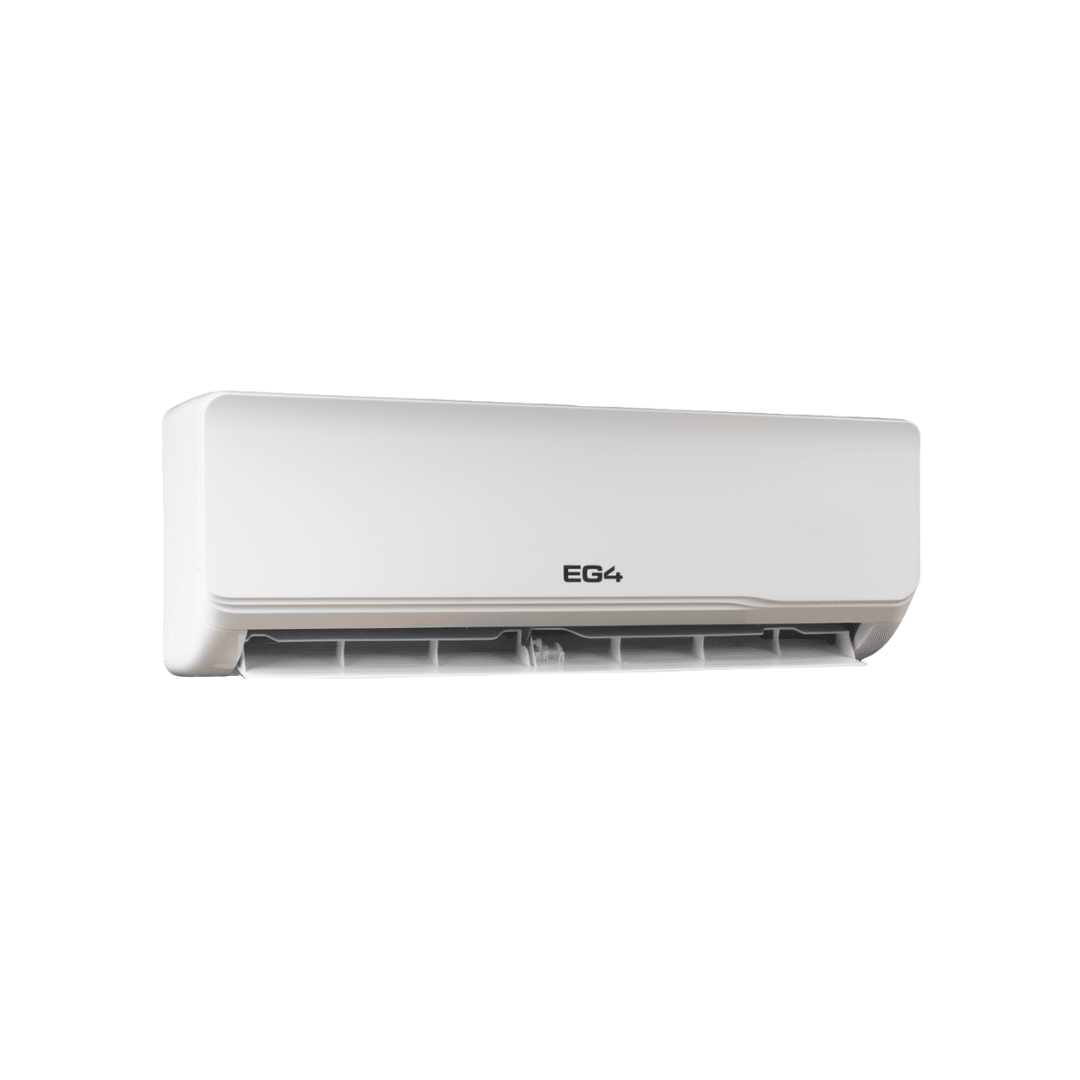

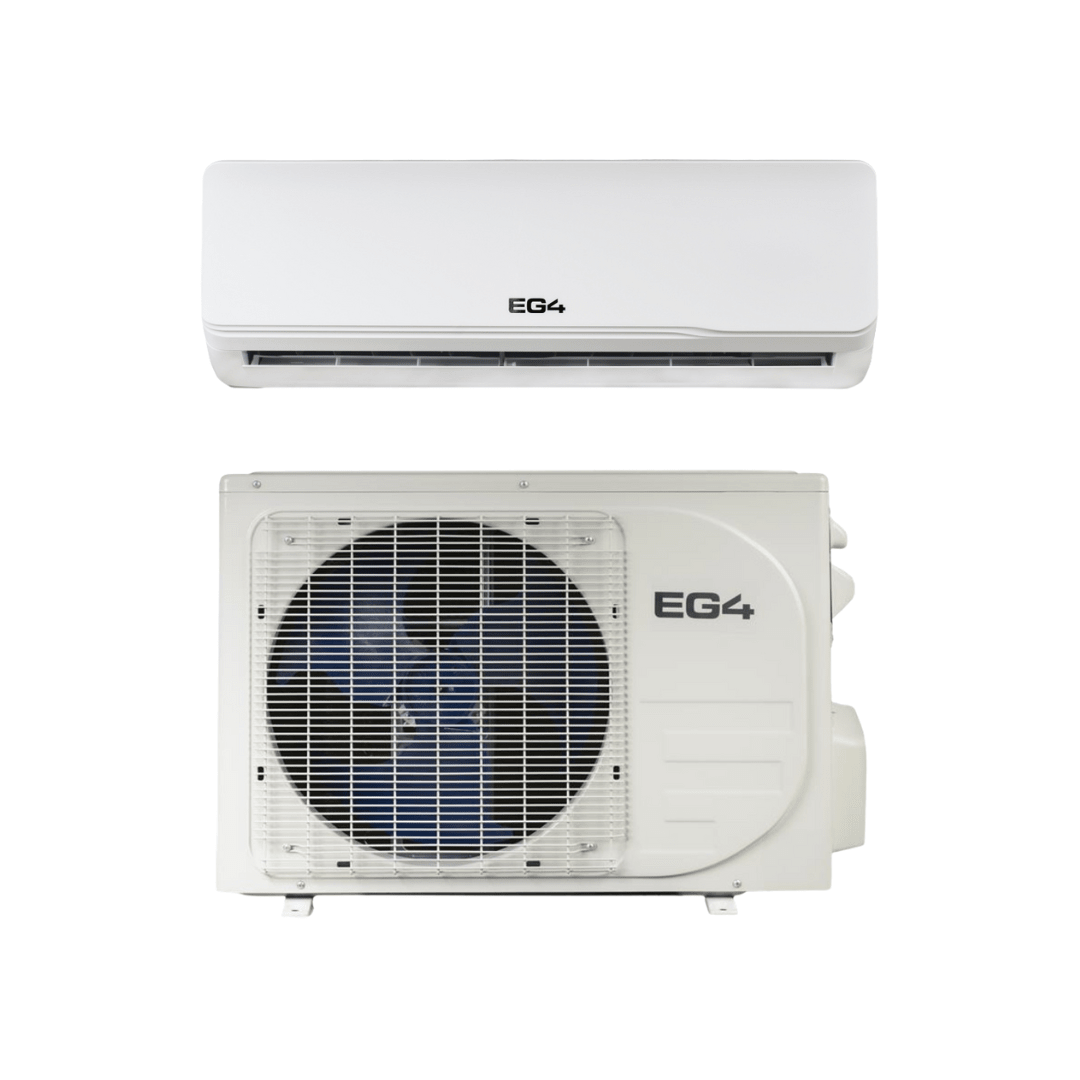

The EG4 12K BTU mini-split (outdoor DWA4-12KR2 / indoor DGA3-12KR2) is a 115V, single-zone heat pump for medium rooms and offices of about 500–650 sq. ft. EG4's Plug-N-Cool quick-connect, self-closing valves let you connect the pre-vacuumed line set without special tools, training or a vacuum pump. A variable-speed inverter compressor, Wi-Fi control and factory-charged R32 refrigerant give you efficient, quiet comfort all year.
Highlights
- Heating and cooling: heats down to 5°F outdoor temperature

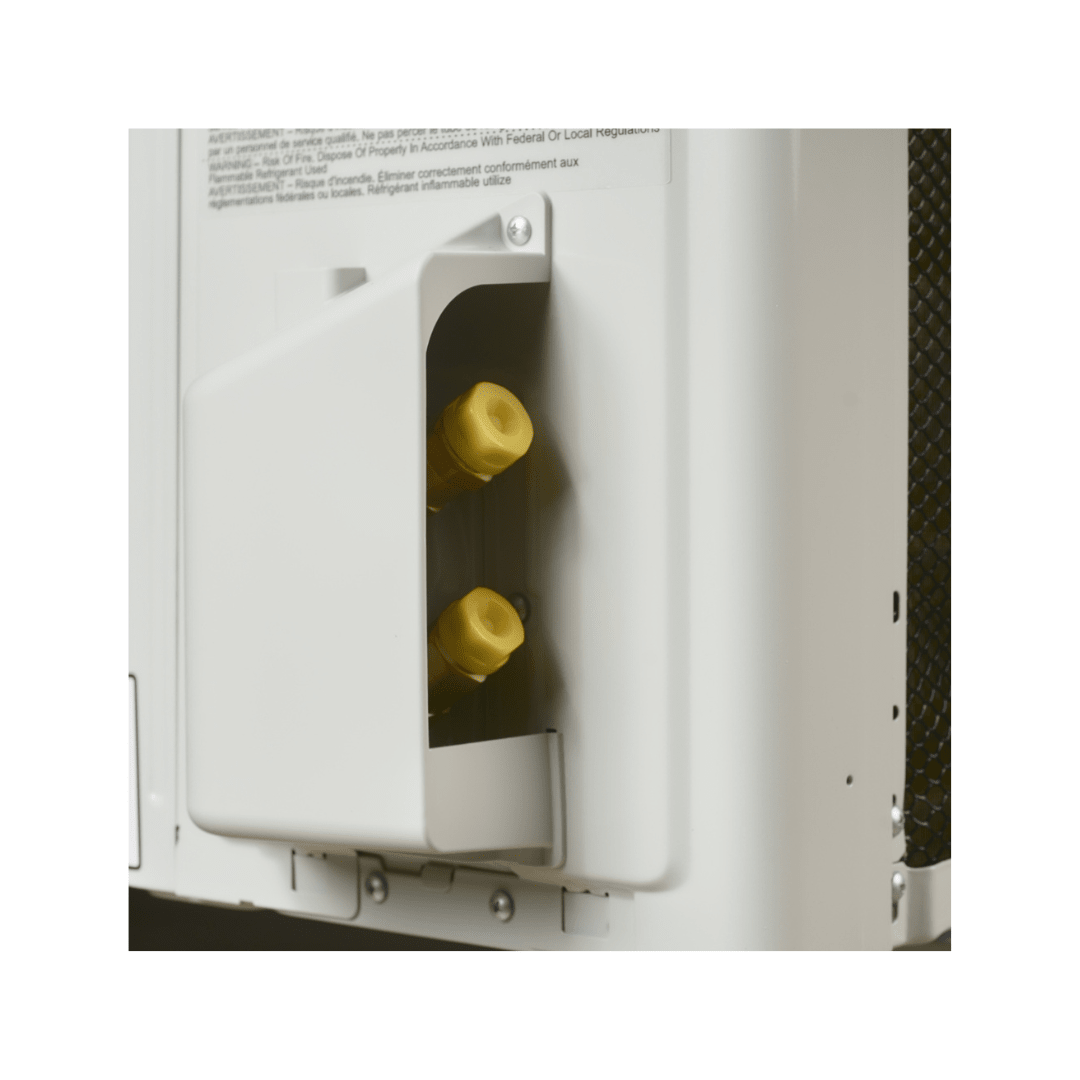

- Plug-N-Cool DIY install: pre-vacuumed quick-connect line set, no vacuum pump needed
- Variable-speed inverter compressor balances comfort and power use
- Smart Wi-Fi control of temperature, mode and fan speed
- Quiet: as low as 29 dB(A) indoors at low fan
- High efficiency: SEER2 22.5; ENERGY STAR and AHRI certified
Specifications
| Cooling capacity | 12,000 BTU/h (3,000–12,500 range) |
| Heating capacity | 12,000 BTU/h (3,000–13,000 range) |
| Efficiency | SEER2 22.5 | EER2 12.6 | HSPF2 9.7 |
| Power supply | 115V AC single phase, 60 Hz; 20A max breaker |
| Input power | 190–950W cooling / 190–980W heating |
| Refrigerant | R32, 27.5 oz factory charge |
| Line set | 16.4 ft pre-charged, 1/4 in. liquid / 3/8 in. gas |
| Max line length / elevation | 49.2 ft / 26.2 ft |
| Noise | Indoor 29–41.5 dB(A) / outdoor 52 dB(A) |
| Outdoor operating range | Cooling 32–131°F | heating 5–86°F |

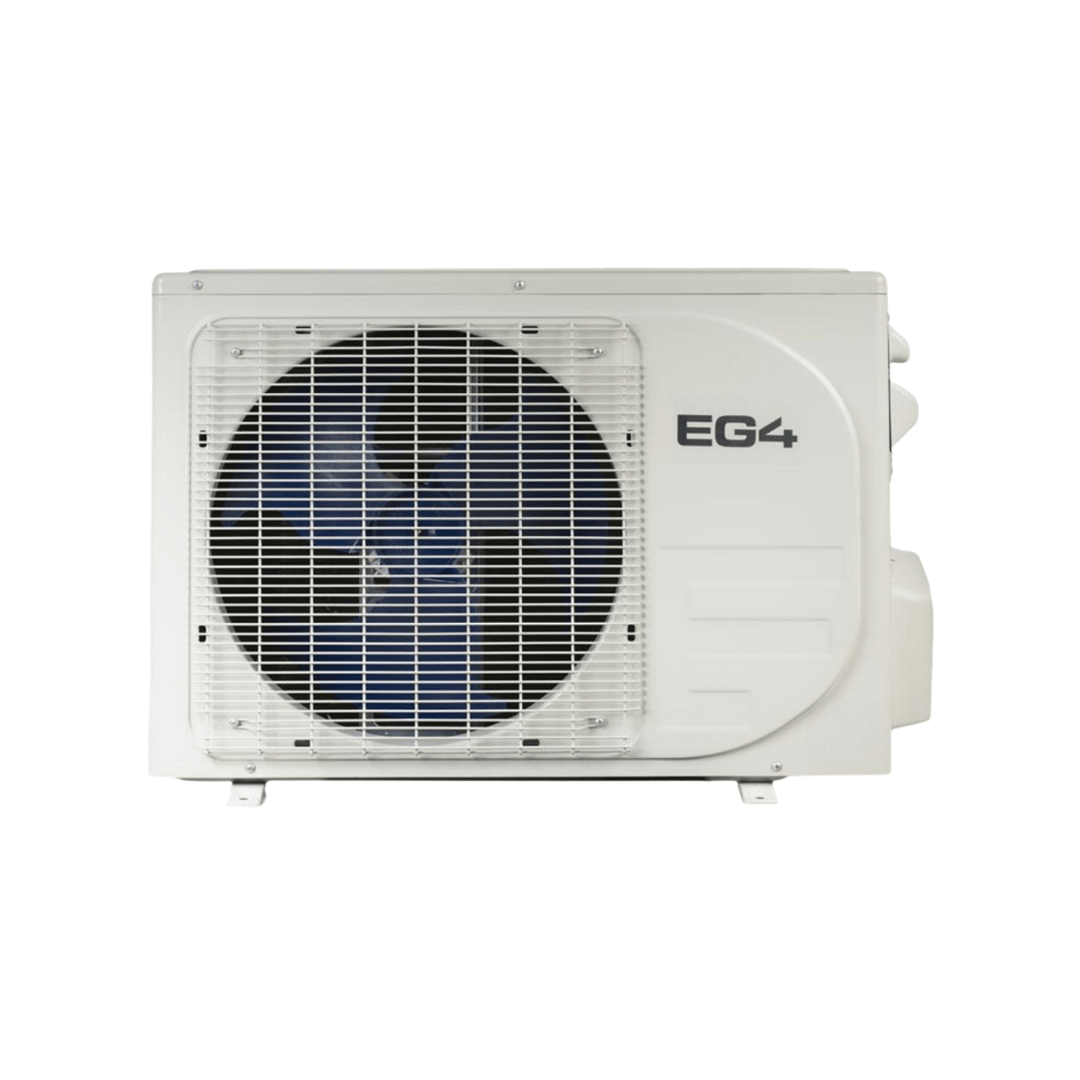

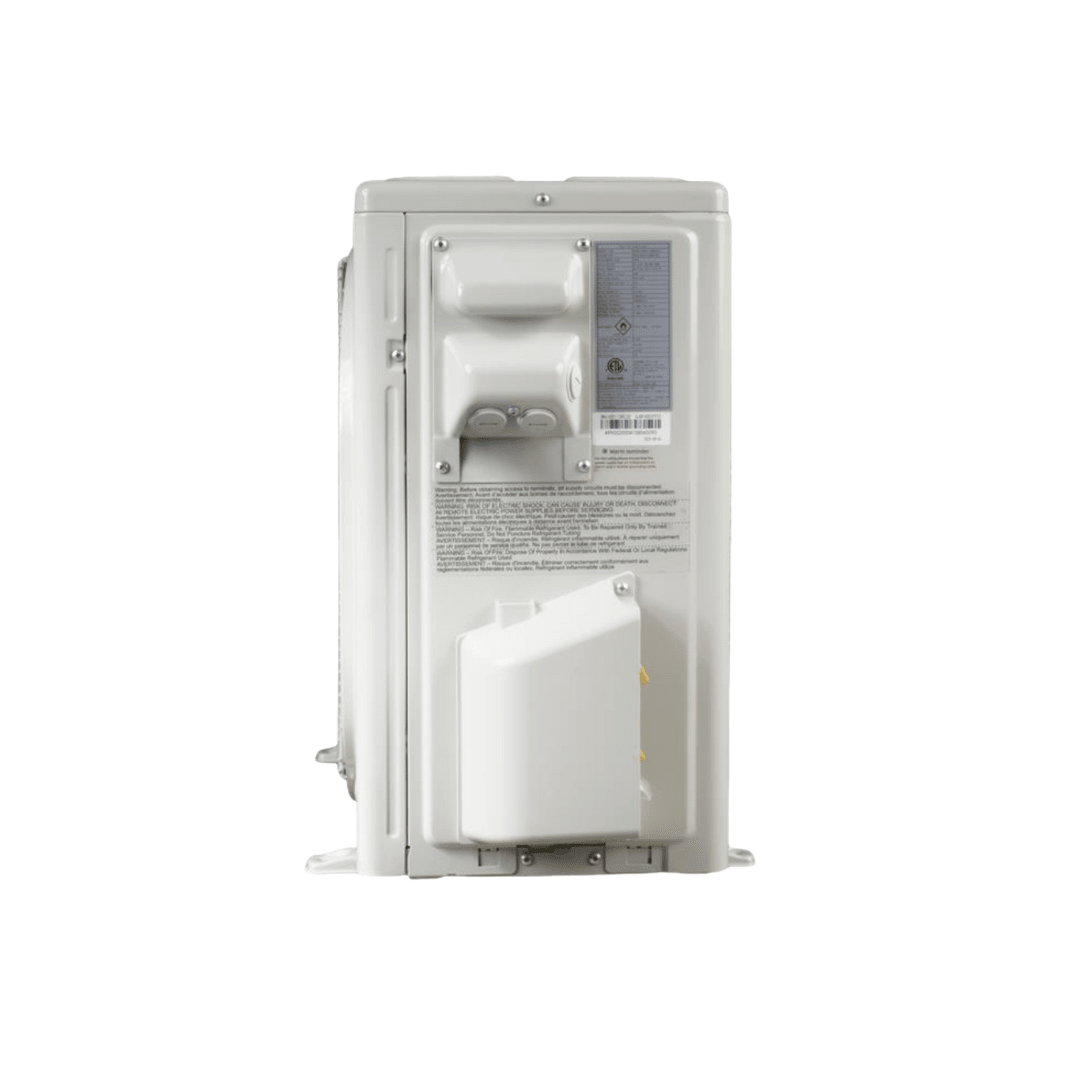

| Outdoor unit | 31.6 × 12.7 × 22.2 in; 62.9 lbs net / 73.9 lbs shipping |
| Indoor unit | 33.07 × 8.07 × 11.61 in; 20.9 lbs net / 26 lbs shipping |
| Total shipping weight | ~99.9 lbs (two boxes) |
| Warranty | 5-year EG4 limited warranty |
Note: This single-zone system's indoor head is not compatible with EG4 Multizone outdoor units.
| Manufacturer | EG4 Electronics |
|---|---|
| Model Number | DWA4-12KR2 (outdoor) / DGA3-12KR2 (indoor) |
| Cooling Capacity | 12,000 BTU/h (3,000-12,500) |
| Heating Capacity | 12,000 BTU/h (3,000-13,000) |
| SEER2 / HSPF2 / EER2 | 22.5 / 9.7 / 12.6 |
| Power Supply | 115 VAC, 60 Hz |
| Refrigerant | R32, 27.5 oz |
| Line Set | pre-charged 16.4 ft quick-connect (max 49.2 ft); 1/4 in liquid, 3/8 in gas |
| Operating Temp (outdoor) | cooling 32-131°F, heating 5-86°F |
| Noise | indoor 41.5-29 dB(A), outdoor 52 dB(A) |
| Indoor Unit (WxDxH) | 33.07 x 8.07 x 11.61 in, 20.9 lb |
| Outdoor Unit (WxDxH) | 31.6 x 12.7 x 22.2 in, 62.9 lb |
| Packaged | indoor 26.0 lb (36.22 x 11.42 x 14.17 in); outdoor 73.9 lb (35.8 x 15.9 x 24.5 in) |
| Warranty | 5-year limited |
Specifications are from the manufacturer and may change. Questions? Call (888) 831-0450.
EG4 5-year limited product replacement warranty
| Coverage | 5 calendar years from original purchase, all parts exchanges |
|---|---|
| Registration | register within first year, or keep proof of purchase from an EG4 authorized distributor |
| Transfer | original purchaser plus one transferee |
| How to claim | contact original place of purchase or EG4 |
Download: EG4 Mini-Split Warranty Document (5-Year Limited)
Manufacturer warranties are provided by the manufacturer. Keep your invoice as proof of purchase. Questions about a warranty claim? Call (888) 831-0450.
