- 24,000 BTU hybrid AC/DC heat pump
- Runs on solar DC, grid AC, or both, auto switching
- Up to 2,200W direct solar input, no inverter
- R32 refrigerant, pre-vacuumed quick-connect line set
- IR remote and Wi-Fi app control
- Not compatible with EG4 multizone systems
- 5-year limited warranty
Ships by LTL freight. Too large for parcel delivery. Questions on freight? Call (888) 831-0450.
We accept

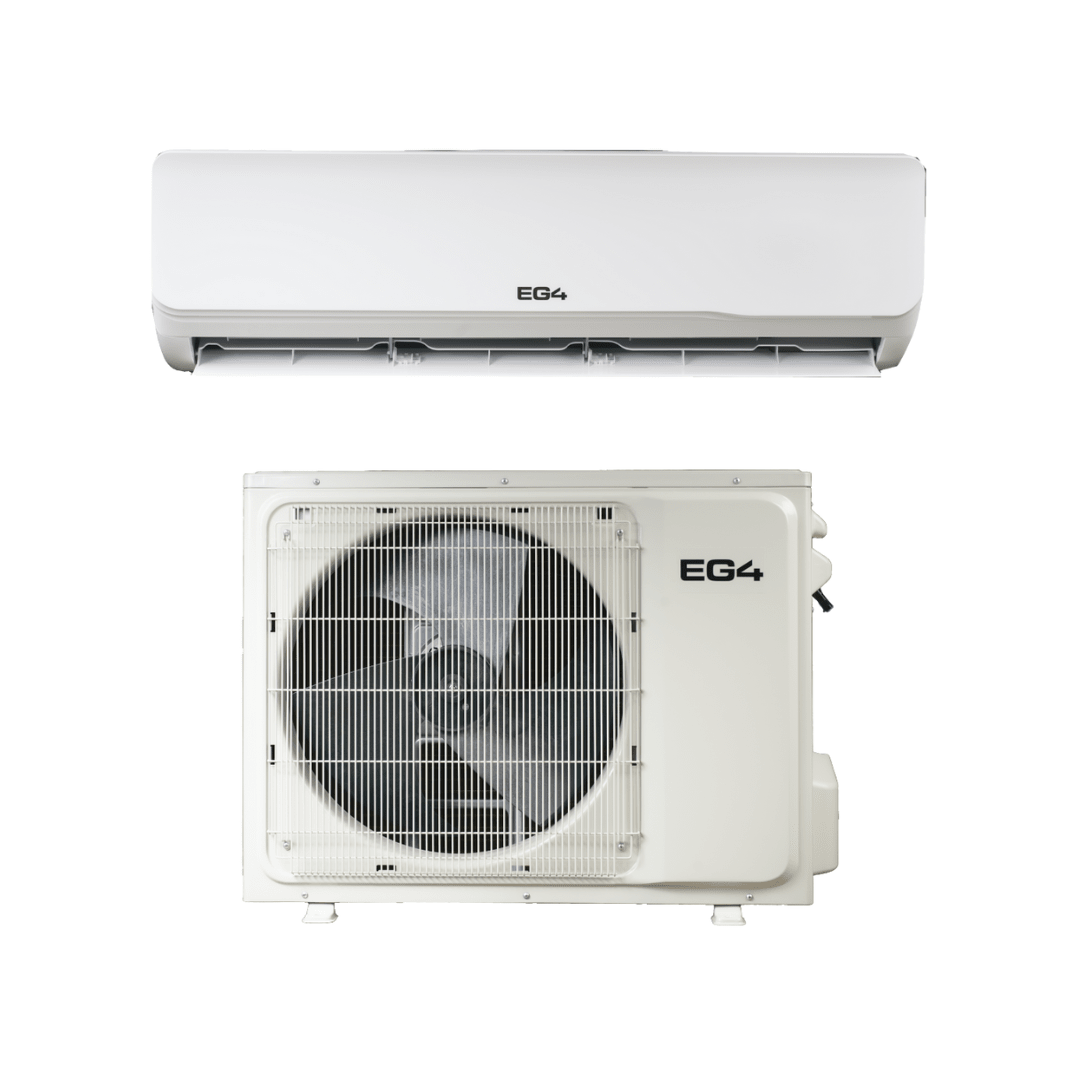

The EG4 24K Hybrid Mini Split heats and cools spaces up to about 1,000 sq. ft. using solar power, grid power, or both together. Its hybrid controller switches between sources automatically, with no interruption, to keep you comfortable while minimizing grid use. Connect up to 2,200W of solar DC straight to the outdoor unit with no inverter required. It ships pre-charged with R32 and leak-resistant quick-connect line sets, includes Wi-Fi app control, and is built to run efficiently in extreme temperatures. It's ideal for off-grid, hybrid or energy-conscious homes.
Highlights
- True hybrid: solar DC (90–380 VDC), AC grid, or both, with automatic switching
- 24,000 BTU of heating and cooling for up to ~1,000 sq. ft.
- Direct solar input: up to 2,200W, no inverter needed
- Smart control: included IR remote and Wi-Fi app
- Quick install: pre-vacuumed, leak-resistant line sets
- Quiet, durable design with low-noise indoor operation
Specifications
| Capacity | 24,000 BTU |
| Coverage | Up to ~1,000 sq. ft. |
| Solar DC input | Up to 2,200W, 90–380 VDC |
| Refrigerant | R32 (pre-charged) |
| Indoor unit weight | 33.1 lbs |
| Outdoor unit weight | 102.5 lbs |
| Warranty | 5-year EG4 limited warranty |
Note: Line set extensions are not currently available for this model. Not compatible with EG4 Multizone systems; the units will not work when paired together.
| Manufacturer | EG4 Electronics |
|---|---|
| Model Number | DWB3-ACDC-24R2 (outdoor) / DGA2-ACDC-24KR2 (indoor) |
| Cooling Capacity | 24,000 BTU/h (6,100-25,200) |
| Heating Capacity | 24,000 BTU/h (6,000-26,000) |
| SEER2 / HSPF2 | 21 / 7.9 (region V) |
| AC Power | 208-240 VAC, 60 Hz |
| Solar DC Input | 150-380 VDC, 2200W rated, 20A Isc max |
| Refrigerant | R32, 40.57 oz |
| Line Set | 16.4 ft pre-charged; 1/4 in liquid, 1/2 in gas; max 82 ft |
| Noise | indoor 50-39 dB(A), outdoor 58 dB(A) |
| Indoor Unit | 42.5 x 9.3 x 13.0 in, 33.1 lb (38.6 lb packaged) |
| Outdoor Unit | 35.4 x 13.3 x 27.6 in, 102.5 lb (114.6 lb packaged) |
| Warranty | 5-year limited |
Specifications are from the manufacturer and may change. Questions? Call (888) 831-0450.
EG4 5-year limited product replacement warranty
| Coverage | 5 calendar years from original purchase, all parts exchanges |
|---|---|
| Registration | register within first year, or keep proof of purchase from an EG4 authorized distributor |
| Transfer | original purchaser plus one transferee |
| How to claim | contact original place of purchase or EG4 |
Download: EG4 Mini-Split Warranty Document (5-Year Limited)
Manufacturer warranties are provided by the manufacturer. Keep your invoice as proof of purchase. Questions about a warranty claim? Call (888) 831-0450.
