- 4/0 AWG UL10269 power cables
- 300 A current rating
- 1000 V, 105°C rated insulation
- M10 copper lugs (DTF120)
- Red positive and black negative pair
Ships by parcel (UPS / FedEx).
We accept

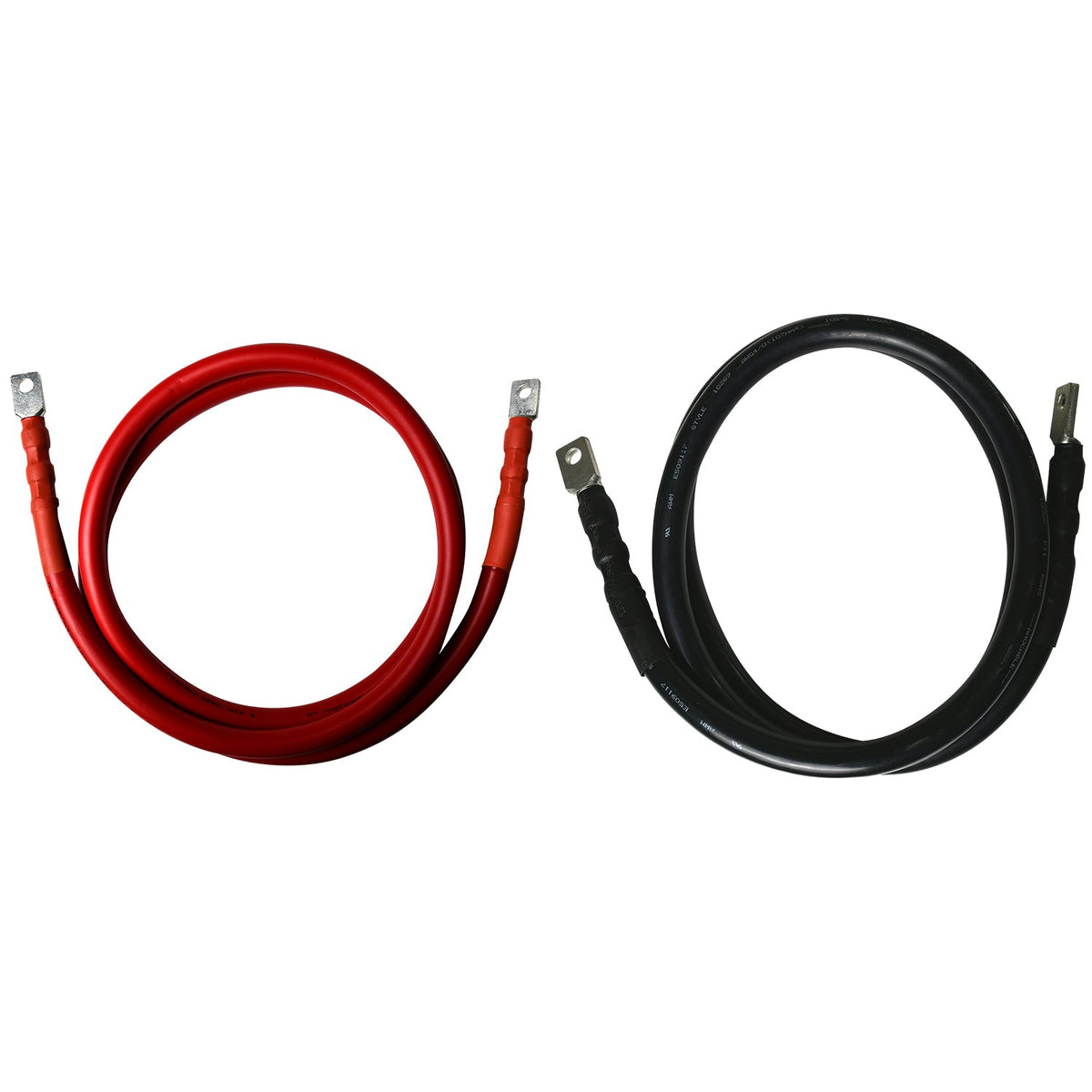

Heavy-duty 4/0 AWG power cables for high-current runs between a battery busbar and the inverter in larger Pytes storage systems. They're rated for 300A and up to 1000V, with M10 (3/8 in.) lugs for secure connections and cleaner power distribution.
Specifications
| Type | Busbar-to-inverter power cable |
| Wire size | 4/0 AWG |
| Current rating | 300A |
| Voltage rating | 1000V |
| Terminals | M10 (3/8 in.) lugs |
| Manufacturer | Pytes |
|---|---|
| Cable Type | UL10269 4/0 AWG (0000AWG) |
| Current Rating | 300 A |
| Voltage Rating | 1000 V |
| Temperature Rating | 105°C |
| Reference Standards | UL758, UL1581 |
| Conductor | Tin-plated stranded copper, 107.22 mm² |
| Insulation | PVC |
| Cable Diameter | 19.5 mm |
| Terminals | DTF120 (M10) |
| Lengths Offered | 2000 mm or 1000 mm, red (+) and black (-) |
Specifications are from the manufacturer and may change. Questions? Call (888) 831-0450.
Warranty Information
For warranty details on this item, call (888) 831-0450 or email Sales@skysolarusa.com.
Manufacturer warranties are provided by the manufacturer. Keep your invoice as proof of purchase. Questions about a warranty claim? Call (888) 831-0450.
