- Pytes high-voltage combiner box accessory

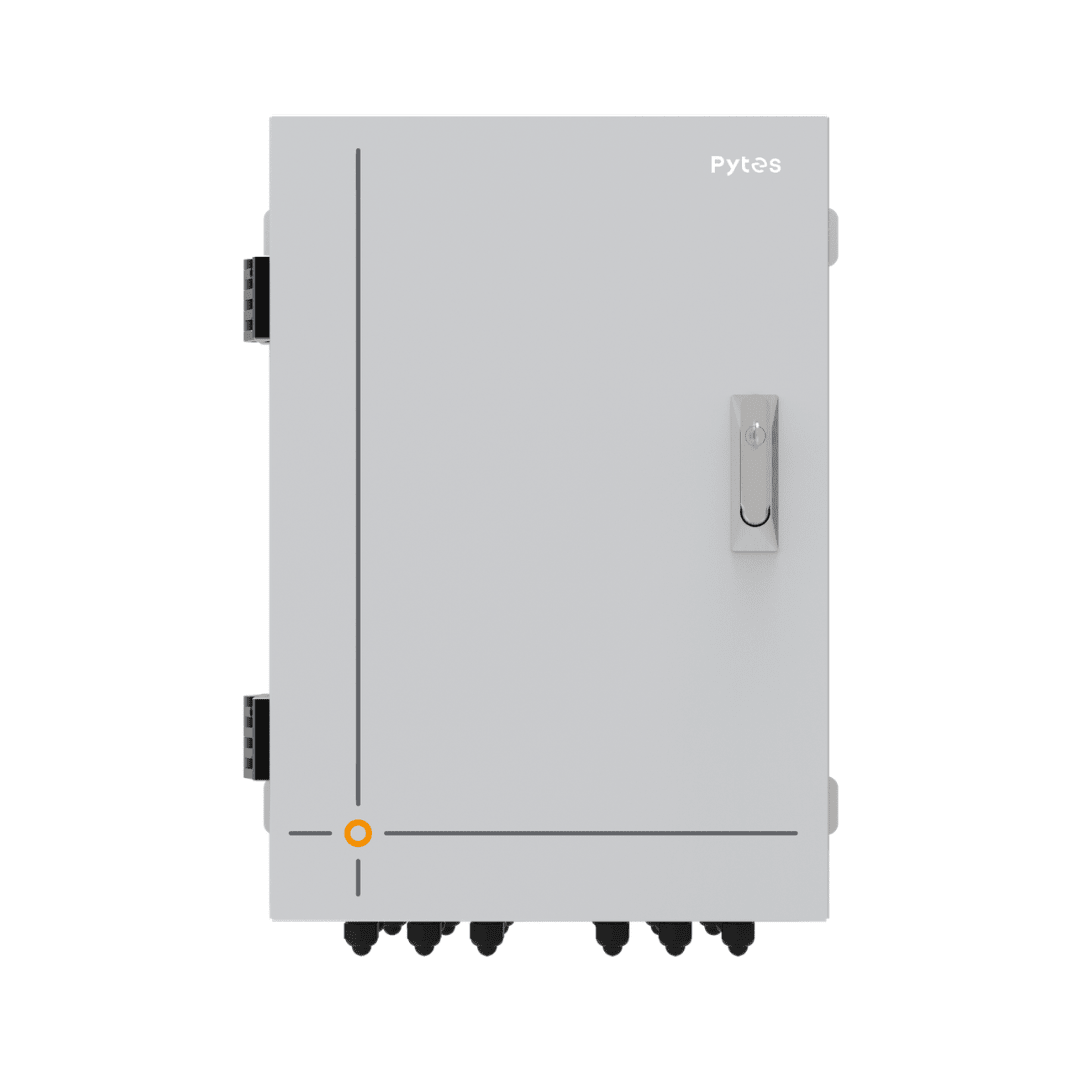

The Pytes HV C01 Combiner Box gives Pytes HV Series battery systems one central, organized connection point. Its IP65 outdoor enclosure houses an integrated 300A busbar and a 325A breaker, both rated to 1000VDC, for clean, protected and scalable high-voltage installs.
Highlights
- Simplified connections: combines multiple HV battery strings in one enclosure
- Integrated protection: 300A / 1000VDC busbar and 325A / 1000VDC breaker
- Outdoor ready: IP65 against dust and water
- Easy wiring: six M6 battery studs and three M6 inverter studs
Specifications
| Compatible with | Pytes HV Series batteries |
| Busbar | 300A, 1000VDC |
| Breaker | 325A, 1000VDC |
| Connections | 6× M6 battery, 3× M6 inverter |
| Enclosure | IP65 |
| Dimensions | 16.93 × 24.41 × 9.33 in (430 × 620 × 237 mm) |
| Weight | 55 lbs |
| Model | HV C01 DC combiner box (for Pytes HV series) |
|---|---|
| Max. Operating Current | 300 A |
| Breaker Rated Current | 325 A |
| Battery Voltage Range | max. DC 1000 V |
| Battery Inputs | 12 (6 positive + 6 negative), M6 terminals |
| Outputs | 6 (3 positive + 3 negative), M6 terminals |
| Recommended Torque | M6 3.5 N·m; M10 20 N·m |
| Enclosure | IP65 |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -20°C to +80°C |
| Relative Humidity | 0-95% |
| Altitude | <2000 m |
| Cooling | natural |
| Dimensions (W x D x H) | 430 x 620 x 237 mm (16.9 x 24.41 x 9.33 in, 3.2U) |
| Weight | 25.26 kg (55.69 lb) |
Specifications are from the manufacturer and may change. Questions? Call (888) 831-0450.
